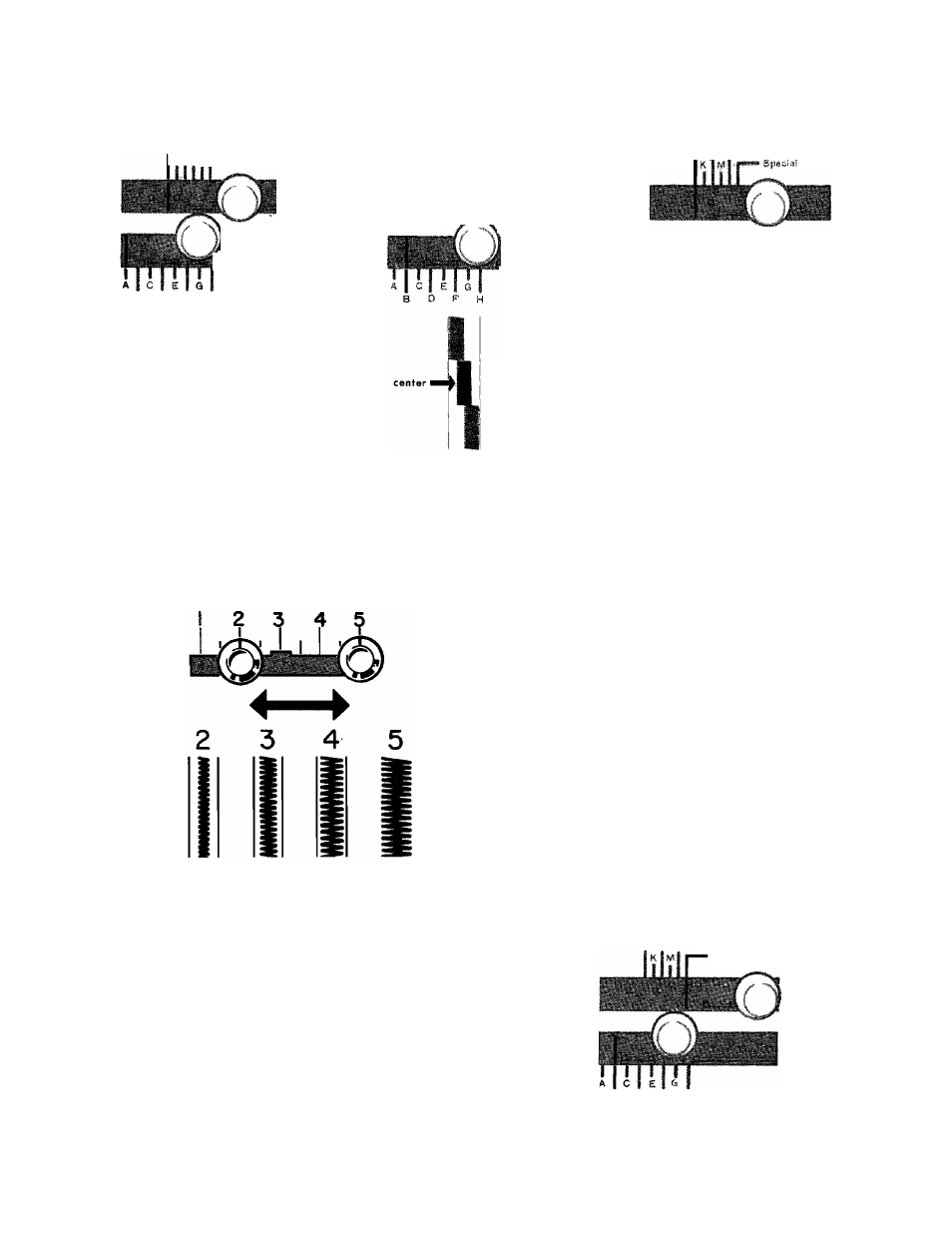

Lower Stitch Pattern Selector
J L N
K| Sli special
J U . N
B 0 F H
Left
AJ 3
I -_Oa
«El
BJ 3
■J k ^ ■
A
I
C
I
E
I
G
I
B 0 F H
Right
CJ 3
In basic patterns, the Lower Stitch Pattern Selector controls stitch placement. Selector setting of B
places stitching in center needle position. Selector settings A and C place the stitching in left and right
needle positions at stitch widths less than 5. Selector setting B is preferred for ordinary stitching.
Control of Stitch Width Selector
Width of zigzag stitch is controlled by the stitch width
selector. As the selector is moved to the right, the
width of zigzag stitch is increased.
To avoid damage to needle and fabric, raise needle
above fabric before moving the selector.
SPECIAL DISCS
vJ L N
Upper Stitch Pattern Selector:
Special
Lower Stitch Pattern Selector :
A, B, C
Stitch Width Selector:
2—^5
Throat Plate :
General Purpose
Presser Foot:
General Purpose or Special Purpose
Special
B O F H
