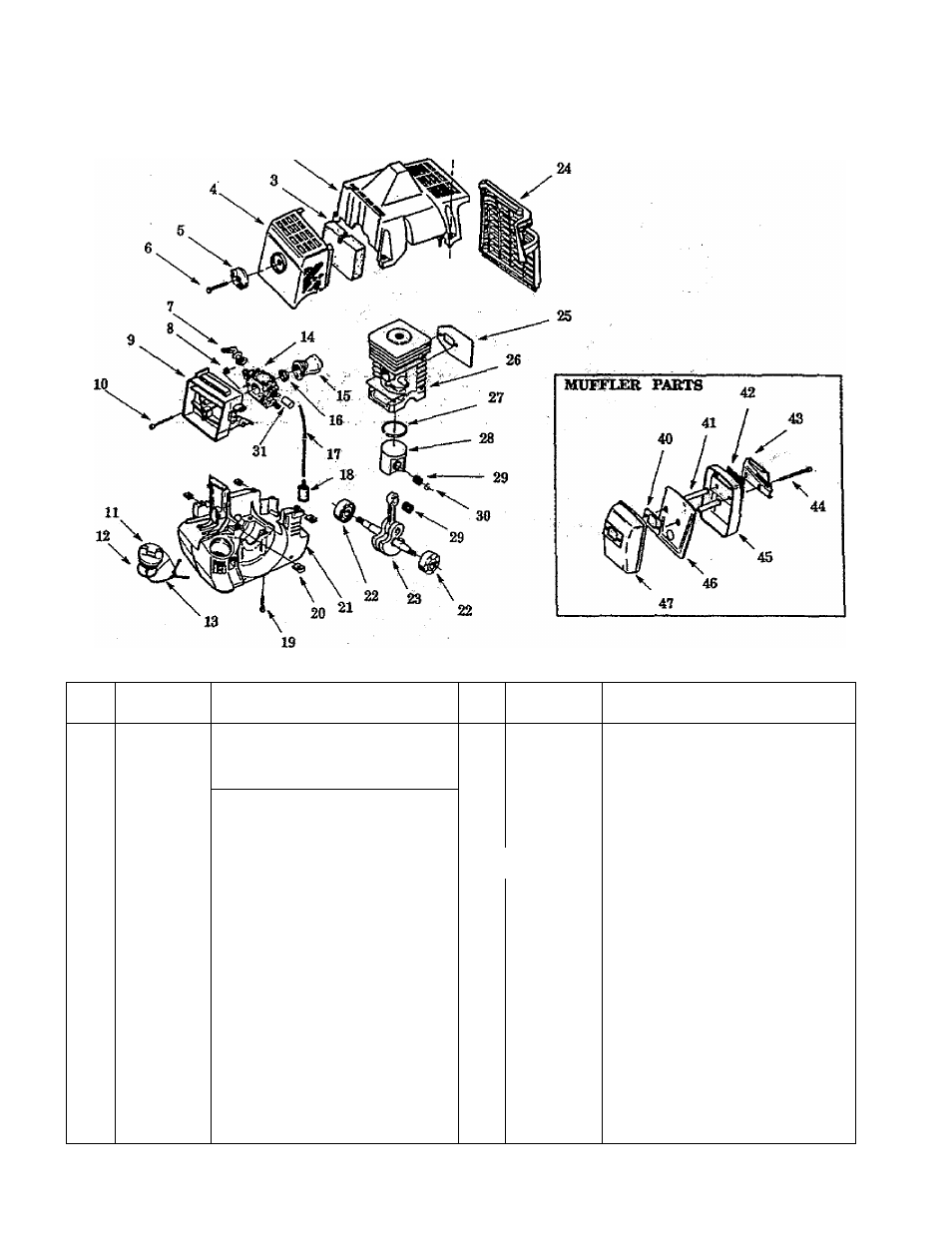

REPAIR PARTS
SEARS BRUSHWACKER™ - MODEL 358.798280
ENGINE
9
1------------
Key
No.
Part
.
No.
Description
Key
No,
Part
No.
Description
1
503-214425
Screw
26
503-694601
Cylinder & Piston Assy
2
502-218401
Cylinder Cover
27.^. 29 & 30)
3
502-198601
AirFilter
27
503-289001
Piston Ring
4
502-218602
Air Filter Cover
28
503-686402
Piston (hicL 27)
5
502-208302
Air Filter Knob
29:
503-414101
Needle Bearings
6
502-206501
Screw
30
737-441000
Retaining Clip
7
502-208402
Choke Lever
31
503-797501
Guide Tube
8
732-211401
Nut
9
502-19^01
Air Rlter Housing
Muffler narts
10
503-210747
Screw
11
502-088301
Fuel Cap Assy (Incl. 12 & 13)
40
502-207701
Muffler Reinforcement plate
12
501-278201
“0" Ring / Gasket
41
502-216101
Distance Pipe
13
503-578901
Fuel Cap Retainer
42
502-200001
Spark Arrestor Screen
14
503-281505
Carburetor Assy.
43
502-208901
Muffler Screen Cover
15
502-198401
Intake Pipe
44
503-200265
Screw
16
502-212301
Support Sleeve
45
502-196201
Muffler Cover
17
502-210601
Fuel Line
46
502-199901
Baffle Plate
18
530-014199
Fuel Filter
47
502-199801
Muffler Body
19
725-637255
Screw
20
503-226301
Clip
21
502-215304
Crankcase Assy
22
502-212701
Crankcase Bearing
23
502-212801
Crankshaft & Rod Assy.
0ncl.2of22andlof31)
24
502-208201
Heat Shield
25
502-208801
Muffler Gasket
