OPERATION

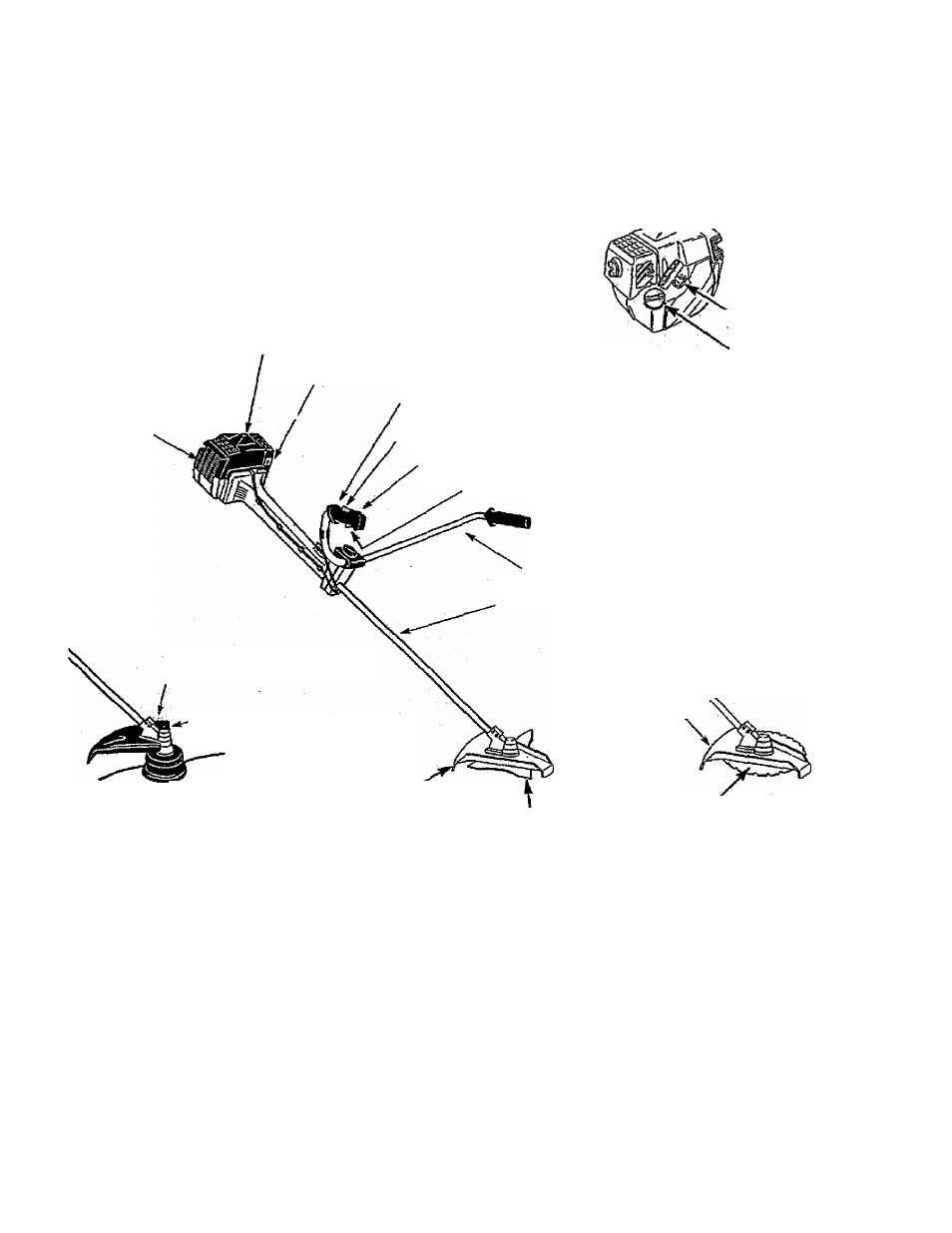

KNOW YOUR BRUSHWACKER (See Fig. 16)
READ THIS OPERATOR’S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR BRUSHWACKER. Compare
the illustrations with your unit to familiarize yourself with the location of the various controls and adjustments. Save this
manual for future reference.
AIR FILTER--- —►
(INSIDE)
SPARK PLUG
(INSIDE)
СНОПЕ LEVER |\!
MUFF1ER&
GUARD
THROTTLE HANDLE
THROTTLE LOCKOUT
ENGINE SWITCH 0
THROTTLE TRIGGER
HANDLEBAR
TUBE
PLASTIC LINE
TRIMMER SHIELD
- LINE LIMITER
(on under^de of 3hield)
(Back Side)
STARTER ROPE
HANDLE
FUELCAP
METAL BLADE
SHIELD
\
DUAL UNE HEAD
METAL BLADE
SHIELD
BRUSH TRI BLADE
SAPLING SAW BLADE
CUTTING LINE HEAD
CONFIGURATION
BRUSH BLADE
CONFIGURATION
SAW BLADE
CONFIGURATION
The ENGINE SWITCH has a stop position.
Figuréis
The THROTTLE TRIGGER controls engine speed.
The STARTER ROPE HANDLE is used for starting the
engine.
The CHOKE LEVER provides additional fuel to the engine
itfhen starting a cold engine.
The THROTTLE LOCKOUT prevents the THROTTLE
TRIGGER from being squeezed accidentally.
The DUAL LINE CUTTING HEAD is designed to (^t grass
and light weeds.
The BRUSH TRI-BLADE is designed to cut grass, weeds,
and brushy vines up to 1/2 inch in diameter.
The SAW BLADE is designed to cut grass, weeds, and
woody brush and small trees up to 21/2 inches in diameter.
