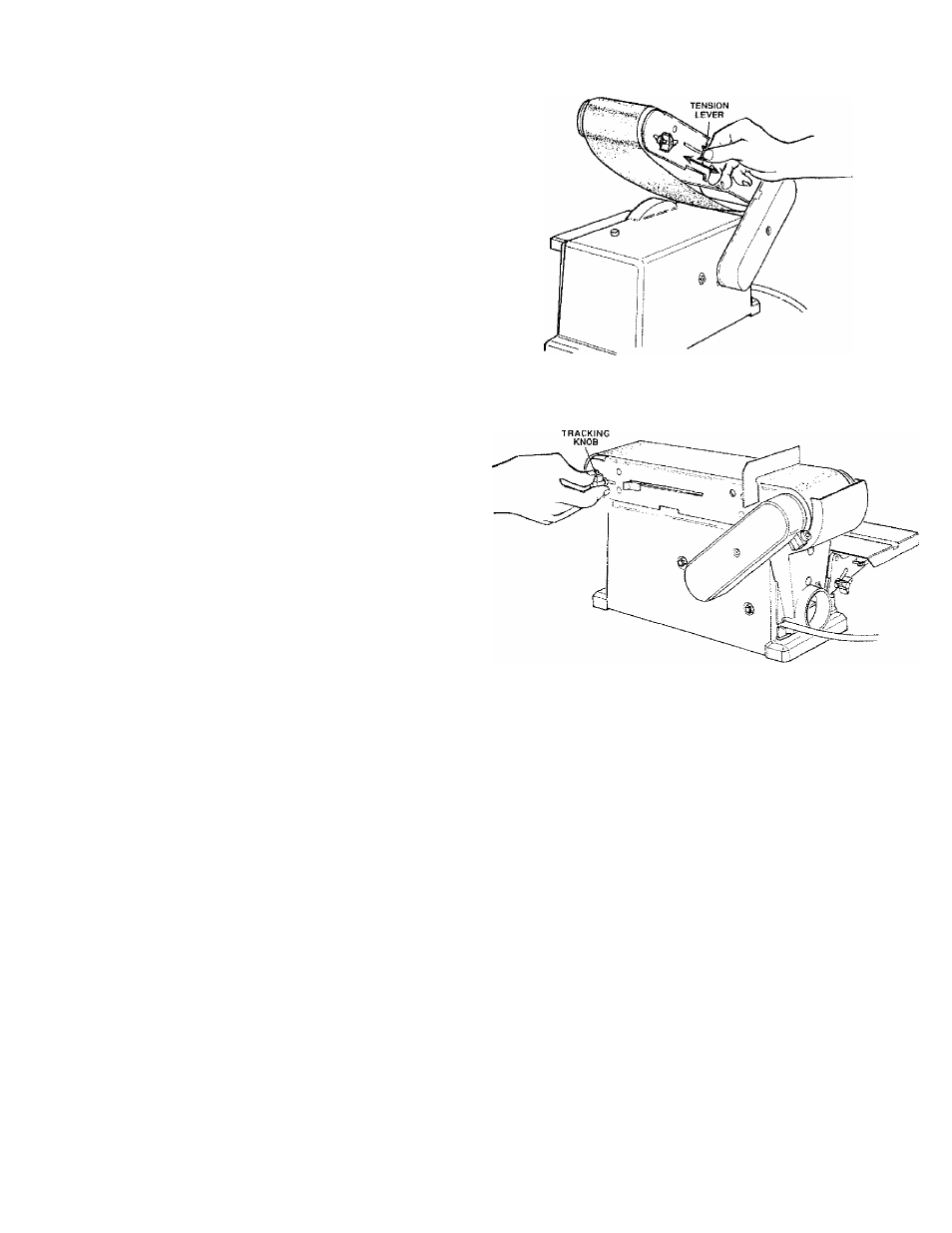

3. Slide tension lever to the left to apply belt tension.

4. Tighten hex socket screw when bed is in desired

position,

5. Plug inthe power cord. Turn switch “ON” and imme

diately “OFF,” noting it the belt tends to slide off the
idler pulley or drive pulley. If it did not tend to slide off,

it is TRACKING properly.

6. If the sanding belt moves toward the disc, turn the

tracking knob clockwise 1/4 turn.

7. If the sanding belt moves away from the disc, turn the

tracking knob counterclockwise 1/4 turn.

8. Turn switch “ON” and immediately "OFF” again, not

ing belt movement. Readjust tracking knob if neces

sary.
