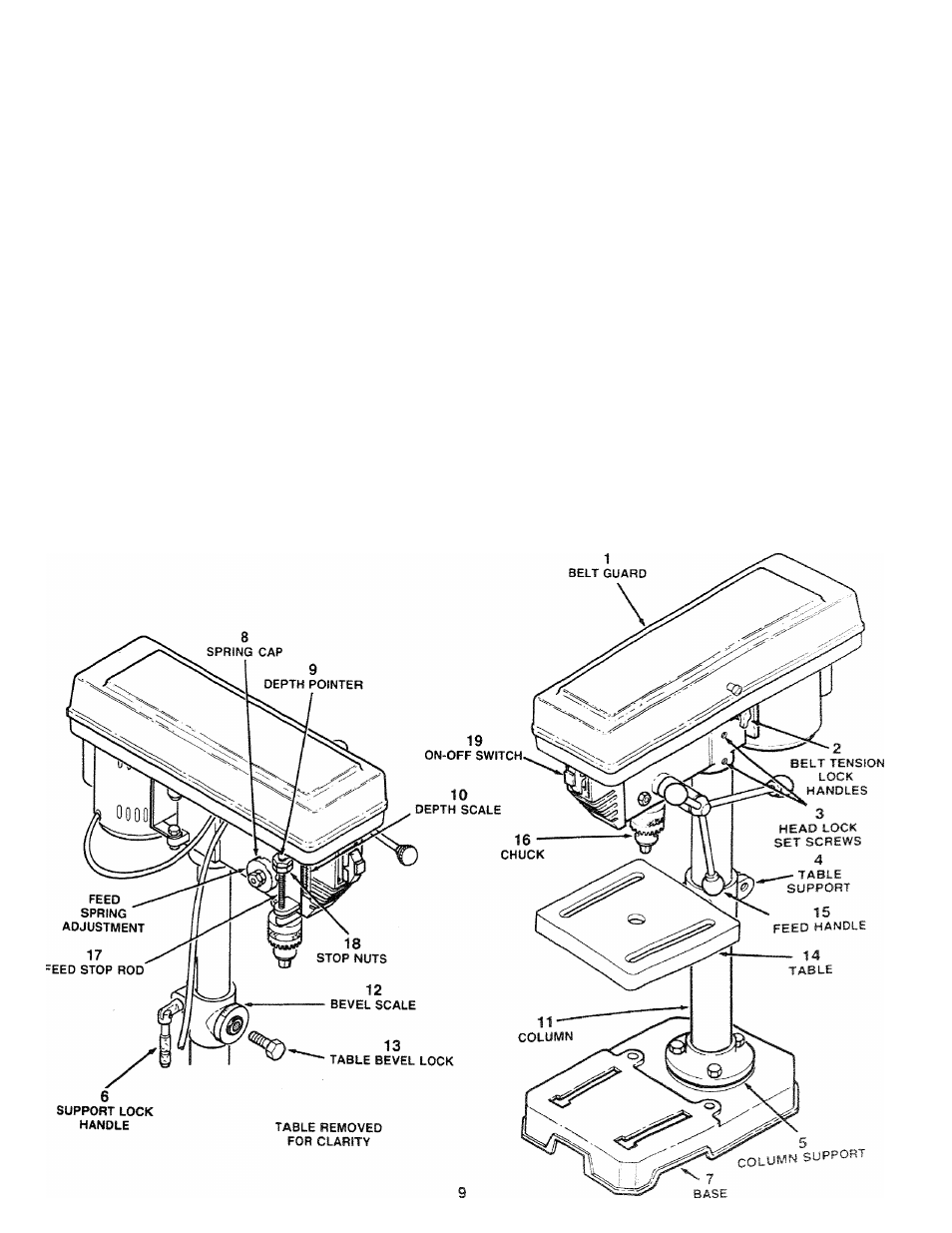

location and function of controls
1. BELT GUARD . . . Covers pulleys and belt during
operation of drill press.
2. BELT TENSION LOCK HANDLES . .. Tightening
handles locks motor bracket support to maintain
correct belt distance and tension.
3. HEAD LOCK SET SCREWS . . . Locks the head
to the column. ALWAYS have them locked in place
while operating the drill press.
4. TABLE SUPPORT... Rides on column to support
table.
5. COLUMN SUPPORT . . . Supports column and
provides mounting holes for column to base.
6. SUPPORT LOCK HANDLE . . . Tightening locks
table support to column. Always have it locked in
place while operating the Drill Press.
7. BASE ... Supports Drill Press. For additional sta­
bility, holes are provided in base to bolt Drill Press
to bench. (See “Additional Safety instructions for
Drill Presses").
8. SPRING CAP . . . Provides means to adjust quill
spring tension.
9. DEPTH POINTER .. . Indicates drilling depth and
is located between stop nuts.
10. DEPTH SCALE . . . Shows depth of hole bearing
drilled in inches and millimeters.
11
COLUMN . . . Connects head, table, and b
a one-piece tube for easy alignment ann
ment. move
12. BEVEL SCALE . . . Shows degree table ,s tv,.,
for bevel operations. Scale is mounted on
support.
13. TABLE BEVEL LOCK
. . .
Locks the tabin
, p
position from 0'-45v ' f
14. TABLE
. . . Provides working surface to son-,.,
workpiece.
15. FEED HANDLE . . . For moving the chuck un .n-
down. One or two of the handles may be remov^
if necessary whenever the workpiece is of such
unusual shape that it interferes with the hancfles
CHUCK . . . Holds drill bit or other recommended
accessory to perform desired operations
""
FEED STOP ROD . . . Holds stop nuts for dnllino
to specific depths.
STOP NUTS . . . Limits the downward movement
of the quill at any desired point within its travel
and prevents the pointer from moving upward
19. ON-OFF SWITCH . . . Has locking feature, this
feature is intended to prevent unauthorized and
possiable hazardous use by children and others.
16.
17.
18
