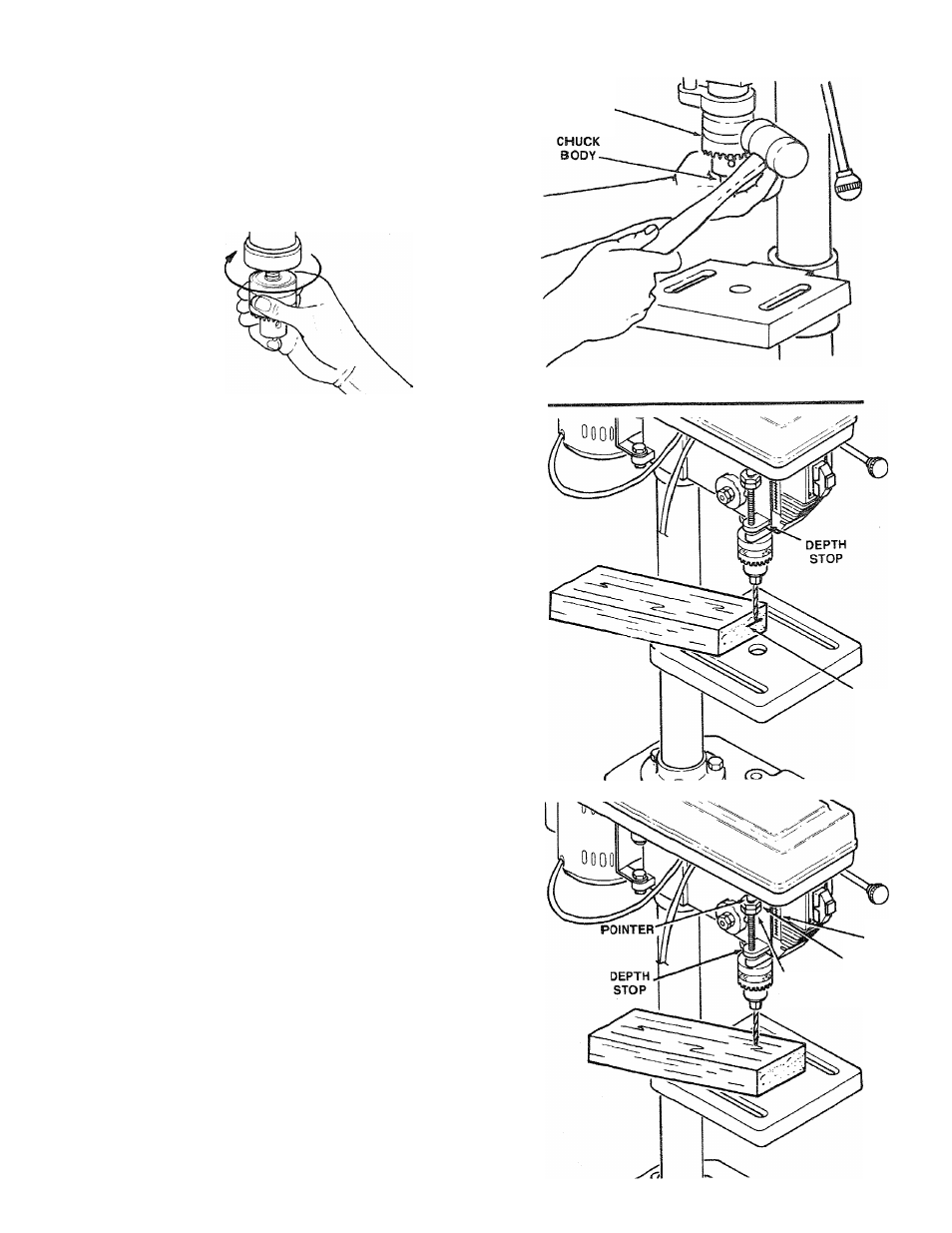

REMOVING THE CHUCK

Open jaws of chuck as wide as they will go by
turning chuck sleeve.

Carefully tap chuck with mallet in one hand while
holding chuck in other hand to prevent dropping it
when released from spindle nose.

SLEEVE

CHUCK

DRILLING TO DEPTH

To drill a BLIND hole (not all the way through) to a
given depth, can be done two ways.

1. Mark the depth of the hole on the side of the work

piece.

2. With the switch OFF bring the drill down until the

TIP or lips are even with the Mark.

3. Spin the lower nut down to contact the depth stop

lug on the Head.

4. Spin the upper nut down and tighten against the

lower nut.

MARK

ANOTHER WAY - DEPTH SCALE

1. Turn the switch off.

2. Turn the feedhandle until the pointer points to the

desired depth on the depth scale.

3. Hold the feed handle at this position.

4. Spin the lower stop nut down until it touches the

depth stop.

5. Spin the upper stop nut down against the lower

stop nut and tighten.

6. The chuck or drill will now be stopped after traveling

downward the distance selected on the depth

scale.

DEPTH
SCALE

UPPER

LOWER STOP NUT
STOP NUT
