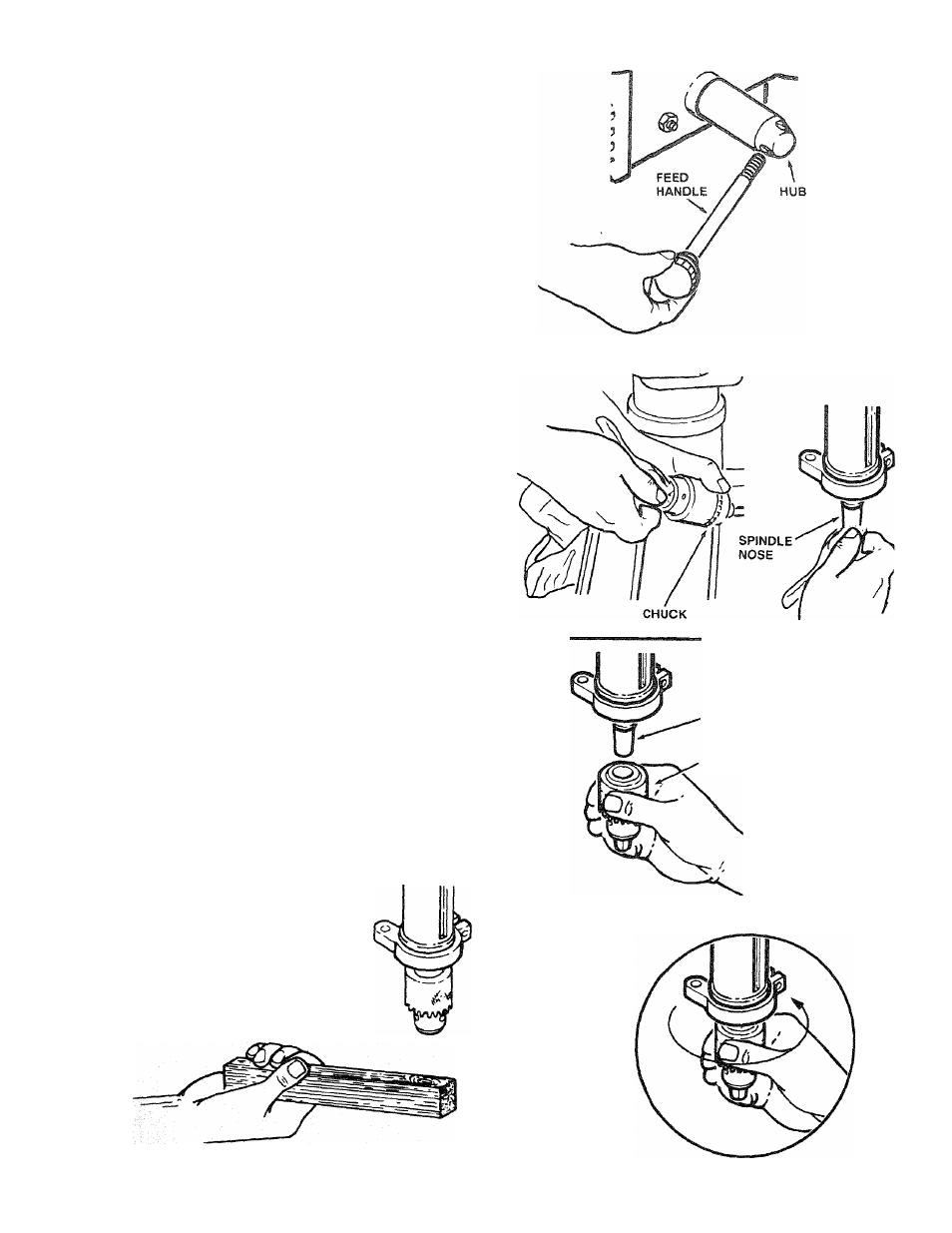

INSTALLING FEED HANDLES

1 - Locate three (3) feed handles among loose parts.

2 Screw the feed handles tightly into the threaded

holes in the hub.

INSTALLING THE CHUCK

1. Locate the chuck among loose parts.

2. Clean out the TAPERED HOLE in the chuck; clean

the spindle nose with a clean cloth. Make sure
there are no foreign particles sticKing to the sur

faces. The slightest piece of dirt on the spindle
nose or in the chuck will prevent the chuck from
seating properly. This will cause the drill to
“wobble."

NOTE: If TAPERED HOLE in the chuck is ex

tremely dirty, use a cleaning solvent on the clean
cloth.

3. Push the chuck up on the spindle

nose

as far as

it will go.

4. Turn chuck sleeve clockwise and open jaws in

chuck completely.

5. Lightly tap the nose of the chuck with a piece of

wood to insure proper seating of the chuck on the
spindle.

SPINDLE

NOSE

CHUCK

SLEEVE
