5mm DIA. x 12mm LONG
Cr'£3l=\Ai
BELT GUARD KNOB

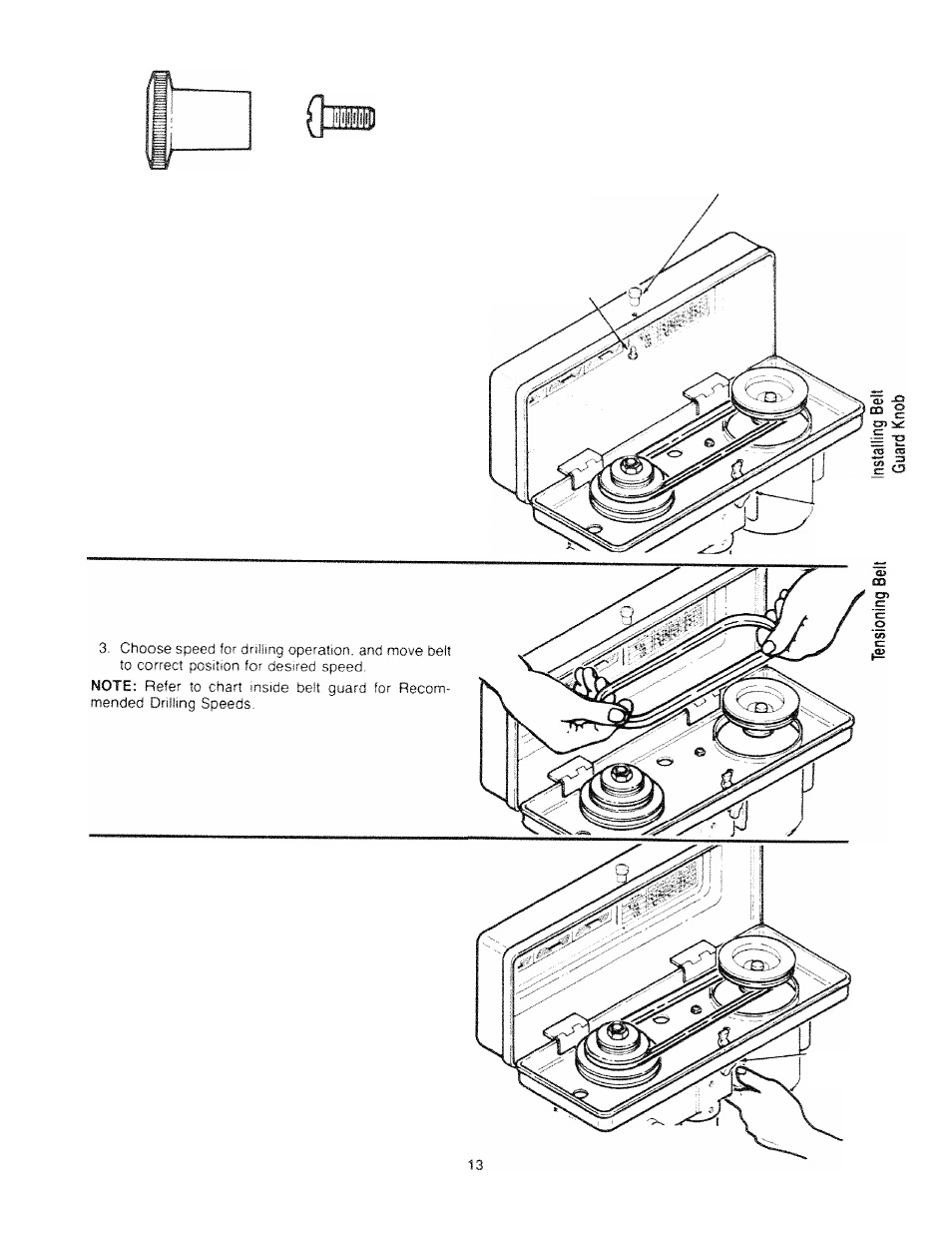

INSTALLING BELT
GUARD
KNOB
1. To attach belt guard knob, locate knob and 5mm
Dia, X 12mm long pan hd, screw in loose parts baq,
Instal! screw in hole located in guctrd and attach
knob turning until tight.
WARNING;
TO
AVOID
POSSIBLE
INJURY
KEEP
GUARD
IN
PLACE
AND
IN
PROPER
WORKING
ORDER WHILE OPERATING.
TENSIONING BELT
NOTE: The Drill Press is shipped with the belt installed,
but it should be properly tensioned before use,
1, Lift guard from right Side and leave opened on
hinges
2. Release Beit T ension Lock Handle located on right
side of Drill Press head. Pull right side of motor
toward front of drill press to relieve spring tension
on belt. Tighten the belt tension lock handle,
BELT GUARD KNOB
PAN HO. SCREW
BELT
TENSION
LOCK
HANDLE
4. Loosen belt tension lock handle and move right
side of motor rearward to apply tension to the belt.
5. Tighten Belt Tension Lock Handles.
NOTE: Belt SHOULD deflect approximately 1/2" by
thumb pressure at mid-point of belt between pulleys,
6. Close belt guard.
7. If belt slips while drilling, readjust belt tension.
BELT TENSION
LOCK HANDLE
