ADJUSTING THE TABLE SQUARE TO

HEAD

NOTE: The combination square must be “true.” See

the beginning of the “Assembly” section for a method
to check four square.

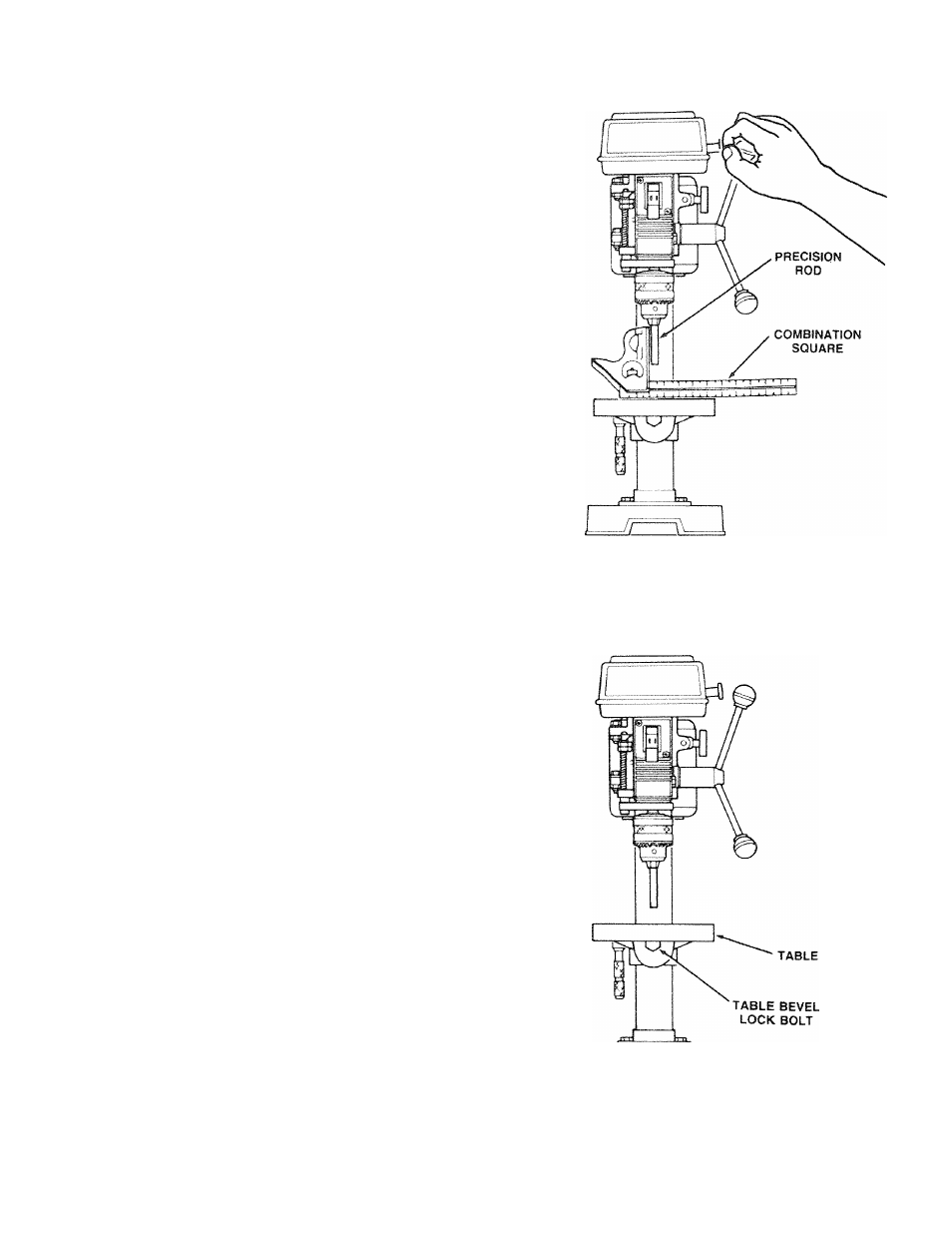

1. Insert precision round steel rod approximately 3”

long into chuck and tighten.

2. With table raised to working height and locked on

column, place combination square flat on table be
side rod.

3. If an adjustment is necessary, loosen the table

bevel lock bolt with adjustable wrench. (This adjust
ment is located under the table).

4. Align the table square to the rod by tilting table.

5. Retighten table bevel lock bolt.
