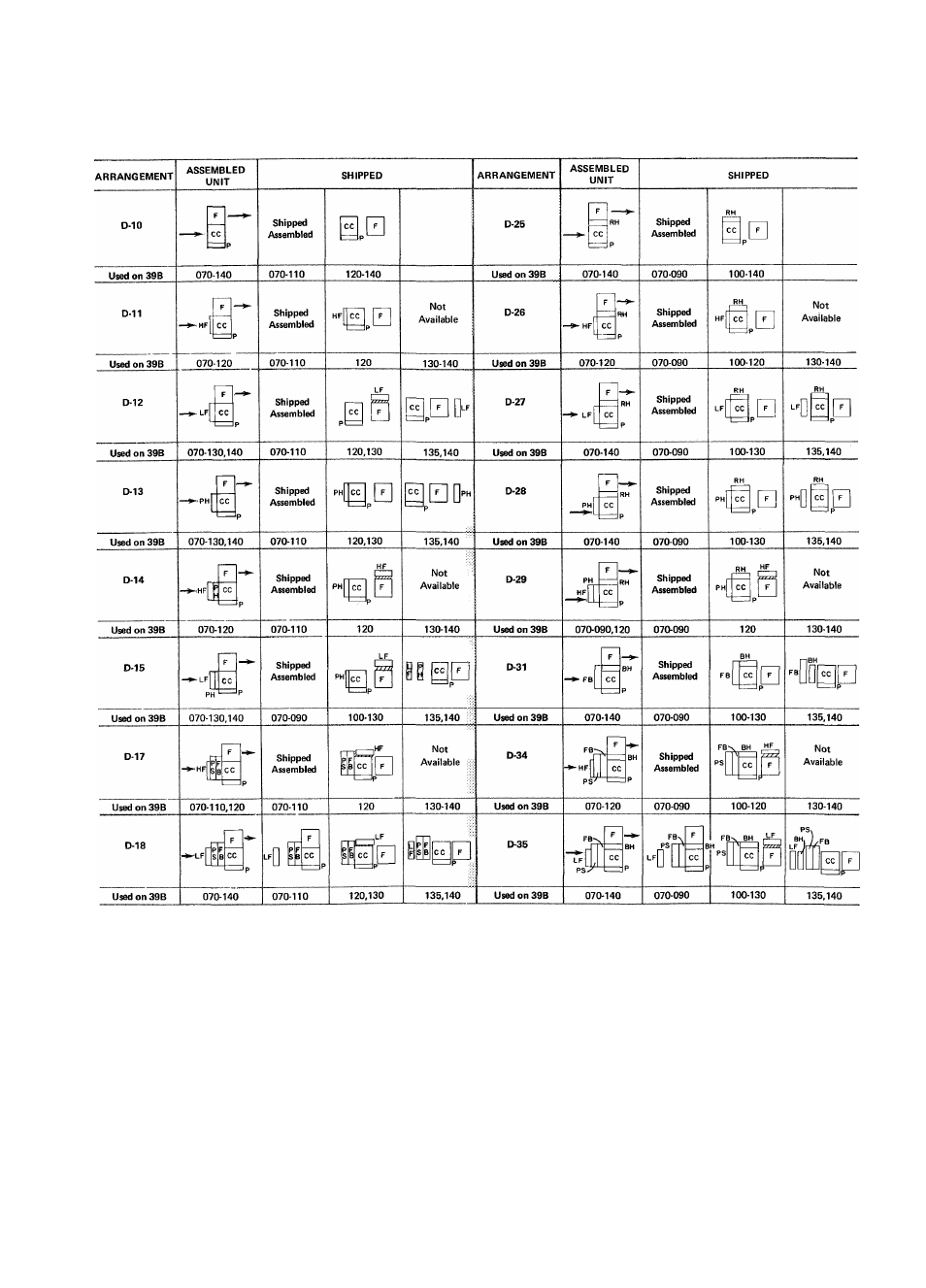

Table 3 — 39B Type "D" Unit Arrangements (Vertical)
Base unit and accessories on 39BA, sizes 040 thru 060 are shipped completely assembled.
LEGEND
BH
- Bypass Heat Section
LF — Low-Velocity Filter Section
CC
— Cooiing Coil Section
P
— Base Pan
F
— Fan Section
PH — Preheat Coil Section
FB
— Face & Bypass Damper Section
PS — Plenum Section
HF
— High-Velocity Filter Section
RH — Reheat Coil Section
NOTE: Combination mixing box and filter assembly (MB), not shown, is shipped separately.
□ □ Separate Crates or Skids
Location for Shipping only on one Skid
