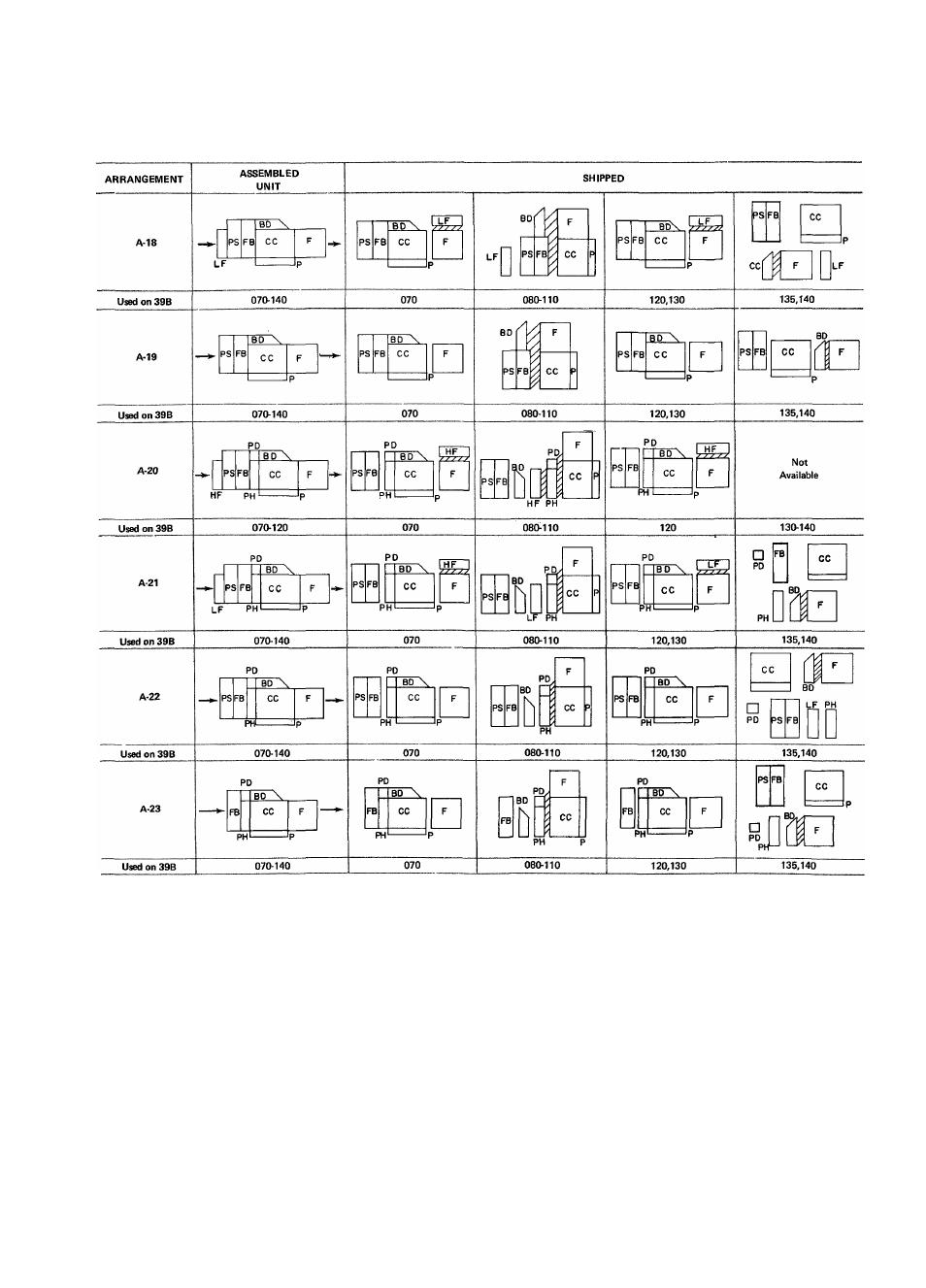

Table 1 — 39B Type "A" Unît Arrangements (Horizontal With Reheat) (cont)
Base unit and accessories on 39BA, sizes 040 thru 060 are shipped completely assembled.
r
LEGEND
BD — Bypass Duct
CC — Cooling Coil and Reheat
Coil Section
F — Fan Section
FB — Face & Bypass Damper Section
NOTE: Combination mixing box and filter assembly (MB), not shown, is shipped separately.
HF — High-Velocity Filter Section
LF — Low-Velocity Filter Section
P — Base Pan
PD — Preheat Duct Extension
PH — Preheat Coil Section
PS — Plenum Section
Separate Crates or Skids
Location for Shipping only on one Skid.
