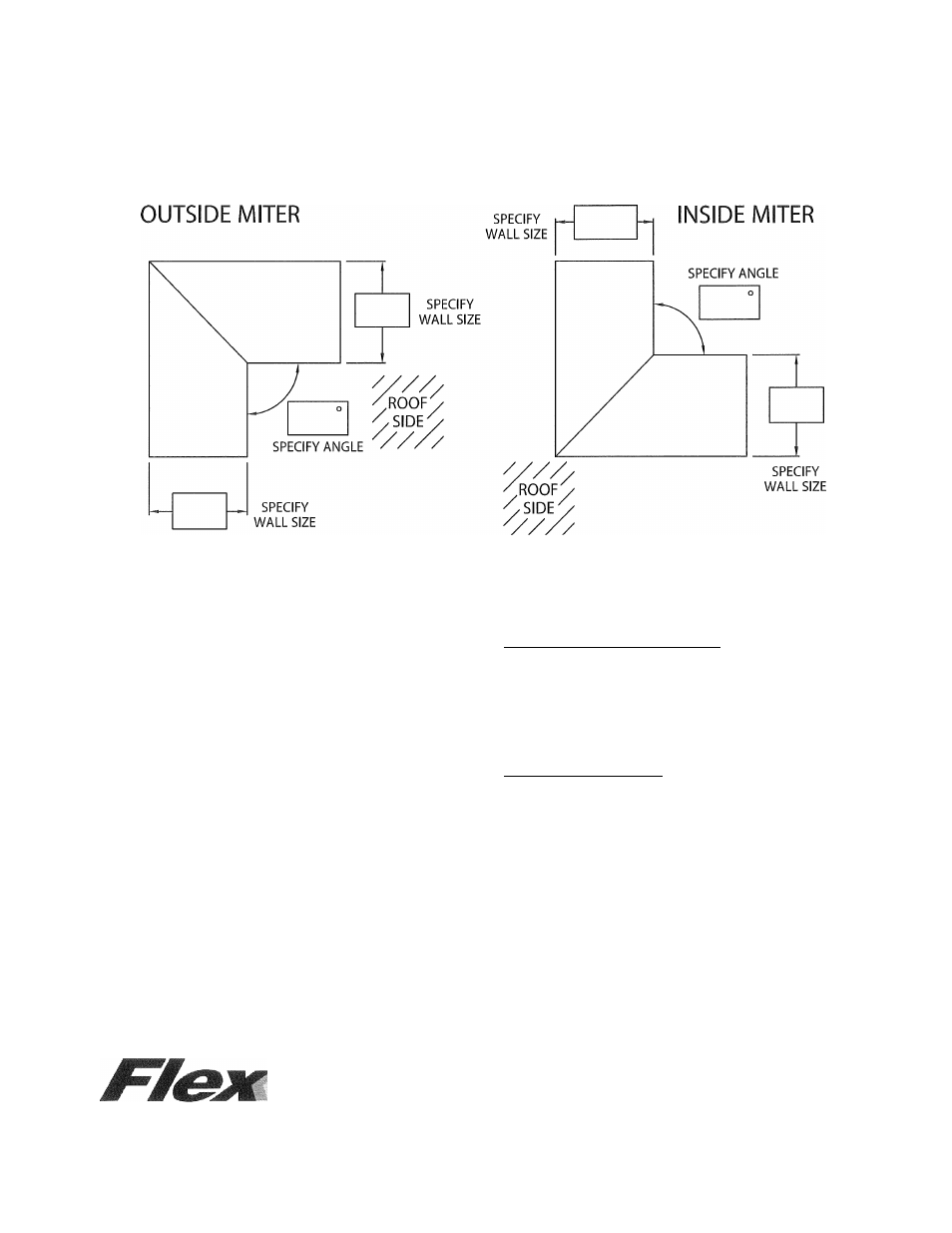

COPING TRANSITION MITERS
□ Standard Leg Lengths
□ Custom Leg Lengths _
□ Standard Leg Lengths
□ Custom Leg Lengths _
NOTES:
-- Concealed splice plates are provided with factory
applied dual non-curing sealant strips.
- Unless otherwise noted, fabrication of miters and accessories are
furnished standard utilizing a non-penetrating quicklock joint,
then factory sealed watertight.
Fabrication will proceed only after receipt of
signed print approval.
Print Approval:
Architect and/or contractor shall verify all
dimensions, sizes and quantities. All
products to be installed in strict accordance
with Flex's printed instructions.
Approved by:
Date: _____
■ Welded Miters and Accessories
Check one □ Required (surcharge) □ Not applicable
MATERIAL:
__ 24 Ga. (.65 mm) Steel
040" (1.01 mm) Alum. Color:
__ .050" (1.27 mm) Alum.
__ .063" (1.60 mm) Alum. Finish:
Other
QUANTITIES:
Outside Miter(s) @
Inside Miter(s) @ L
PROJECT:
ARCHITECT:
ROOFING CONTRACTOR:
REPRESENTATIVE/DISTRIBUTOR:
Customer Service:
Phone: 800-969-0108
Fax:610-916-9501
DATE: 12/13/10
DRN BY: JJC
CKD BY: SAK
SHT# OF
DWG# 28011-3474
c
print approval
86
