Carrier

INSTALLATION

26H

7. MOVE THE BIN TO APPROXIMATE

LOCATION

Move the bin as close as possible to the final lo
cation before placing the machine section on top

of it.

8. UNCRATE THE MACHINE SECTION

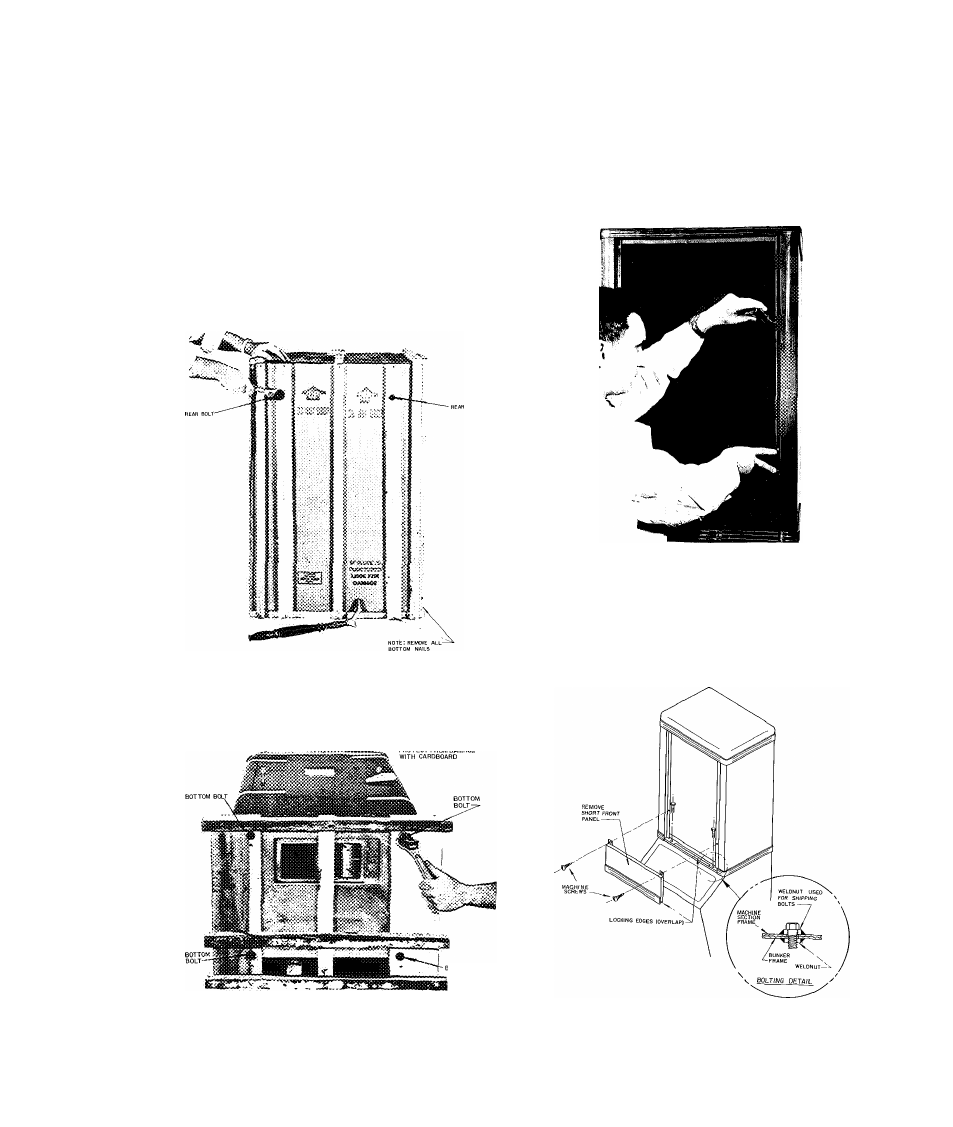

Uncrate the machine section as shown in Figs. 3

and 4.

FIG. 3 - UNCRATING - REAR BOLTS

BOTTOM BOLT

9. REMOVE THE FRONT TOP, AND SIDE

PANELS

Remove the front, top, and side panels in that order
before moving the machine section.

FIG. 5 - REMOVING SCREWS HOLDING TOP

AND SIDE PANELS

10. PLACE MACHINE SECTION ON TOP OF BIN

AND BOLT IN POSITION

Remove the short front panel. Using the two cap
screws in the cloth bag shipped with the bin, bolt
the machine section in place as shown in Fig. 6.

FIG. 4 ■ UNCRATING - BOTTOM BOLTS

FIG. 6 - BOLTING MACHINE SECTION TO BIN

26H-57PD
