3
BACnet System Overview
Viconics VZ7260 zone controllers are used in conjunction with the VZ7656 roof top controllers. Combined, they
are designed for operate typical single or multistage RTUs and their associated local zones.

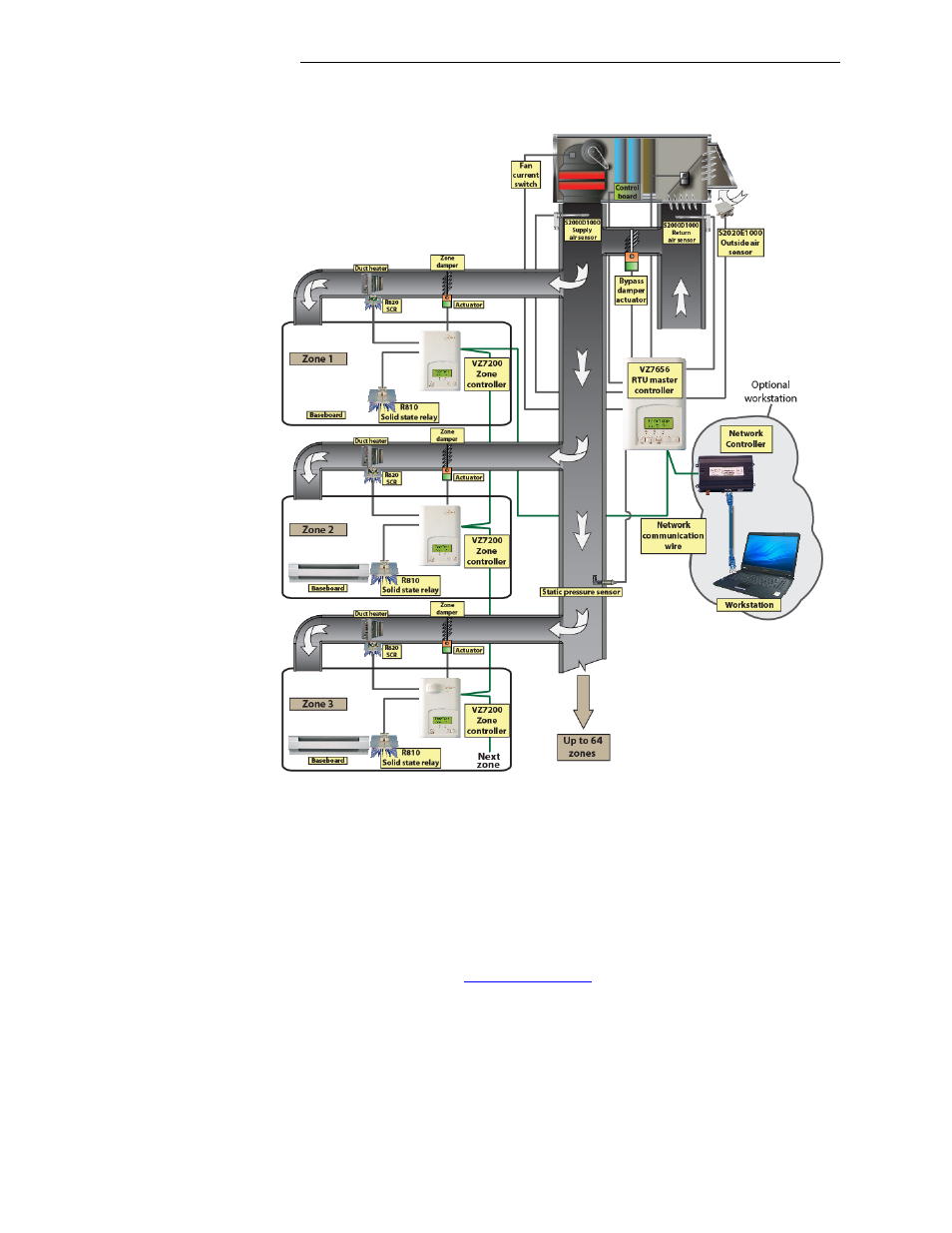

Typical BACnet zoning system installation
Please refer to the following Viconics documents for detailed information and design guidelines for the BACnet
zoning system version:
As an example, a typical job layout system may feature three RTU controllers with thirty one total zones. This
would bring to total number of nodes (individual Com addresses) to thirty four. RTU one would have ten zones
under its command, RTU two would have ten zones under its command and RTU three would have eleven
zones under its command.
The additional following documents are available at: www.viconics.com

For detailed information on the Viconics Zoning System, please refer to the Zoning System Product
Guide. Installation and commissioning information is available in document: Zoning-System-Guide-Exx

For detailed information on the Viconics VZ72 Zone controller, please refer and read the VZ72 Product
Guide. Installation and commissioning information is available on document: LIT-VZ7260-Exx

For detailed information on the Viconics VZ7656 RTU controller, please refer and read the VZ76 Product
Guide. Installation and commissioning information is available on document: LIT-VZ7656-Exx

PIR cover installation information is available in document: PIR Cover Installation-Exx
