3-8
Catalyst 3750 Metro Switch Hardware Installation Guide
OL-9160-02
Chapter 3 Connecting the Power Supply
Connecting to DC Power
To insert an DC power supply into power supply slot A or B, follow these steps:
Step 1 Insert the power supply partially into the power slot (see Figure 3-9 ).

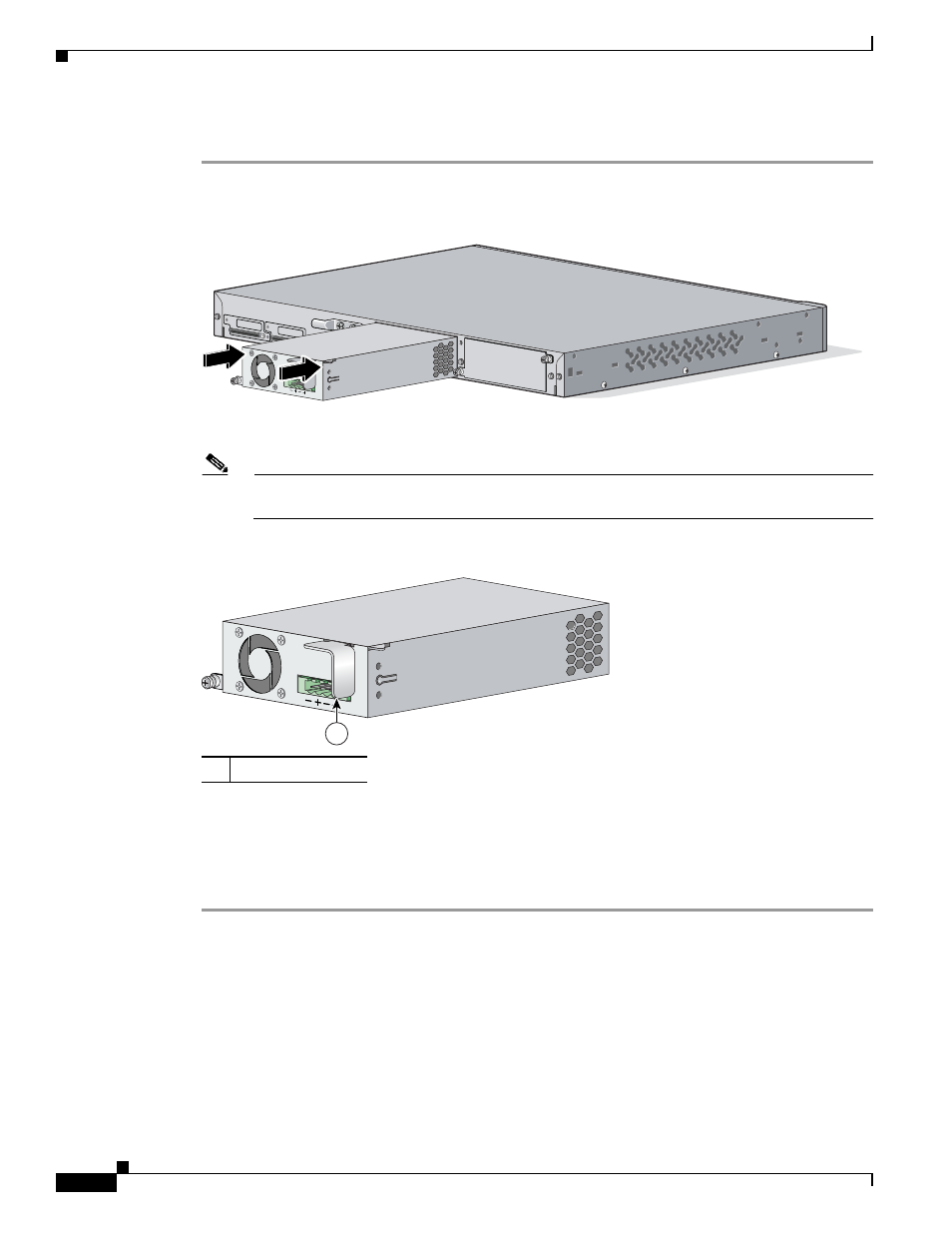

Figure 3-9 Inserting the DC Power Supply
Step 2 Slide the power-on restrictor to the left, toward the power connector (see Figure 3-10 ).
Note The power supply unit will not slide completely into the power slot if the terminal block is
already inserted into the terminal block plug.
Figure 3-10 DC Power-On Restrictor
Step 3 Slide the power supply unit the rest of the way into the power slot.
Step 4 Slide the power-on restrictor to the right to access the power connector (see Figure 3-10 ).
Step 5 Use a Phillips screwdriver to attach the screw at the lower-left and secure the power supply unit in the
switch chassis.
97465
STACK 1
STACK 1
1 Power-on restrictor
97469
1
