Page 27
2-9
Catalyst 3750 Metro Switch Hardware Installation Guide
OL-9160-02
Chapter 2 Switch Installation
Installing the Switch
Attaching Brackets to the Switch
The bracket orientation and the brackets that you use depend on whether you are attaching the brackets
for a 19-inch or a 24-inch rack. For 19-inch racks, use bracket part number 700-8209-XX; for 24-inch
racks, use bracket part number 700-13248-XX.
through
show how to attach each
type of bracket to one side of the switch. Follow the same steps to attach the second bracket to the
opposite side.

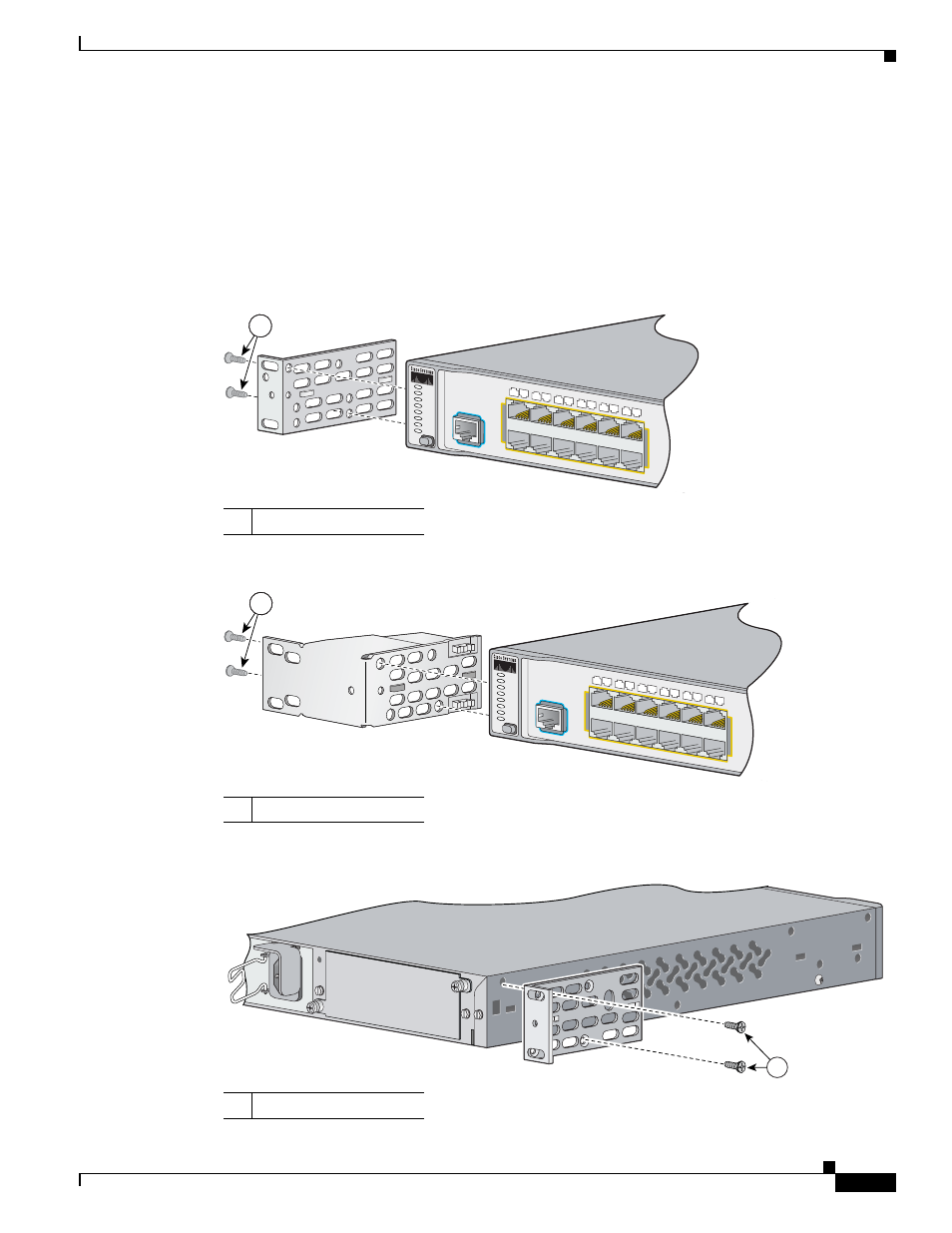

Figure 2-3
Attaching Brackets for 19-Inch Racks, Front Panel Forward
Figure 2-4
Attaching Brackets for 24-Inch Racks, Front Panel Forward
Figure 2-5
Attaching Brackets for 19-Inch Racks, Rear Panel Forward
1
Phillips flat-head screws
1
PWR A
SYST
PWR B
MASTR
STAT
DUPLX
SPEED
STACK
MODE
97429
1
2
3
4
5
6
7
8
9
10
11
12
1X
2X
11X
12X
CONSOLE
1
Phillips flat-head screws
1
97430
1
2
3
4
5
6
7
8
9
10
11
12
1X
2X
11X
12X
CONSOLE
PWR A
SYST
PWR B
MASTR
STAT
DUPLX
SPEED
STACK
MODE
1
Phillips flat-head screws
97431
1
