2-8
Catalyst 3750 Metro Switch Hardware Installation Guide
OL-9160-02
Chapter 2 Switch Installation
Installing the Switch
Rack-Mounting
To install the switch in a 19-inch or 24-inch rack (24-inch racks require optional mounting hardware),
follow the instructions described in these procedures:
• Removing Screws from the Switch, page 2-8
• Attaching Brackets to the Switch, page 2-8
• Mounting the Switch in a Rack, page 2-11
• Attaching the Cable Guide, page 2-12
Note Installing the switch in a 24-inch rack requires an optional bracket kit not included with the switch. You
can order a kit containing the 24-inch rack-mounting brackets and hardware from Cisco (part number
RCKMNT-1RU).
Removing Screws from the Switch
If you plan to install the switch in a rack, you must first remove the screws in the switch chassis so that
you can attach the mounting brackets.

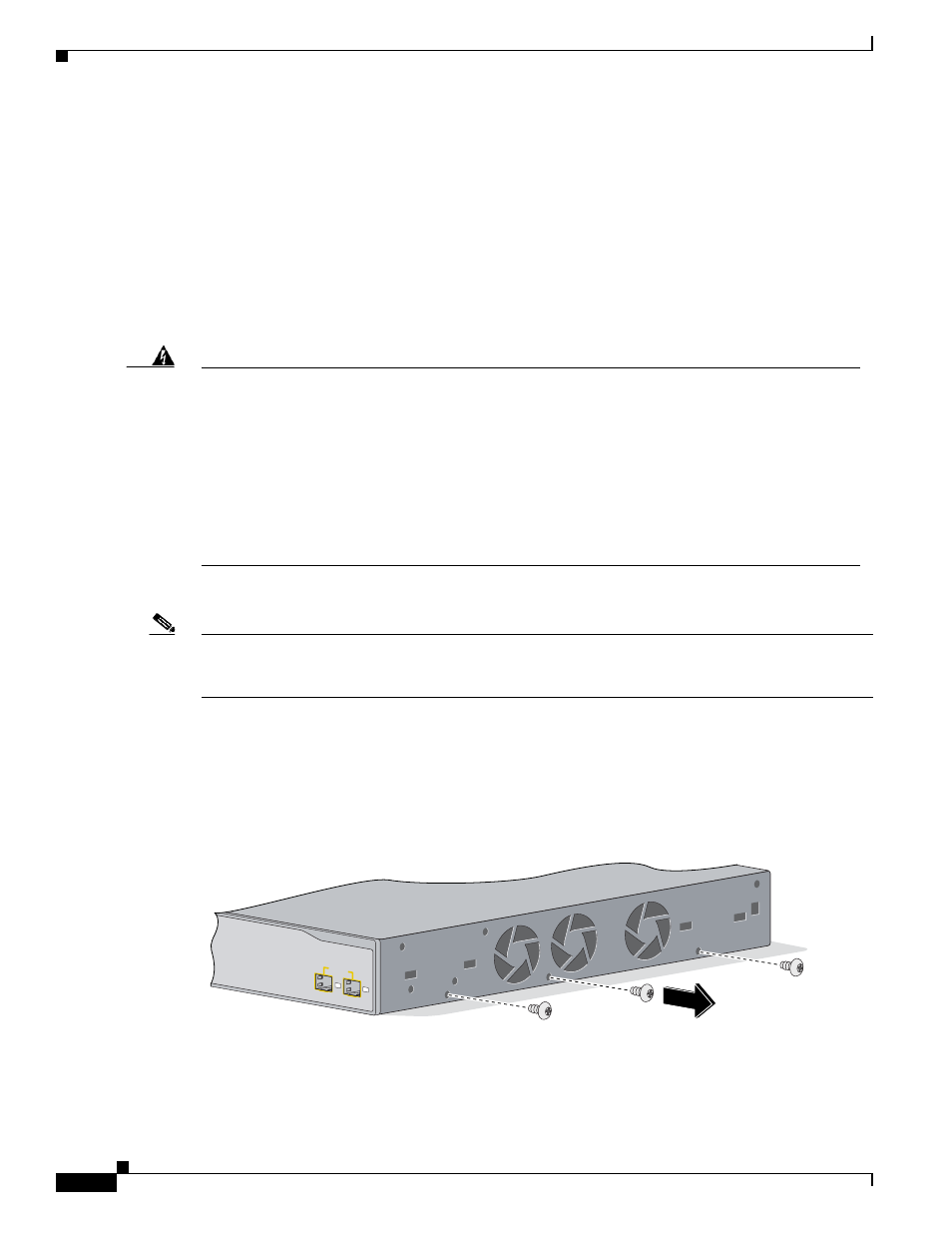

Figure 2-2 shows how to remove the chassis screws in a switch.
Figure 2-2 Removing Screws from the Switch
Warning To prevent bodily injury when mounting or servicing this unit in a rack, you must take special
precautions to ensure that the system remains stable. The following guidelines are provided to
ensure your safety:
• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest
component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in
the rack.
Statement 1006
97428
1
2
Catalyst 3750 Metro
series
ES POR TS
