Tii FDH1 User Manual
Page 14
14
Tii Network Technologies Inc. 2012
9.10.
Slack Storage
9.10.1.

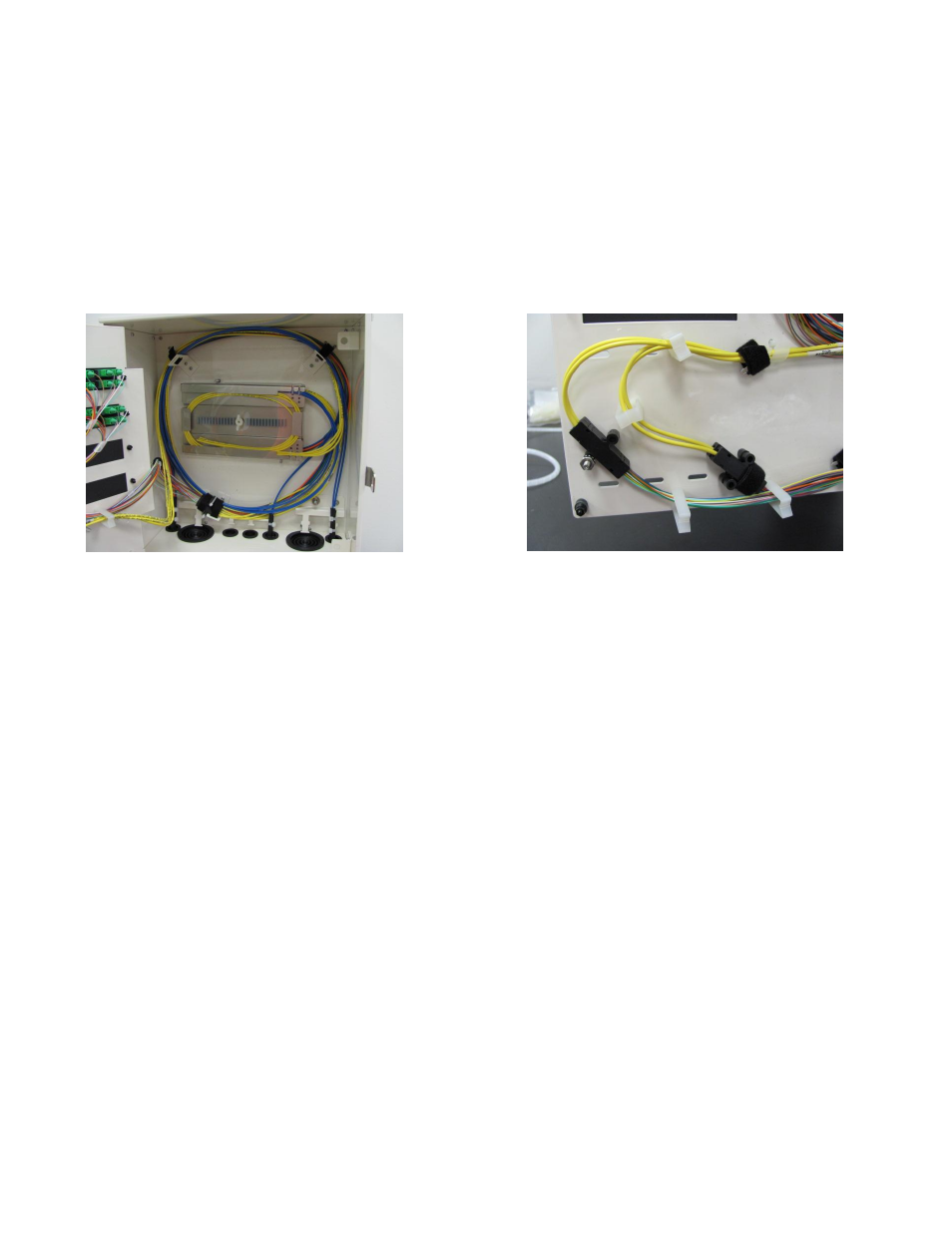

Coil buffer tube strands around splice tray and store slack in cable management brackets.
9.10.2.
Secure buffer tubes and pigtails to cable management clamps using supplied Velcro and or
zip-ties.
9.10.3.
Secure fan-out kits.
9.10.4.
Install splice tray securing grommet and wing nut.
9.10.5.
Dress and secure slack cable.
9.11.
Test
9.11.1.
Clean and inspect any ferrule prior to mating, contamination can damage ferrule end face.
9.11.2.
Typical insertion loss of factory terminated pigtails and fusion splice should be expected to
be 0.25 – 0.5 Db.
9.11.3.
Typical reflectance -55 dB UPC.
9.11.4.
Typical reflectance -65 dB APC.
9.12.
Close unit and secure.
