Tii FDT2 Series - Manual

P/N 92242201 • Rev A • ECN 14-146 • 6/10/2014
Warranty: If this unit fails during the warranty period, contact tii customer service to authorize return. Unit may be returned prepaid.
Model FDT2 Series
Fiber Distribution Terminal
Installation Note
Description
The FDT Series Fiber Distribution Terminals
provide splicing connectivity to the OSP feeder
fiber and a point of demarcation for customer drop
terminations.
Features

Up to 24 fiber drops.
 Top, bottom and side 1” and 2” conduit knockouts

Removable and lockable inner and outer doors

Inner door converts to work surface

Optional protective bottom cable entry skirt

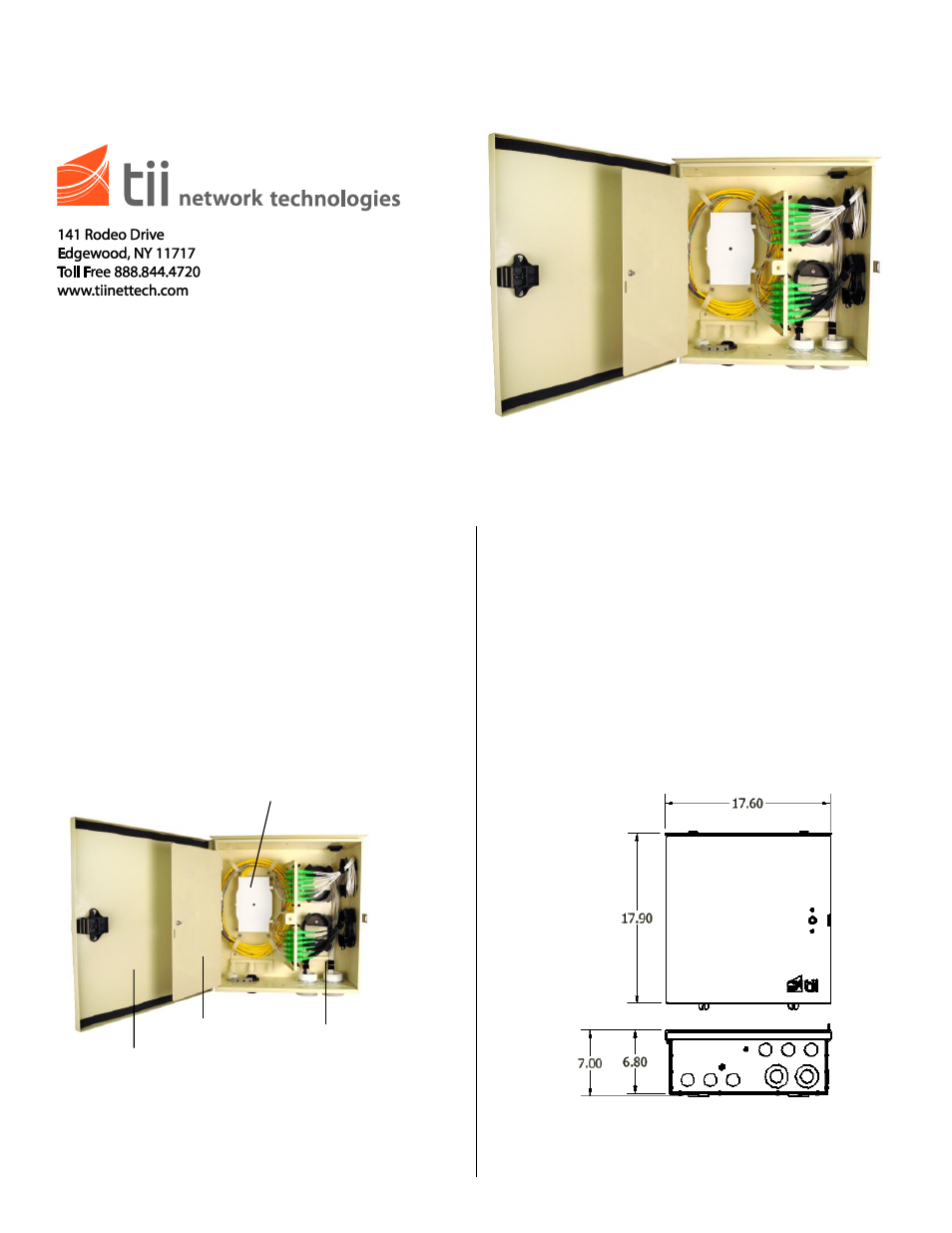

Figure 1
Installation
The FDT is designed for outdoor or indoor installation.
It can be ordered empty and configured on-site or
factory loaded with adapter plates, pigtails, and splice
trays to reduce installation time.
1. Verify contents and inspect for damage
2. Select installation site:

Vertical wall surface

Easily accessible

Adequate clearance from electric light
fixtures, equipment and power circuits.

Near suitable earth ground
Figure 2
Splice Compartment
Outer Door
Inner Door Customer
Drops
