Model tii 99S SERIES
MDU ADSL2+/VDSL2 Splitter Modules
Model tii 712 SERIES
12 Pair Mounting Plate
Installation Note
Description
1. The tii 99S Series MDU ADSL2+/VDSL2
Splitter Module maintains a constant direct
connection between customer and central
office service provider. The Splitter Module is
equipped with the following IDC connections:
(2) POTS Lines, (1) CO Service IN, (1) Data
signal (Modem). Test ports are provided to
assure a signal is received from the central
office.
2. The tii 712 Series 12 Pair Mounting Plate is
configured to hold up to 12 ADSL2+/VDSL2
Modules.
Features

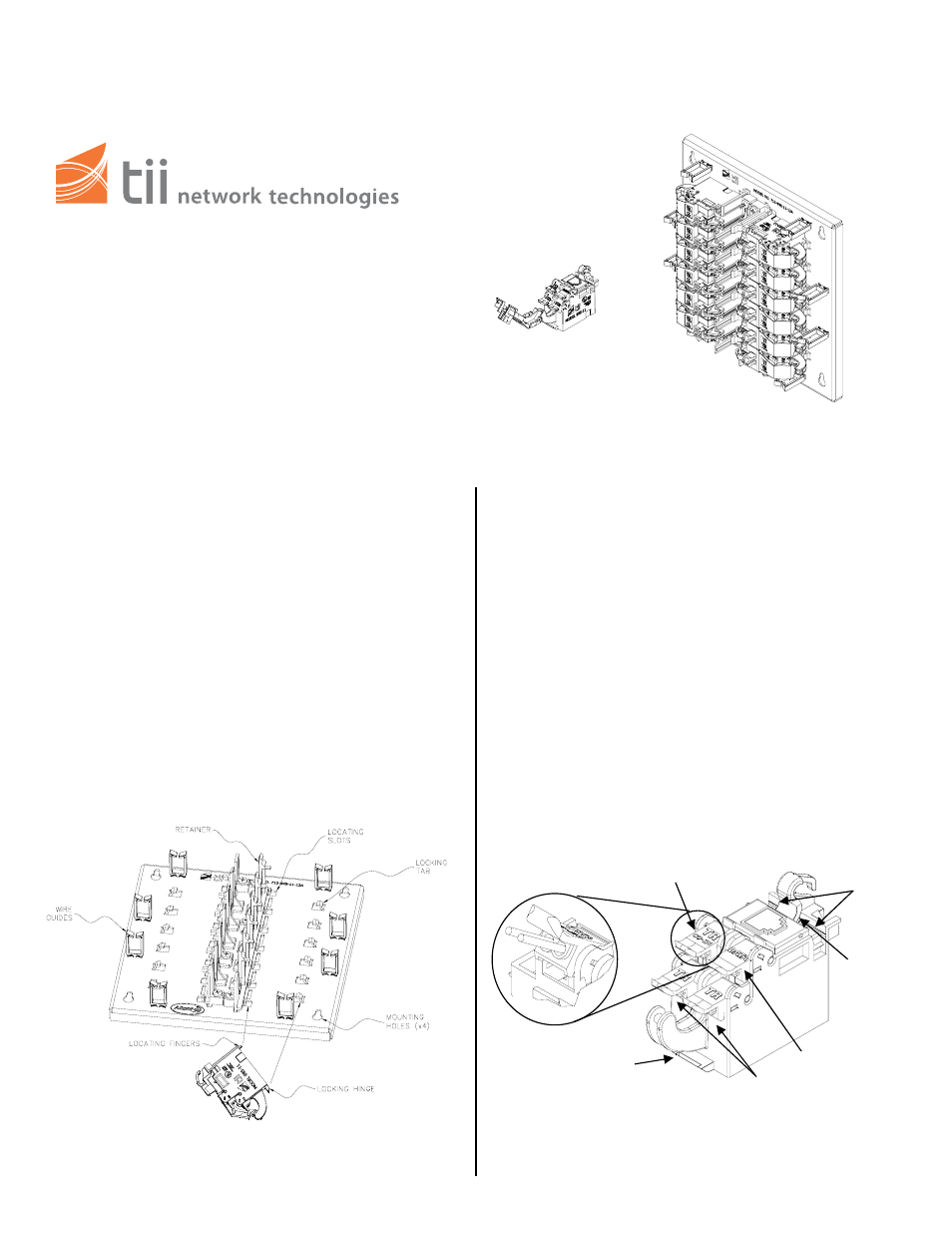

Figure 1
Installation
1. Hold the Splitter Module with the cover pivot
side on the right.
2. Angle the module so that the locking hinge is
secured under the locking tab (See Figure 1).
3. Align the (2) front locating fingers with the
locating slots. Engage the right end ledge
under the retainer. (See Figure 1).
4. Push the left side end down until the latch
snaps closed.
5. Follow steps 1-4 for the remaining module
installations.
6. Mount the 712 mounting plate with #10 sheet
metal screws of the appropriate length. The
mounting center dimensions are 6 3/4 x 6 7/8
(See Figure 3).
Figure 2
