P/N 92226601 • Rev B• 9/3/2008
Warranty: If this unit fails during the warranty period, contact tii customer service to authorize return. Unit may be returned prepaid.
Model 170-06-03 170 Housing equipped with 68T-2S & SVM-1
Model 170-06-04 170 Housing equipped with 68T-2S-4 & SVM-1
Installation Note
Description
1. The TII 170-06-03 is an indoor / outdoor
enclosure equipped with (1) 68T-2S Sealed
IDC Wire Termination Block and (1) SVM-1
Switchable Voice Module. The TII 170-06-04
is an indoor / outdoor enclosure equipped with
(1) 68T-2S-4 Sealed IDC Wire Termination
Block and (1) SVM-1 Switchable Voice
Module.
2. The 170-06-03 & 170-06-04 are used where
multiple extension connections are needed to
provide seamless switching from Telco service
to digital phone service.
3. The 170-06-03 & 170-06-04 can be mounted
indoors or outdoors using the standard
hardware provided.
4. The 170-06-03 & 170-06-04 get their power
from the Digital Voice Service line and
switches after validating telephone ringing
voltage presence.
5. The 170-06-03 & 170-06-04 can be reset by
using the reset push button access provided
on the side wall of the device. The circuit
needs to be powered to activate switching in.
6. IDC rockers are used to terminate 26-22 AWG
solid wire.
Installation
1. Locate a suitable flat, dry area to install the
unit.

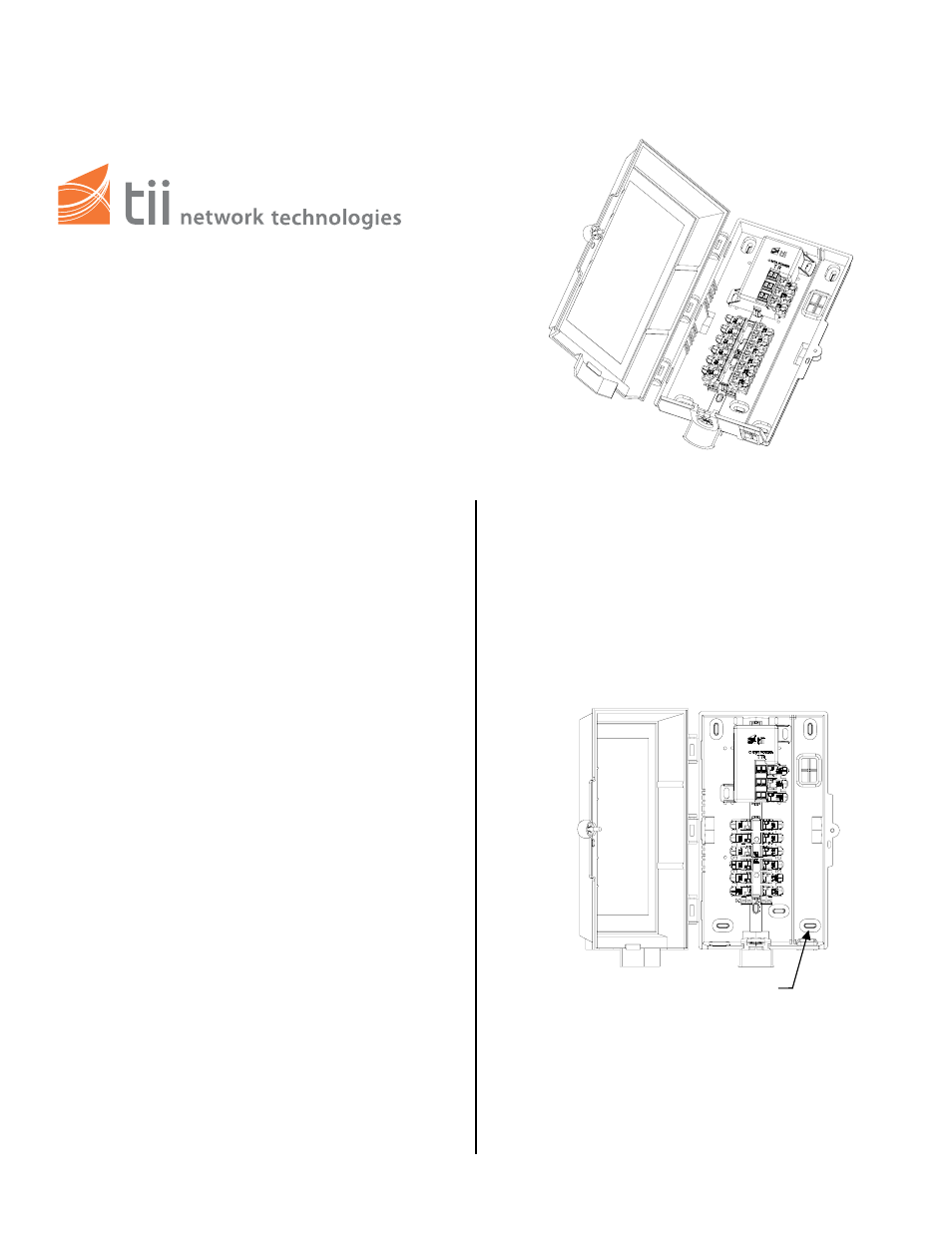

2. Prior to installing the 170-06-03 or 170-06-04,
decide on the (2) knockout locations that are
to be used (See Figure 1). Using a flat bladed
screwdriver, knock out the (2) locations and
use two #8 screws to mount the unit.
Figure 1
Wiring
1. Lift the blue rocker for the digital voice service
wires (MTA) to the full up position. DO NOT
strip wires (See Figures 2 & 3).
141 Rodeo Drive
Edgewood, NY 11717
Toll Free 888.444.4720
www.tiinettech.com
Knockouts (x4)
