Tii 212 - Manual

P/N 92219901 • Rev B• 7/7/2008
Warranty: If this unit fails during the warranty period, contact tii customer service to authorize return. Unit may be returned prepaid.
Model 210/212
Home Networking Protection
Installation Note
Description
1. The series 210/212 In-Line Coax Lightning Surge
Protectors protect personnel and customer premises
equipment from lightning and power induced surges on
coaxial drop cable.
Designed for HFC of FTTC Broadband Network
Applications.
The series 210/212 is furnished complete and requires no
special tools for installation or maintenance.
The unit may be ordered with an indoor/outdoor enclosure
for installation.
Features

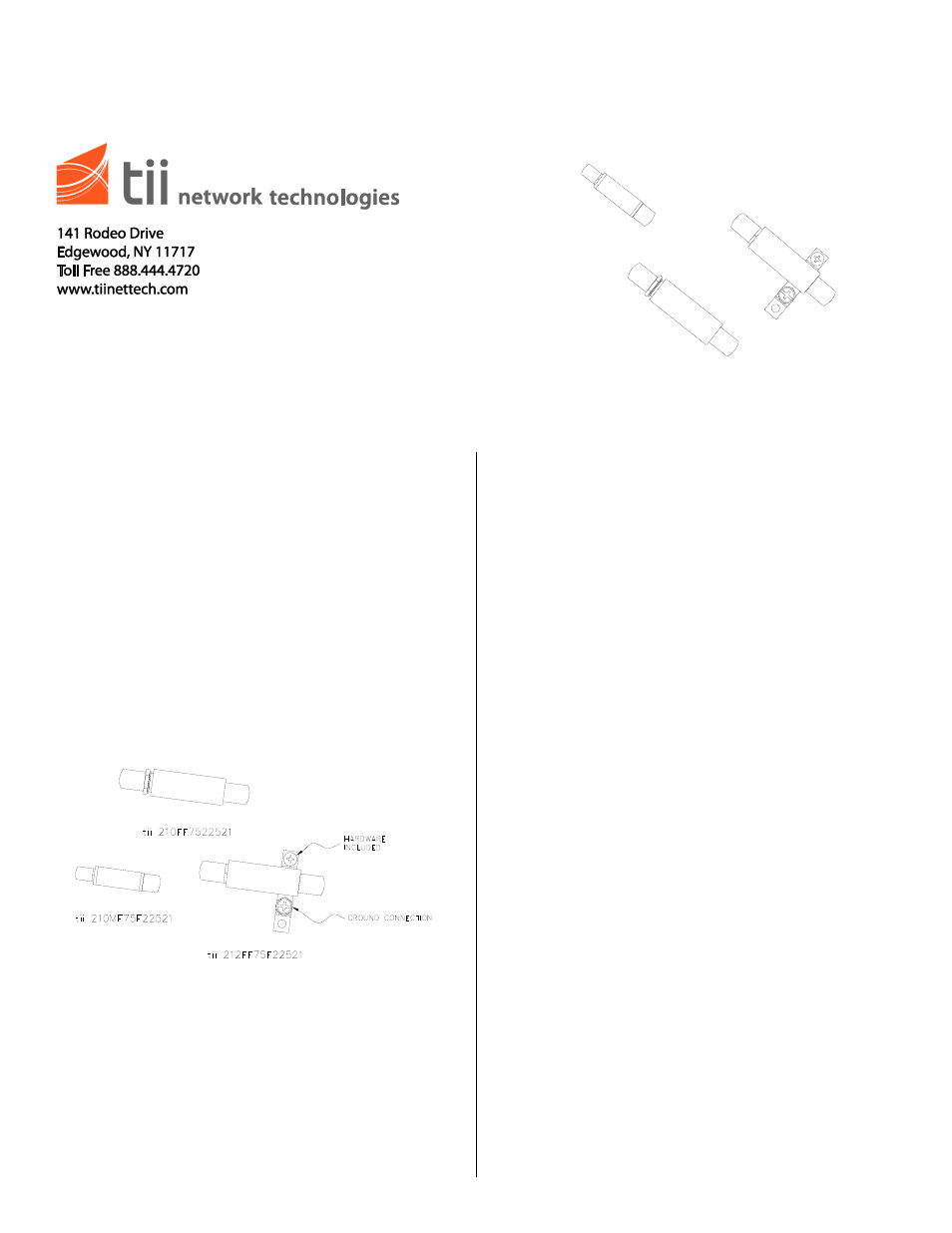

Figure 1
Installation
1. This combined installation note provides the description
and installation steps for the tii Series 210/212 In-Line
Coax Lightning Surge Protectors.
The unit is furnished complete with necessary hardware to
complete the installation.
National Electric Code Requirements: the protector
shall be installed per National Electric Code ANSI/NFPA
70, Article 800, Section C, and shall meet all other
applicable local safety codes.
Caution: Risk of shock if not installed in a listed
indoor/outdoor enclosure.
Notice: The product is to be installed in a listed enclosure,
which has been tested for applicable environment.
Cable Requirement: Using the right size cable will
ensure proper operation of the product. The center
conductor of coax cable used with this product should not
be larger than .040 inches (eg.RG59). Suitable adapters
must be used that have center pin conforming to .040
inches requirement (eg. RG6, RG11).
2. Series 210MF
Install a female to female F-Type connector for each coax
cable to be protected on a suitable grounding panel
(Figure 2-1) as needed or a female to female ground block
in a listed indoor/outdoor enclosure.
Attach coax protector male side to “F-Type” panel
mounted connector (Figure 2-2) ground block.
Attach drop antenna cable (Figure 2- 3) to “Service” side of
the panel mounted connector/ground block.
Dress and secure cables so that incoming
service/antenna and customer/equipment cables do not
cross each other. Bundling of the cables should be
avoided.
Series 212F
Mount protector to an appropriate ground block using
supplied hardware (Figure 3-1).
Attach drop cable to “SERVICE” side of the protector as
shown in Figure 3-1.
Attach customer cable to “CUSTOMER” side of the
protector as shown in Figure 3-1.
