Tii FDH1 User Manual
Page 12
12
Tii Network Technologies Inc. 2012

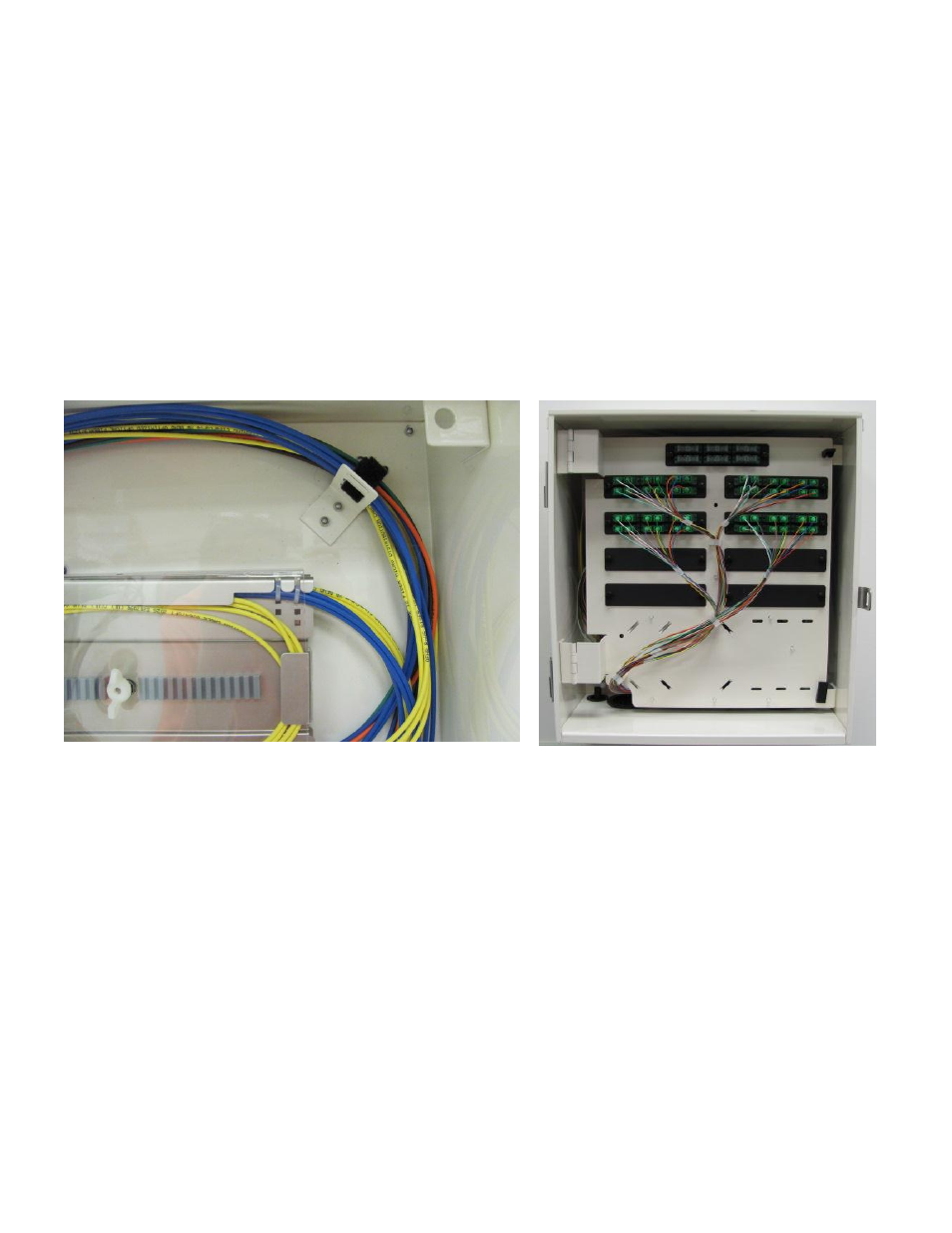

9.8. Patch & Splice
9.8.1. Prepare workspace for splicing.
9.8.2. Stage splice tray near splicer.
9.8.3. Splice each feeder fiber.
9.8.4. Place splice fiber in trays splice chip holders.
9.8.5. Dress and secure buffer and pigtails to splice tray using zip-ties.
9.8.6. Install up to 4 splice trays and store slack in provided cable management brackets.
9.8.7. Route pigtails to front side of panel, stage fibers in parking lot and secure slack using fiber
management clips.
9.8.8.
Activate MDU connections by moving from parking lot to MDU dwelling ports as required
.
