3

98-70007-EN R4

844-AB

CHAPTER 1 - INTRODUCTION

This user guide provides information for software version 4.02.
Make sure that all hardware components are properly installed and tested. Before starting the programming process, confirm that the console

and all sensors are working properly.
IMPORTANT! Before beginning, review the following programme guidelines that control the programming process.
To exit any Setup mode, press and hold the Programme key for 3 seconds. The inputs are stored and the computer will exit Programme

mode.
To increase the value of a programmable digit, press the Plus key. To decrease the value, press the Minus key. These keys are located

directly to the right of the display. For some programme steps, press and hold the Plus and Minus keys to quickly change the values.

Press the Plus and Minus keys once to increment/decrement the values by one unit.
Press and hold the Plus and Minus keys simultaneously to reset the value to “0” or begin automatic calibration.
Press the Programme key to advance the system to the next programme step. After the final programme step is complete, the console will

finish the programming loop and return to the initial programming step.
System setup mode contains the options that customize the controller to the sprayer or sprayer components. These include calibration steps

and parameters that seldom change once programmed.
Application setup mode contains settings that are frequently changed (nozzle spacing, number of nozzles per boom section, density, nozzles

used and target application rate).

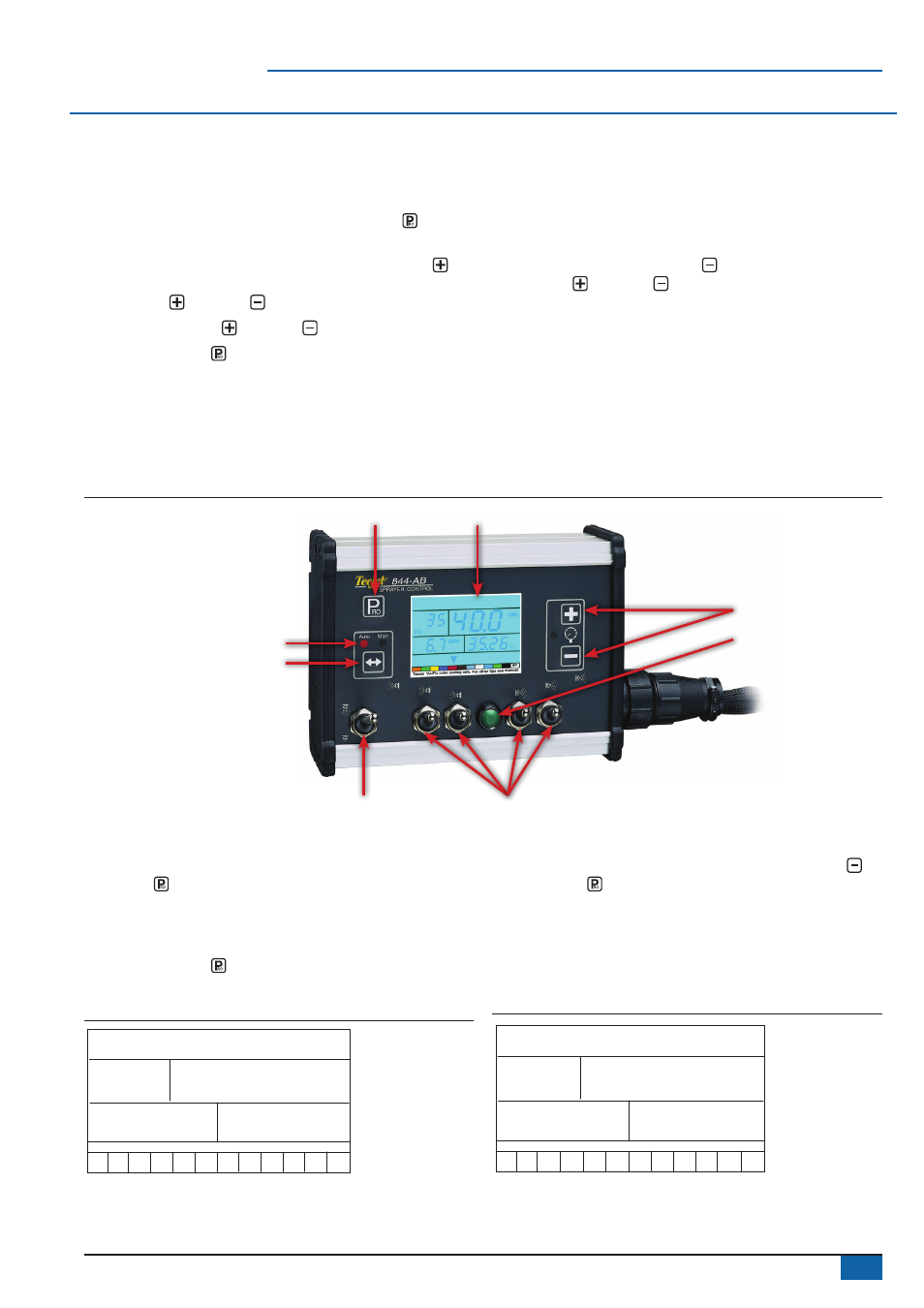

Figure 1: 844-AB console

Plus and minus keys

GREEN button

Boom section controls

Master switch

Auto/man key

Auto/manual mode indicator

On/programme button

Display

Power on the console

The 844-AB console can be powered on by pressing the

Programme key one time. The console will initially display the

software version at the top of the screen and the serial number of the

console at the bottom of the screen. After approximately 5 seconds,

the console will enter into swath width view.
Press the Programme key to advance to normal Operations

mode.
Figure 2: Power on the console

ABL

4.03

g22

5555

1

2 3

4 5

6 7

8 9

10 11

12

Power off the console

To power off the 844-AB console, press and release the Minus

and Programme keys simultaneously. The console will save new

information (area and volume counters) to memory before it powers

down. “Off” will be displayed on the console, followed by a 5-second

countdown, indicating the console is about to power down. The

console also has an automatic power down feature. This is described

in further detail in the Features section of this User guide.
Figure 3: Power off the console

OFF

5

1

2 3

4 5

6 7

8 9

10 11

12
