ISOBUS Job Computer : BoomPilot

®

CHAPTER 3 – MAIN SETUP

Main Setup Mode configures the Setup, OEM, User Interface, Communication and Help options.
NOTE: The menu structure on your display might vary from the one displayed in this User Manual depending on the virtual

terminal being used.

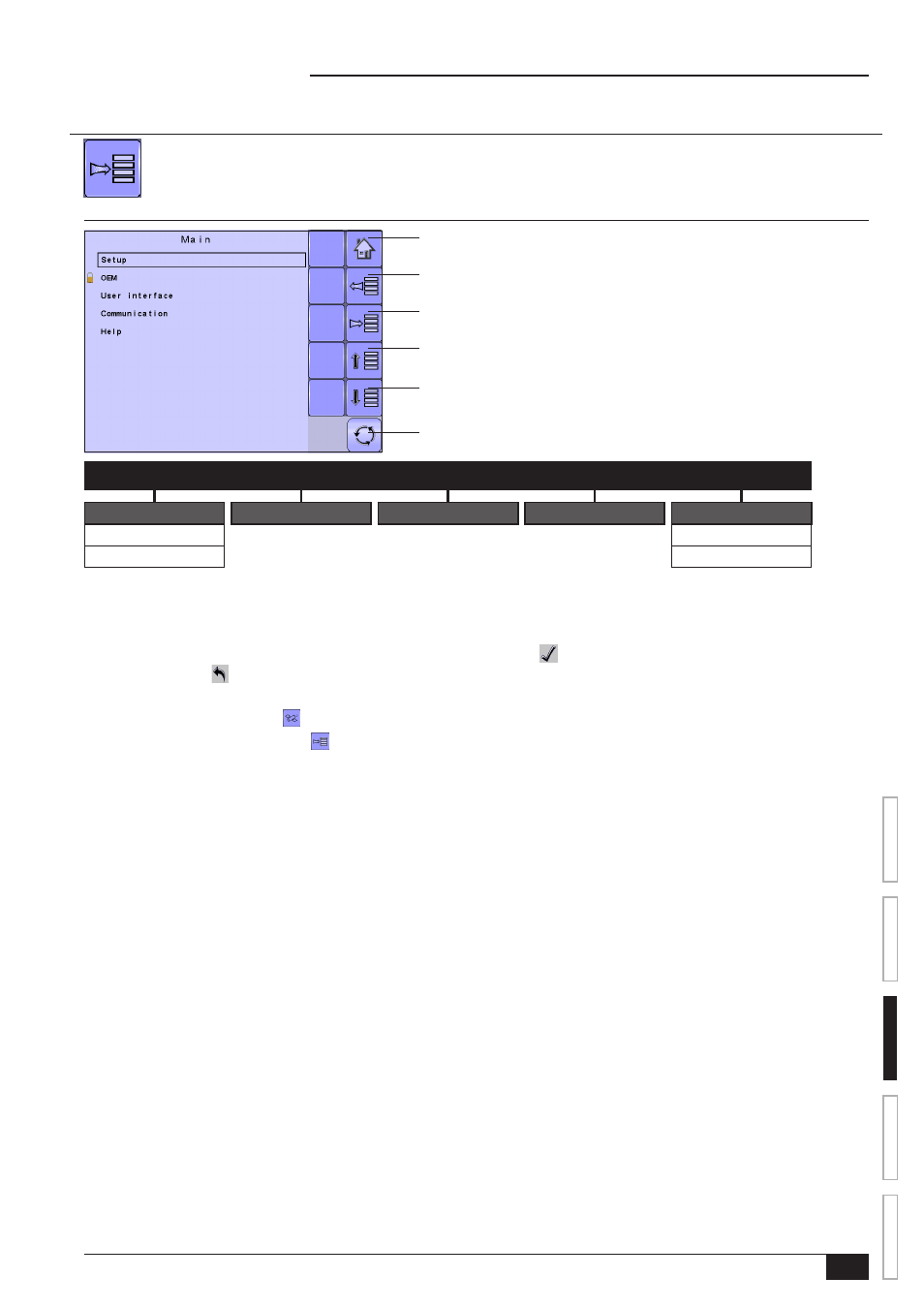

Figure 3-1: Main Setup Screen

Home Key

Back One Screen

Up One Option

Down One Option

Master Screen Key

Forward One Screen

MAIN SETUP MODE MENU STRUCTURE

|

|

|

|

|

Setup

OEM

User Interface

Communication

Help

GPS Setup

Diagnostic

Machine Setup

About

The OEM setup menu is password protected and the settings in this menu are directly related to the fitted OEM equipment.

Main Setup Screen

NOTE: Settings are NOT automatically saved when selected. The ACCEPT KEY must be selected to save the setting. Select the

ESCAPE KEY to escape without saving settings and return to the previous menu.

To access the Main Setup screens:
1. Select BOOMPILOT ECU KEY from the Master Screen.
2. Select MAIN SETUP SCREEN KEY from the Home Screen.
3. Select from:

►Setup – used to configure the GPS settings and Machine settings

◄ GPS Setup – used to establish the Overlapping percentage, GPS Alarm and GPS Input
◄ Machine Setup – used to establish the delay off and delay on time; front or back implement mounting position; and distance

from the boom and the antenna to the mounting point

►OEM – used to establish if the antenna is machine mounted and its associated distance from the hitch
►User Interface – used to allow the operator to select the system virtual terminal (VT) and ECU identification number
►Communication – used to establish the BoomPilot ECU's ability to communicate with an external computer
►Help – allows the operator to choose between Diagnostics and the About screen

◄ Diagnostic – used to provide information regarding the BoomPilot protocol, VT and TECU.
◄ About – used to provide information on the console such as software version, build number, etc

NOTE: The menu structure on your display might vary from the one displayed in this User Guide depending on the virtual terminal being

used. This User Guide will display all possible options.
