ISOBUS Job Computer : BoomPilot

®

GPS Setup

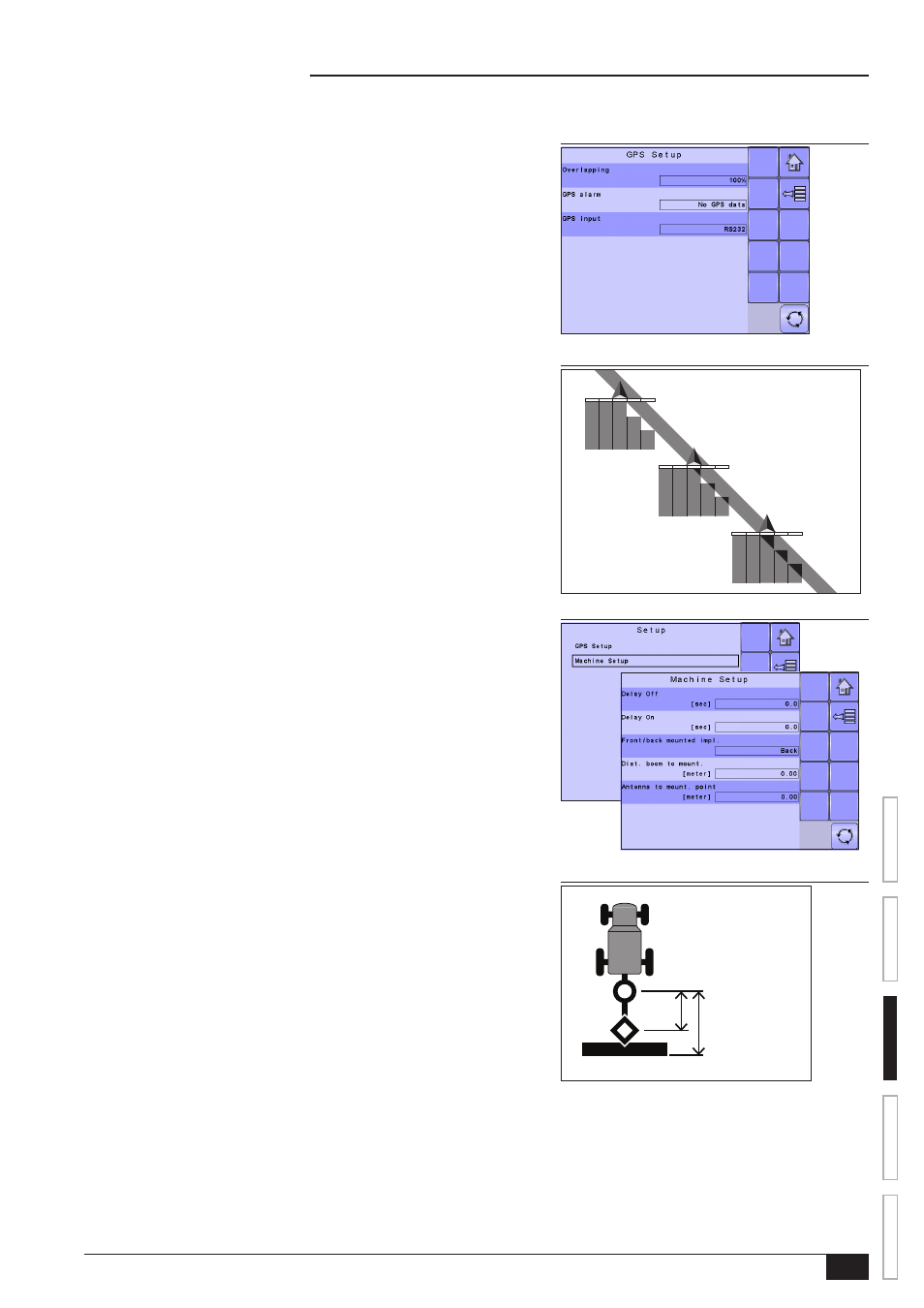

Figure 3-5: GPS Setup

Figure 3-6: Overlapping

0 %

50 %

100 %

Figure 3-7: Machine Setup

Figure 3-8: Distance to Mount Point

Boom

Hitch/Mount Point

GPS Antenna

GPS setup establishes the Overlapping percentage, GPS Alarm and GPS Input.

Overlapping

Overlapping determines the amount of overlap allowed when each boom section is

turned on and off using Automatic Boom Section Control. Select from 0%, 50% or

100%.

• To select the Overlapping percentage, select an option from the drop down

menu or use the UP/DOWN ARROWS to highlight the option.

GPS Alarm

GPS Alarm determine if an alarm sounds when GPS or DGPS is lost or if there are

no GPS alarms.

• To select the GPS alarm type, select an option from the drop down menu or

use the UP/DOWN ARROWS to highlight the option.

GPS Input

GPS Input determines if the GPS signal is through the internal GPS or an external

RS232 port.

• To select the GPS input type, select an option from the drop down menu or

use the UP/DOWN ARROWS to highlight the option.

Machine Setup

Machine Setup establishes the delay off and delay on time; front or back implement

mounting position; and distance from the boom and the antenna to the mounting

point.

Delay Off

Delay Off functions as a “look ahead” for establishing the timing for the boom

section valves to switch off exactly when entering an area that has been applied. If

the boom turns off too soon when entering an applied area, decrease the Delay Off

setting. If the boom turns off too late when entering an applied area, increase the

Delay Off setting. Range is 0.0 - 10.0 seconds.

• To select the delay off time, use the number pad or slide bar.

Delay On

Delay On functions as a “look ahead” for establishing the timing for the boom

section valves to switch on exactly when entering an area that has not been

applied. If the boom turns on too soon when entering a non-applied area, decrease

the Delay On setting. If the boom turns on too late when entering a non-applied

area, increase the Delay On setting. Range is 0.0 - 10.0 seconds.

• To select the delay on time, use the number pad or slide bar.

Front or Back Mounted Implement

Direction to Boom sets whether the boom is located behind or in front of the GPS

antenna as the vehicle moves in a forward direction.

• To select the mounting placement, select an option from the drop down menu

or use the UP/DOWN ARROWS to highlight the option.

Distance from Boom to Mount Point

Distance to Boom defines the distance from the hitch or mount point to the boom.

Range is 0.00 - 50.00 meters.

• To select the distance, use the number pad or slide bar.

Distance from Antenna to Mount Point

Distance from Antenna defines the distance from the hitch or mount point to the antenna. The antenna should be behind the mount point

(machine mounting is set in OEM options). Range is 0.00 - 200.00 meters.

• To select the distance, use the number pad or slide bar.
