ISOBUS Job Computer : BoomPilot

®

HELP

The Help menu allows the operator to choose between Diagnostics and the

display of information about serial number, CAN BUS information, etc. These

menus are typically accessed upon Customer Service personnel request only.

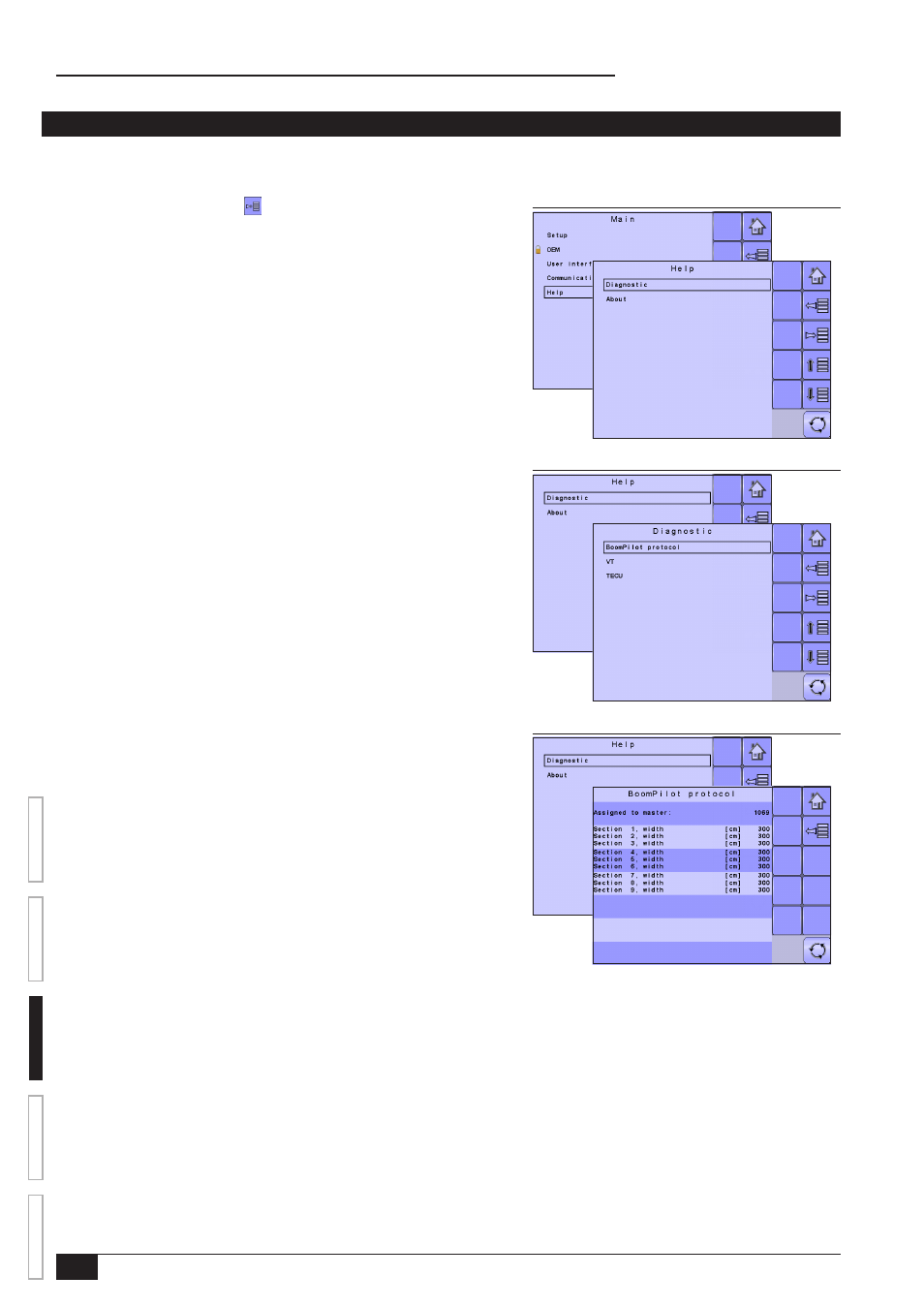

Figure 3-15: Help

Figure 3-16: Diagnostic

Figure 3-17: BoomPilot Protocol

1. From the Main Setup Screen , select HELP.
2. Select from:

►Diagnostic – used to provide information regarding the BoomPilot protocol,

VT and TECU.

►About – provides information on the console such as software version, build

number, etc.

Diagnostic

Diagnostic is used to provide information regarding the BoomPilot protocol, VT and

TECU.

►BoomPilot Protocol – provides information regarding the IC18 pairing and the

pair's associated boom sections.

►VT – provides information regarding the virtual terminal controller.
►TECU – provides information regarding the TECU.

BoomPilot Protocol

BoomPilot Protocol provides information regarding to which IC18 ECU (per IC18

identification number) the BoomPilot ECU is paired, and the pair's associated boom

sections.
