ISOBUS Job Computer : BoomPilot

®

OEM

The OEM setup menu is password protected and the settings in this menu are directly related to the fitted OEM equipment. To obtain an

access code, contact your local dealer or TeeJet Technologies Customer Service.
To access the OEM screens:

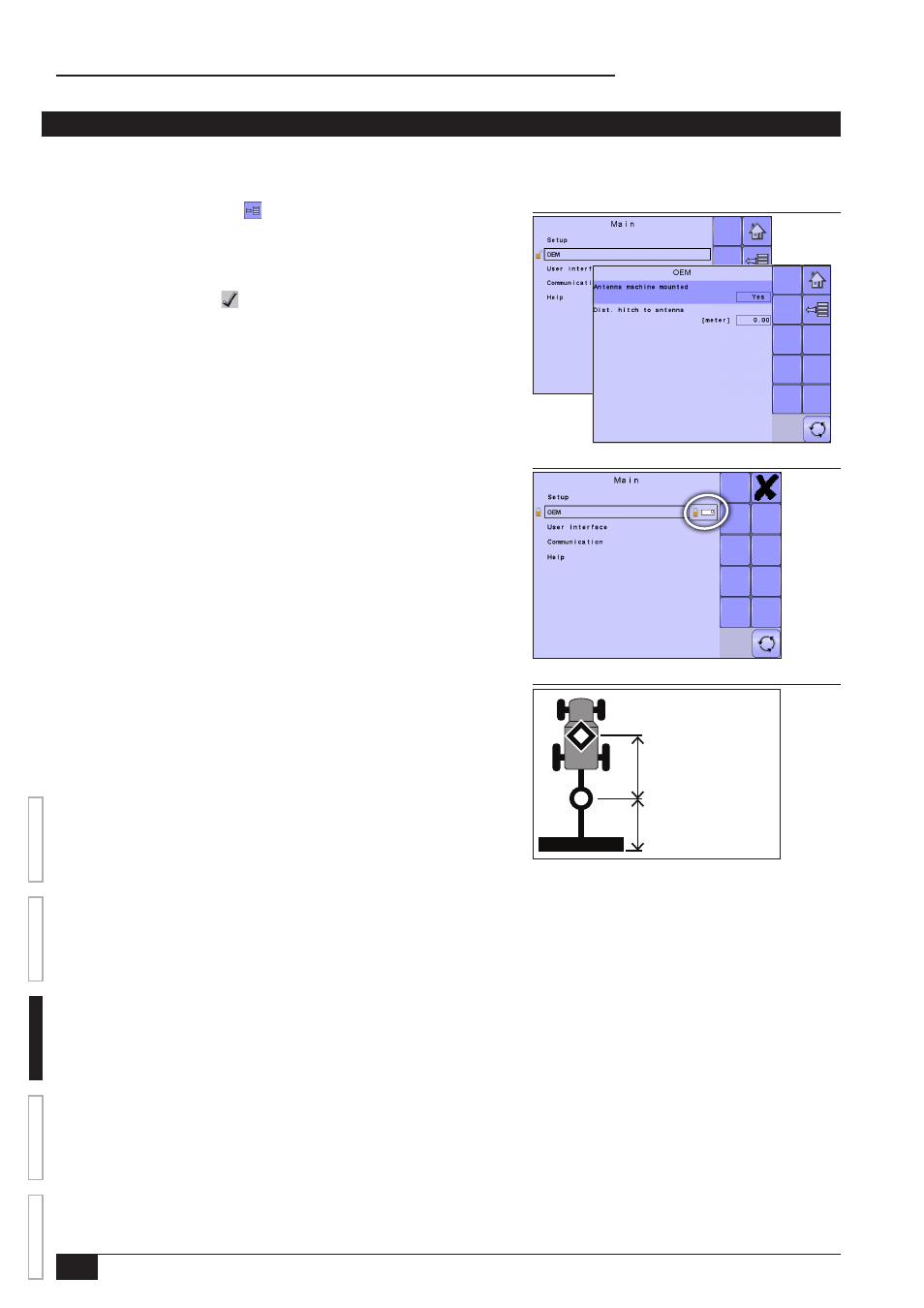

Figure 3-9: OEM

Figure 3-10: OEM Unlock

Figure 3-11: Distance from Hitch to Antenna

Boom

Hitch/Mount Point

GPS Antenna

1. From the Main Setup Screen , select OEM.
2. Select OEM.
3. Select the Access Code Entry Box to the right of the menu option.
4. Use the number pad or slide bar to enter the access code.
5. Select the ACCEPT KEY to complete the unlock process

Antenna Machine Mounted

Antenna Machine Mounted sets if the antenna is mounted on the machine, not the

implement/boom. Range is 0.00 - 200.00 meters.

• To set if the antenna is machine mounted, select an option from the drop down

menu or use the UP/DOWN ARROWS to highlight the option.

Distance from Hitch to Antenna

Distance from Antenna defines the distance from the hitch or mount point to the

antenna. This option is only available if the antenna is machine mounted and the

"Antenna Machine Mounted" options is "Yes". Range is 0.00 - 200.00 meters.

• To set the distance, use the number pad or slide bar.
