ISOBUS Job Computer : BoomPilot ®
CHAPTER 4 – OPERATION MODE
The Operation Screen accesses the working aspects of the BoomPilot ECU including boom section control and trip/application
information.
NOTE: Settings are automatically saved when selected.
NOTE: The menu structure on your display might vary from the one displayed in this User Manual depending on the virtual
terminal being used.
OPERATION MODE OVERVIEW
Information on the Operation screen will vary depending on the parameters set by the user and the OEM.

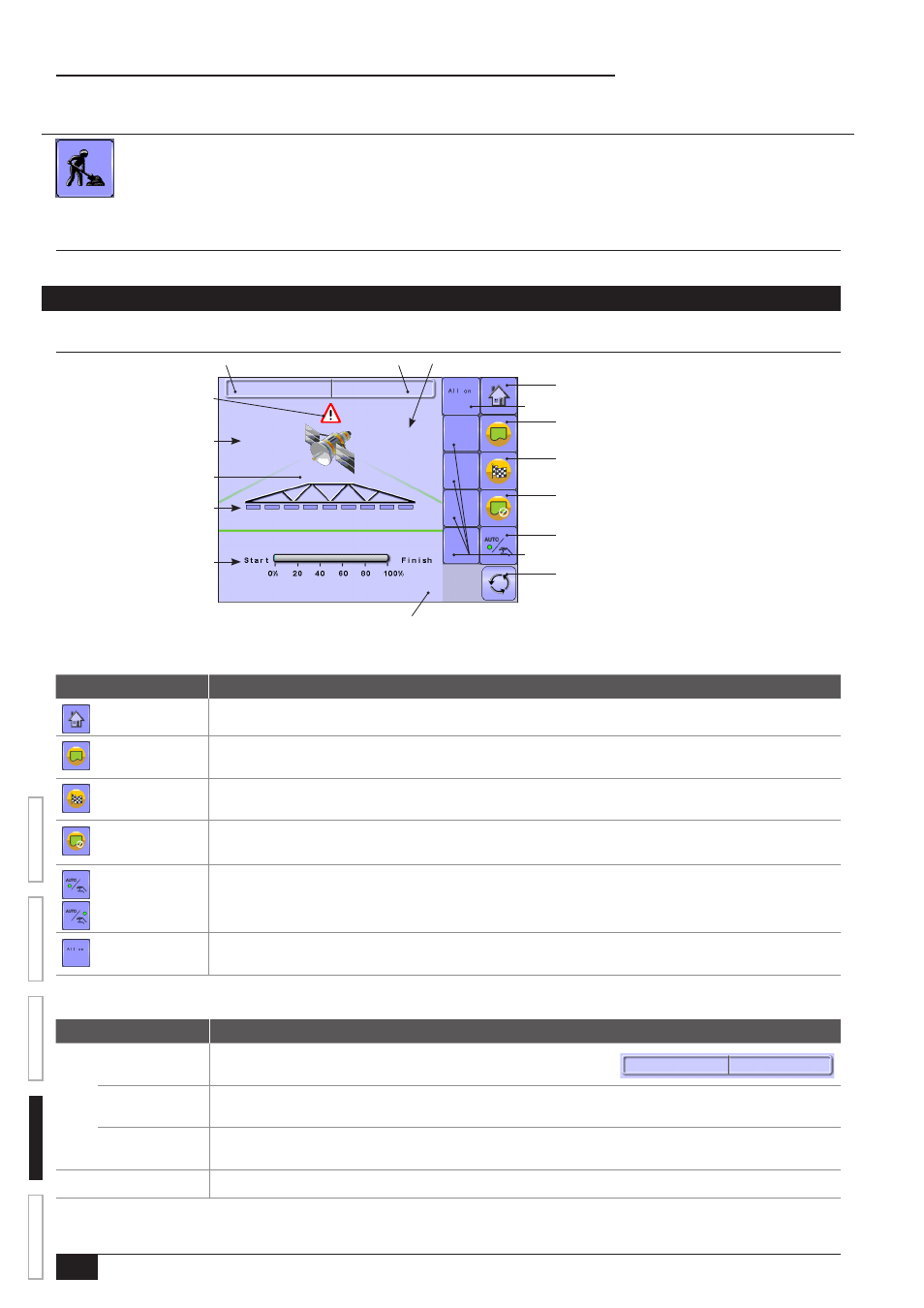

Figure 4-1: Operation Mode Screen Overview
1 . 7 7 B . a r e a
5 . 2 0 . 0
0 : 0 0 h h : m m
h a
2
k m / h
N o G P S
Total Area Bounded
Speed
GPS Information
Alert Warning
Applied Area
Boom Sections
Bounded Area Status
Remaining Application Time
ECU ID Number
All Sections On Key
Extra Key Spaces
Home Key
Start Boundary Key
No Boundary Key
Auto/Manual Mode Key
Master Screen Key
Finish Boundary Key
Keys Descriptions
Icon Description
Home Key Press to return to the Home Screen
Start Boundary
Key
Press to start a new boundary
Finish Boundary
Key
Press to finish the boundary. A straight line will complete the boundary between your current location and the
starting point
No Boundary
Key
Press to apply without using a boundary
Auto/Manual
Key
Press to toggle between automatic and manual application modes
• Automatic mode will turn on ABSC (automatic boom section control)
• Manual mode will turn off ABSC.
All Sections On
Key
Press to turn on all sections whether or not you are in an applied or not applied area
Section and Icon Descriptions
Section or Icon Description
Job Information This information bar displays the total area bounded and remaining
application time
1 . 7 7 B . a r e a 0 : 0 0 h h : m m
Total Area
Bounded
Displays the total area bounded in current boundary
Remaining
Application Time
Displays the amount of time remaining to completely cover the area bounded based on the current speed and
rate of application
Speed Displays vehicle speed
