ISOBUS Job Computer : BoomPilot ®
CHAPTER 1– PRODUCT OVERVIEW
BoomPilot (automatic boom section control) is possible in combination with software built into the IC18 Sprayer/NH3 Electronic Control Unit
(ECU). The ECU should be combined with the appropriate cable to interface with your BoomPilot system, spray controller and/or spraying
machine for quick and easy installation. Electronic Control Units and their related cables are designed to control as many boom sections as
the spray controller to which they are connect, up to a maximum of 9 boom sections.

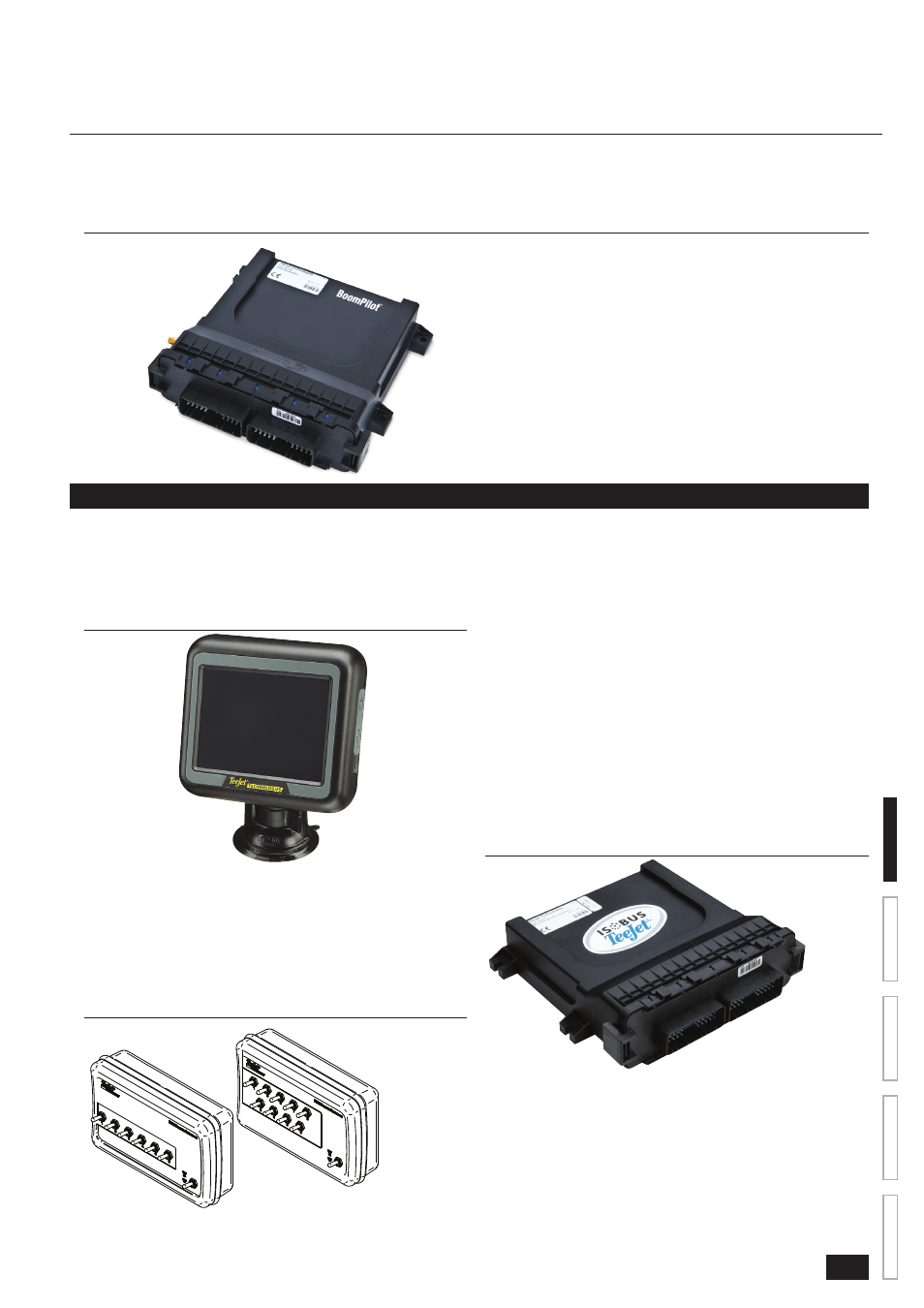

Figure 1-1: BoomPilot Electronic Control Unit
OPTIONAL SYSTEM COMPONENTS
Matrix 570VT
The Matrix 570VT is a simple to operate, ISOBUS-certified 5.7″
color touch screen display suitable for bright daylight and nighttime
operation
Figure 1-2: Matrix 570VT
Switchbox
Manual section control with remote master capibility. The
switchboxs are available in:
►9 section output or 8 sections and a master output.
►6 section output or 5 sections and a master output.
Figure 1-3: Switchboxes
IC18 Sprayer/NH3 ECU
Use with your existing VT or Matrix® 570VT
• Works seamlessly and displays on any ISOBUS VT
• Easy navigation menu and data rich display
• IC18 Sprayer ECU suitable for use with NH3 and liquid
fertilizer
• Automatic boom section control upgrade option
• Variable rate control available providing your VT has GPS and
task control capability
• Add additional ISOBUS ECUs as your needs change
• Provides basic rate control
• Standardized plugs, cables and software simplify installation
and connectivity and result in true “plug and play” technology.
IC18 ECU resides on the implement, reducing hardware in the
cab
Figure 1-4: IC18 Job Computer
