9

98-05210 R0 UK

OVER

VIE

W

SE

TUP

APPENDIX

GE

TTING ST

AR

TED

OPER

ATION

ISOBUS Job Computer : BoomPilot

®

USER INTERFACE

User Interface allows the operator to select the system virtual terminal (VT) and

ECU identification number.

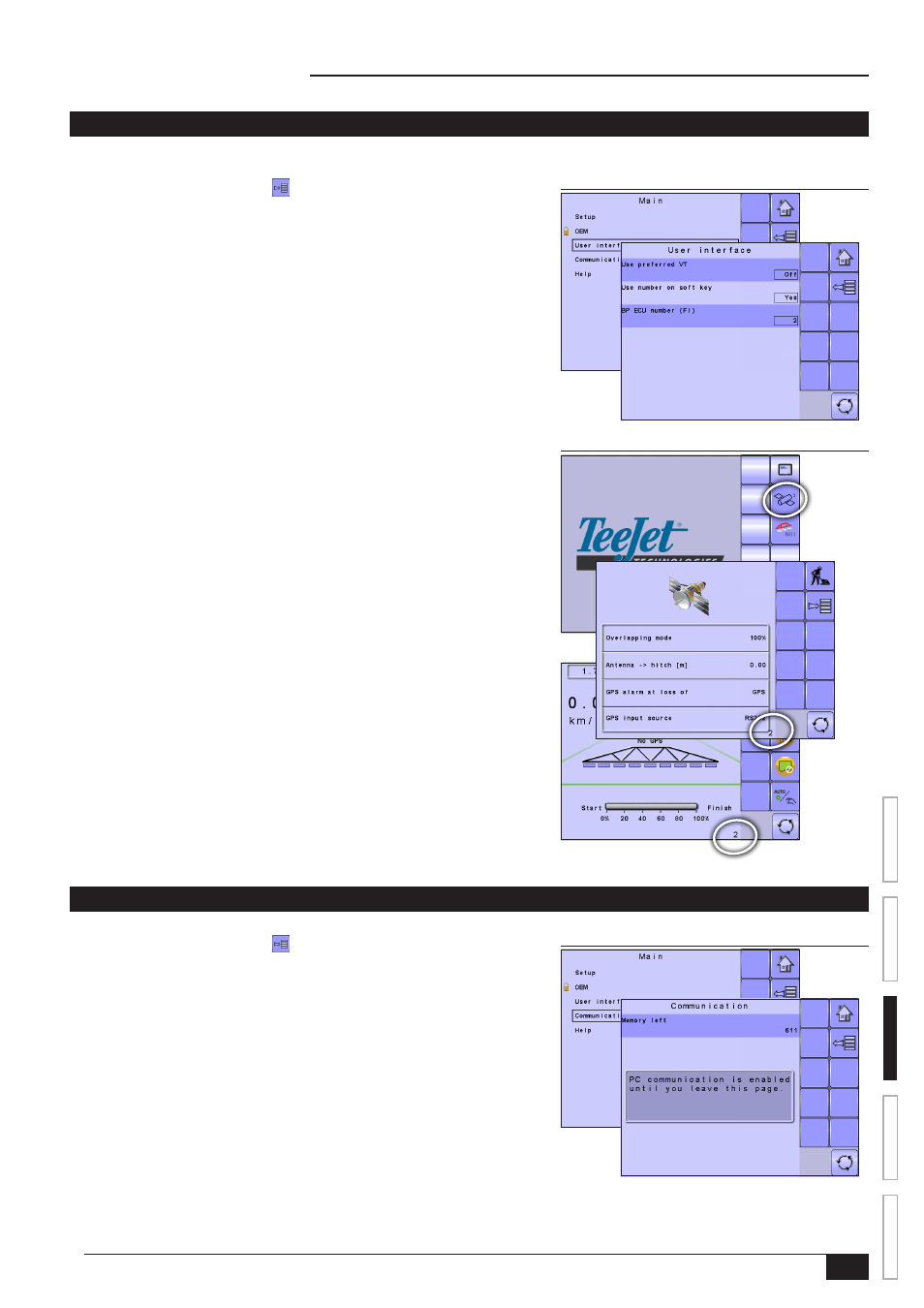

Figure 3-12: User Interface

Figure 3-13: BoomPilot ECU Number

1. From the Main Setup Screen , select USER INTERFACE.

Use Preferred VT

Use Preferred VT sets the virtual terminal preference to either on or off. If “On” is

selected, the preferred VT will be used. If “Off” is selected, the system will arbitrarily

select which VT to use (if more than one VT is available on the ISOBUS CAN).

• To set the Use Preferred VT mode, select an option from the drop down menu

or use the UP/DOWN ARROWS to highlight the option.

NOTE: This should always be set to "off" unless another VT is on the CAN bus.

Show Number on Soft Key

Show Number on Soft Key establishes if a user assigned identification number will

be visible on the Master Screen, Home Screen and Operation Screen.

• To set the Soft Key Number mode, select an option from the drop down menu

or use the UP/DOWN ARROWS to highlight the option.

NOTE: Typically used only if more than one (1) BoomPilot ECU is on the CAN bus.

BoomPilot ECU Number (FI)

BP ECU Number is the identification number referring specifically to the BoomPilot

ECU.

• To set the BoomPilot ECU Number, use the number pad or slide bar.

COMMUNICATION

Communication establishes the BoomPilot ECU's ability to communicate with an external computer.

Figure 3-14: Communication

1. From the Main Setup Screen , select COMMUNICATION.
