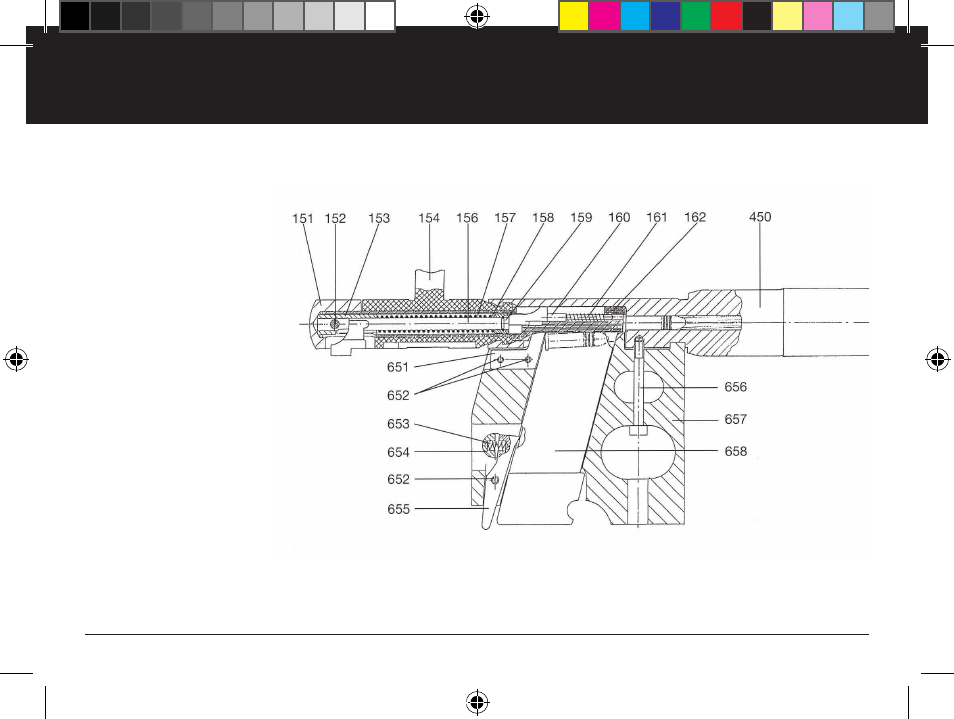

15.0 Parts List & Diagram for training system .22 LR (optional)
150 Bolt assy. .22 LR
151 Lock
152 Clamping sleeve
153 Spring counter bearing
154 Bolt head
155 Firing pin sub-assy.
(Pos. 156 - 159)
156 Firing pin
157 Firing pin spring
158 Bushing
159 Circlip
160 Firing pin tip
161 Pressure spring
162 Bolt cylinder
163 Pressure spring
164 Extractor seat
165 Retention claw
