Form RZ -NA-I-SFT, Mfg No. 173474 (Rev 6), Page 5

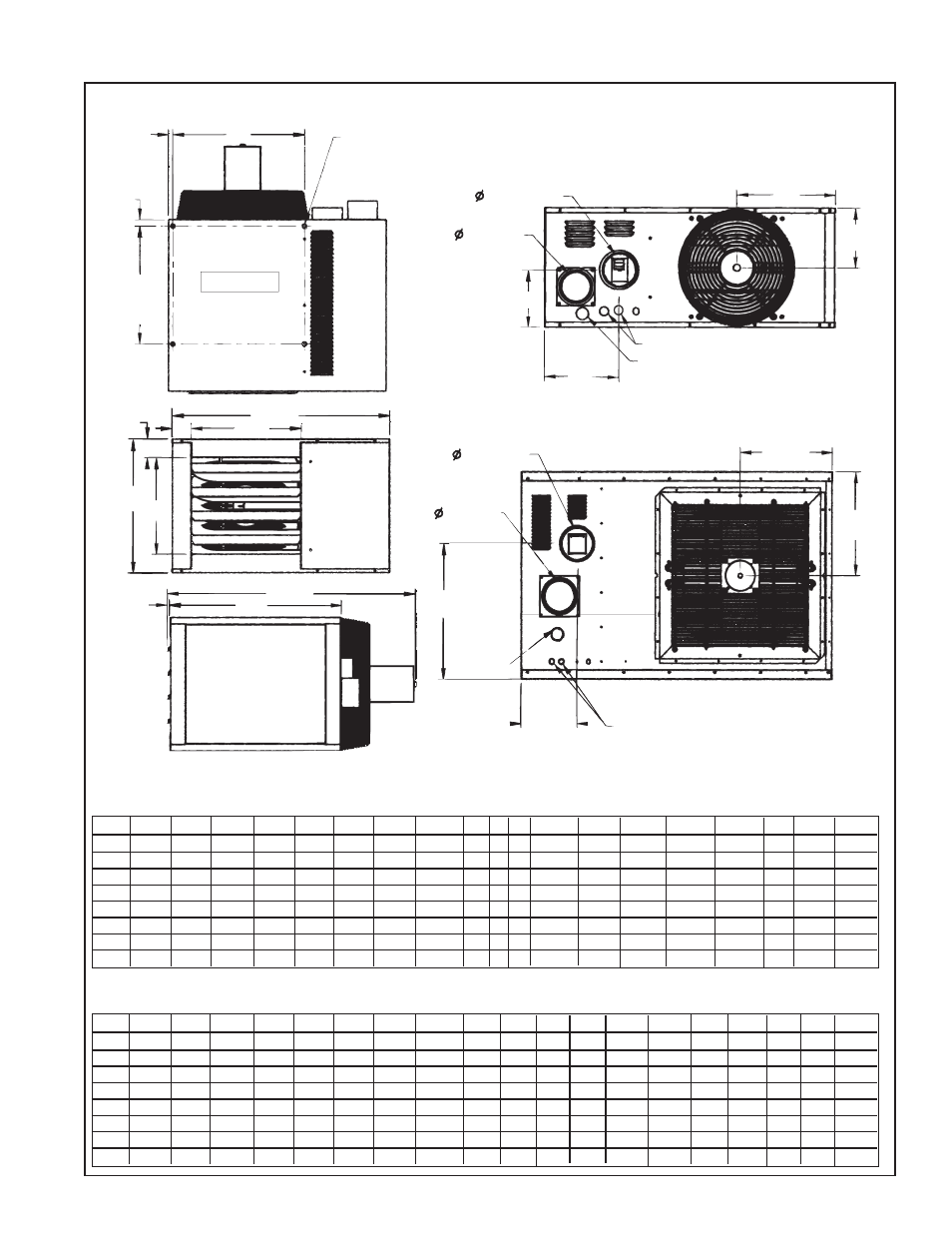

8. Dimensions
Figure 1
Dimensions (inches ± 1/8")
Size A B C D E F G H J K L M N P R S T U V
45 29-5/8 12-1/8 15 2-5/8 1 10-1/8 26-1/4 21-1/4 3/8 4 3 5-3/4 7-5/8 10 6 18 16 1/2 3/4
60-75 29-5/8 18-1/8 15 2-5/8 2-1/2 16-1/8 31-3/8 23-1/4 3/8 5 4 10-1/2 8 10 9 18 16 1/2 3/4
100 38 22 20-5/8 2-1/4 5 12 33-1/2 25-3/8 1 5 4 11 9-1/2 13-1/4 11 24-1/4 16 1/2 4-5/8
125 38 22 20-5/8 2-1/4 3-5/8 14-3/4 33-1/2 25-3/8 1 5 4 11 9-1/2 13-1/4 11 24-1/4 16 1/2 4-5/8
150 38 33 20-5/8 2 6 21 34 25-3/8 1 5 5 21-3/4 9-1/4 13 16-1/2 24-1/4 16 1/2 4-5/8
200 38 33 20-5/8 2 4-1/2 24 34 25-3/8 1 5 5 21-3/4 9-1/4 13 16-1/2 24-1/4 16 1/2 4-5/8
250 51-1/4 33 34-1/2 2 4-1/2 21 35-3/8 25-3/8 1 5 5 21-1/2 9-1/4 15-1/8 16-1/2 29-3/8 16 8-1/2 4-5/8
300 51-1/4 33 34-1/2 2 4-1/2 24 35-3/8 25-3/8 1 6 6 22 9-1/4 15-1/8 16-1/2 29-3/8 16 8-1/2 4-5/8
Size A B C D E F G H J K L M N P R S T U V
45 752 308 381 67 25 257 667 540 10 102 76 146 194 254 152 457 406 13 19
60-75 752 308 381 67 64 410 797 591 10 127 102 267 203 254 229 457 406 13 19
100 965 559 524 57 127 305 851 645 25 127 102 279 241 337 279 616 406 13 117
125 965 559 524 57 92 375 851 645 25 127 102 279 241 337 279 616 406 13 117
150 965 559 524 51 152 533 864 645 25 127 127 552 241 330 419 616 406 13 117
200 965 559 524 51 114 610 864 645 25 127 127 552 241 330 419 616 406 13 117
250 1302 559 876 51 114 533 899 645 25 127 127 546 241 384 419 746 406 216 117
300 1302 559 876 51 114 610 899 645 25 152 152 559 241 384 419 746 406 216 117
Dimensions (mm ± 3)
S
4-pt suspension points
3/8-16 cage nuts
Flue Outlet
Air Inlet
K
L
M
V
U
T
Hanger
Location
Top View
A
C
E
B
F
Front
View
Right Side
View
J
G
H
N
P
R
Field wiring connections
Gas Connection 1/2”
Flue Outlet
Air Inlet
K
L
P
R
M
Gas
Connection
1/2” Sizes 150-200
3/4” Sizes 250-300
N
Field wiring connections
Rear View - Model SFT 150-300
Rear View - Model SFT 45-125
