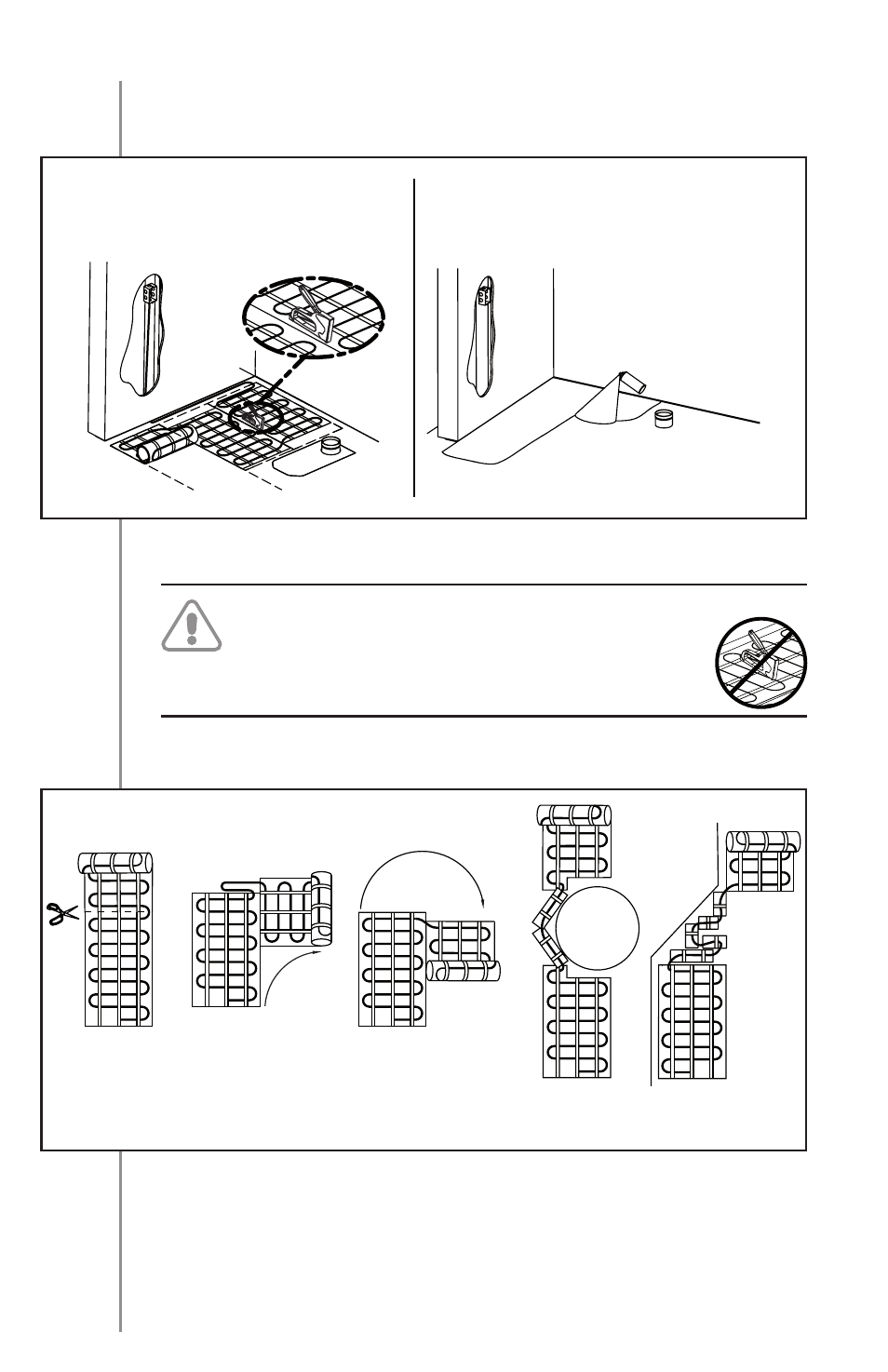

• Staple the mat to the plywood subfloor to prevent the mat ends from curling;
• Use spray adhesive to fasten the EFMA to a concrete subfloor.

Staple the mat to plywood

Secure with an aerosol adhesive

on concrete

Fig. 4.4 b

Fig. 4.4 c

IMPORTANT!

Never staple the heating cable directly to the subfloor.

4.4.1 Working Around Walls and Obstacles

90°

180°

Cut the mat

NEVER CUT

OR SHORTEN

THE HEATING CABLE

Change direction 90°

when you meet

an obstacle

Change direction 180°

when you meet

an obstacle

Work around

obstacles

Work around a 45° wall

Obstacle

Fig. 4.4 1

• When the EFMA roll meets a wall or obstacle, simply cut the mat and pivot it in

another direction (Fig. 4.4.1);
