16
16"

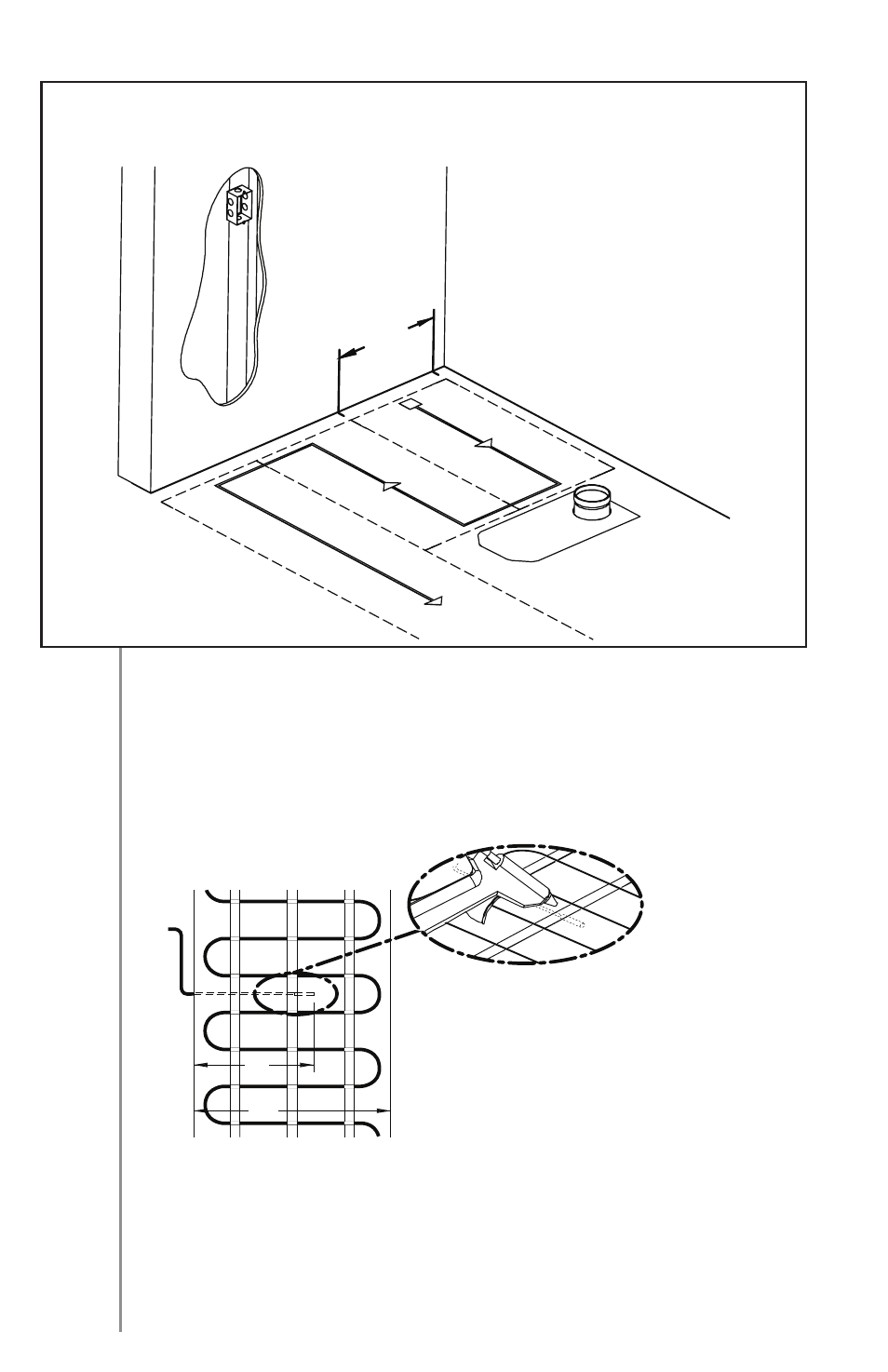

Fig. 4.3 a
• The floor temperature sensor must be centered between two parallel heating cables
under the EFMA fiberglass mat (Fig. 4.3 b). The ideal location is one where it is
likely to be away from stationary objects and sheltered from outside influences
(sunlight) that could skew floor temperature readings. For maximum comfort, the
area above the sensor must be free of obstruction.
10"
16"
Fig. 4.3 b
