Form I-UD-V-SC, PN195676R17, Page 9

Horizontal,

Option CC6, instructions

begin below.

Vertical,

Option CC2, instructions

begin on page 12.

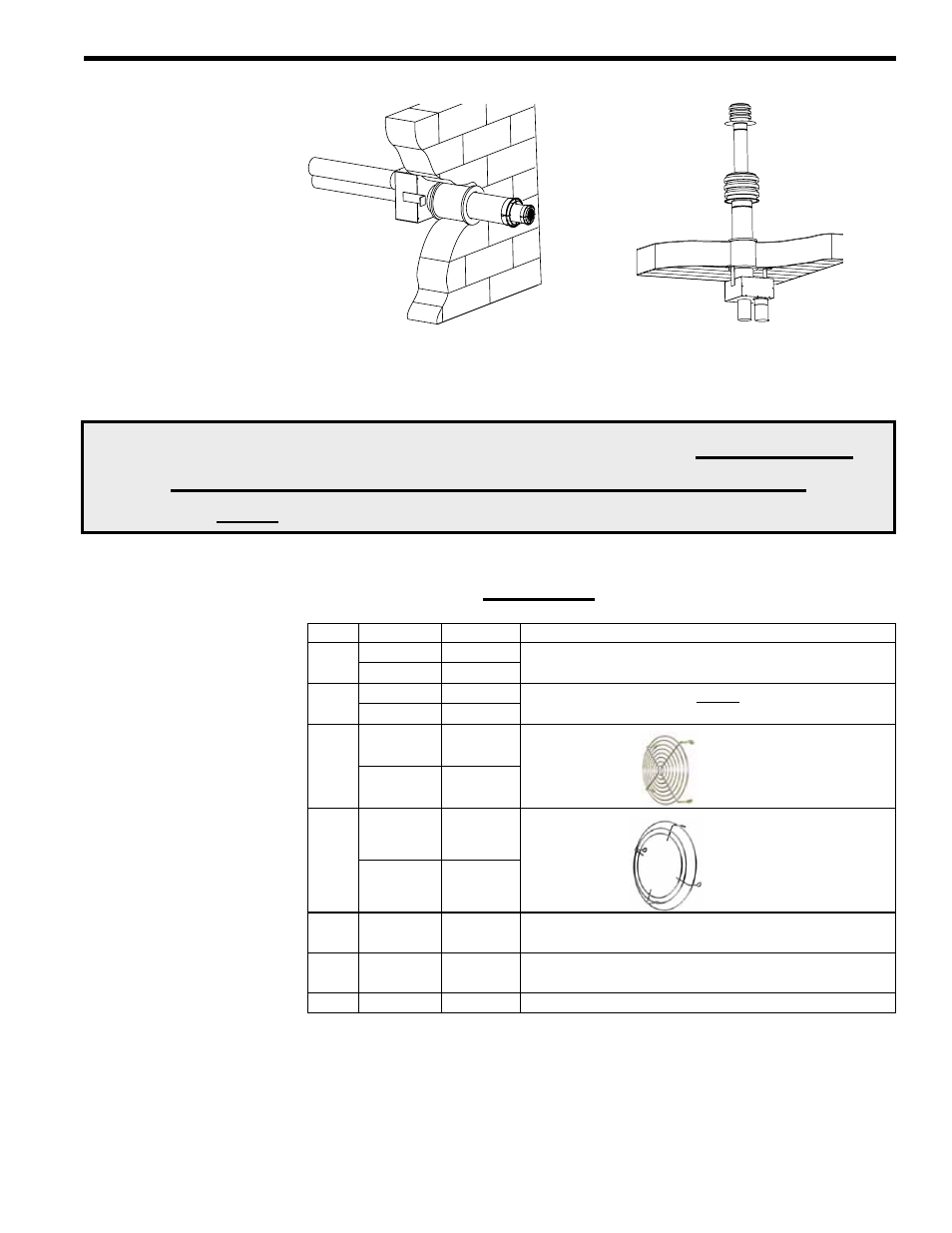

FIGURE 10 - Is

the Separated-

Combustion Vent/

Combustion Air

System Horizontal or

Vertical?

HORIZONTAL OR VERTICAL VENT TERMINAL?

Vent Terminal Instructions apply to both a Residential

and a Commercial/Industrial Type of Installation

NOTE: Only UDAS 30, 45, 60, 75, 100, and 125 are certified for residential use.

2.0 HORIZONTAL VENT INSTRUCTIONS - Option CC6

2.1 Components

Required - Factory

and Field

TABLE 4 - Parts in

the Horizontal Vent/

Combustion Air

Terminal Package

(Option CC6)

Field-supplied

requirements:

• Vent pipes - see type requirements, page 3

• Combustion air pipes - see type requirements, page 3

• Taper-type vent pipe diameter reducers and/or increasers as required

• Thimble (a thimble is not required if wall is of non-combustible construction)

• Flashing

• Sheetmetal screws, tape, and sealant as required

Qty

Sizes

P/N

Description

1

30-125

211762 Complete Horizontal Vent/Combustion Air Terminal

Kit (Same as Option CC6)

150-400

211763

1

30-125

211789 Concentric Adapter Box (NOTE: Refer to FIGURE 6,

page 7, and verify diameter of vent pipe opening.)

150-400

211790

1

30-125

211791

Exhaust Grill

150-400

211792

1

30-125

151755

Inlet Guard

150-400

124940

8

30-400

37661 #10-16 x 1/2” long Screws to attach the exhaust grill

and the inlet guard

2

30-400

207232 Brackets for attaching Concentric Adapter Box (See

FIGURE 11, page 11.)

1

30-400

53335 Tube of High Temperature (450°F) Silicone Sealant
