1.1 Type of Pipe

All pipe is field supplied. Select installation type that applies. Requirements are listed

for both the vent pipe and the combustion air inlet pipe.

1.1.1 Residential Installation - Pipe Requirements

NOTE: Only UDAS 30, 45, 60, 75, 100, and 125 are certified for residential use.

1.1.2 Commercial/Industrial Installation - Pipe Requirements

Horizontal or Vertical

Vent Pipe Run

Vent pipe approved to UL Std 1738 for a Category III appliance is required.
The horizontal section of pipe in the vent terminal that extends through the box

and runs concentric through the combustion air pipe must be one-piece with no

joints.

Horizontal Vent Terminal

(using Option CC6 Kit)
Vertical Vent Terminal

(using Option CC2 Kit)

Double-wall vent pipe approved to UL Std 1738 for a Category III appliance is

required The section of pipe in the vent terminal that extends through the box

and runs concentric through the combustion air pipe must be one-piece with no

joints.

Combustion Air Inlet Pipe

(Options CC2 & CC6)

Sealed, single-wall galvanized pipe is recommended for inlet air run and terminal

combustion air pipe.

1.2 Venter Outlet and

Combustion Air

Inlet

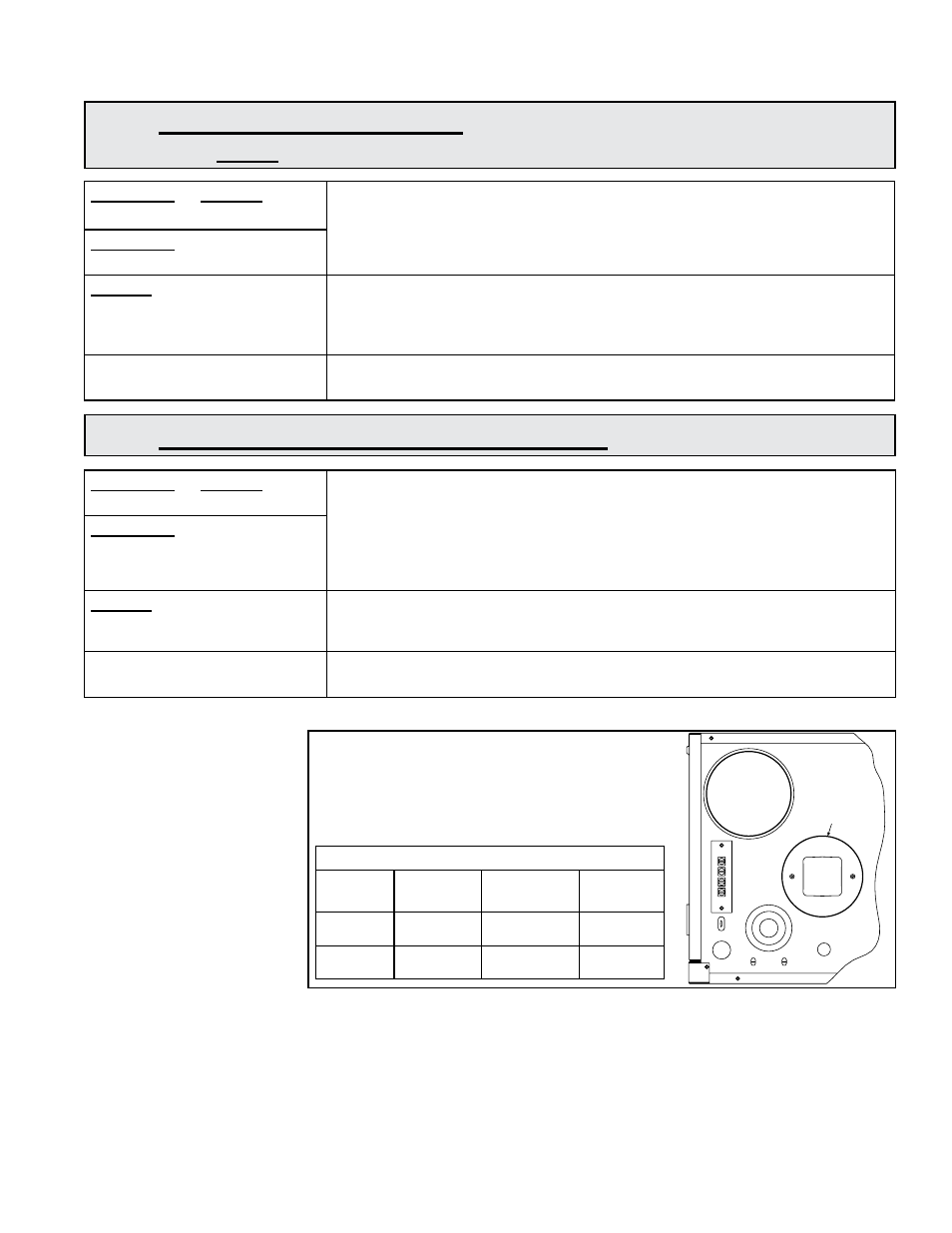

FIGURE 1 - Rear of Heater showing

Location of Inlet and Outlet

Connections

Note: Small unit is illustrated. Larger units have

slightly different orientation.

Inlet Air

Collar

Venter

Outlet

TABLE 1 - Heater Connections (diameter)

UDAS and

UDBS

30, 45, 60,

75, 100, 125

150, 175, 200,

225, 250,

300, 350,

400

Venter

Outlet

4” (102mm)

5” (127mm) 6” (152mm)

Inlet Air

Collar

4” (102mm)

6” (152mm) 6” (152mm)

Special Requirements

at the Heater

Connections

• Sizes 30, 45, and 60 - When using 3” diameter pipe, a 4” to 3” (102 to 76mm)

taper-type reducer is required at the venter outlet. For Category III, attach a 4”

appliance adapter from Category III pipe manufacturer directly to the collar, then

use a reducer if using 3” pipe.

• Sizes 30, 45, and 60 - When using 3” diameter pipe, a 3” to 4” (76 to 102mm)

taper-type increaser is required at the inlet air collar.

• Sizes 200, 225, 250, 300, 350, and 400 require a minimum of 12” (305 mm) of

straight pipe at both heater connections.

Horizontal or Vertical Vent

Pipe Run

Vent pipe approved for a Category III appliance OR single-wall, 26-gauge or

heavier galvanized or equivalent vent pipe is required between the heater and

the concentric adapter box.
The horizontal section of pipe in the vent terminal that extends through the box

and runs concentric through the combustion air pipe must be one-piece with no

joints.

Horizontal Vent Terminal

(using Option CC6 Kit)

Vertical Vent Terminal

(using Option CC2 Kit)

Double-wall (Type B) vent pipe is required for the vertical vent terminal. The

section of pipe in the vent terminal that extends through the box and runs

concentric through the combustion air pipe must be one-piece with no joints.

Combustion Air Inlet Pipe

(Options CC2 & CC6)

Sealed, single-wall galvanized pipe is recommended for inlet air run and terminal

combustion air pipe.
