Form I-UD-V-SC, PN195676R17, Page 7

Applies to: Residential or Commercial/Industrial Installation

NOTE: Only UDAS 30, 45, 60, 75, 100, and 125 are certified for residential use.

Concentric Adapter Box in Kits

for UDAS/UDBS Sizes 30-125

Concentric Adapter Box in Kits

for UDAS/UDBS Sizes 150-400

Top View

Top View

Heater Side View

Heater Side View

4” dia.

Combustion

Air Collar

6” Combustion

Air Collar

Opening for

5” vent pipe

to pass through the box --

See TABLE on the left.

Opening

for 4” vent

pipe to pass through the

box - See TABLE, left.

2” (51mm)

2” (51mm)

6-1/32”

(153mm)

6” dia Collar for

Combustion Air

8” dia Collar

for Combus-

tion Air

11”

(279mm)

3-5/8”

(92mm)

4-3/8”

(111mm)

11-3/32” (282mm)

(102mm)

3-1/16”

(78mm)

14-1/4”

(362mm)

(127mm)

5-7/32”

(133mm)

5-9/32”

(134mm)

(102mm)

13-3/8” (340mm)

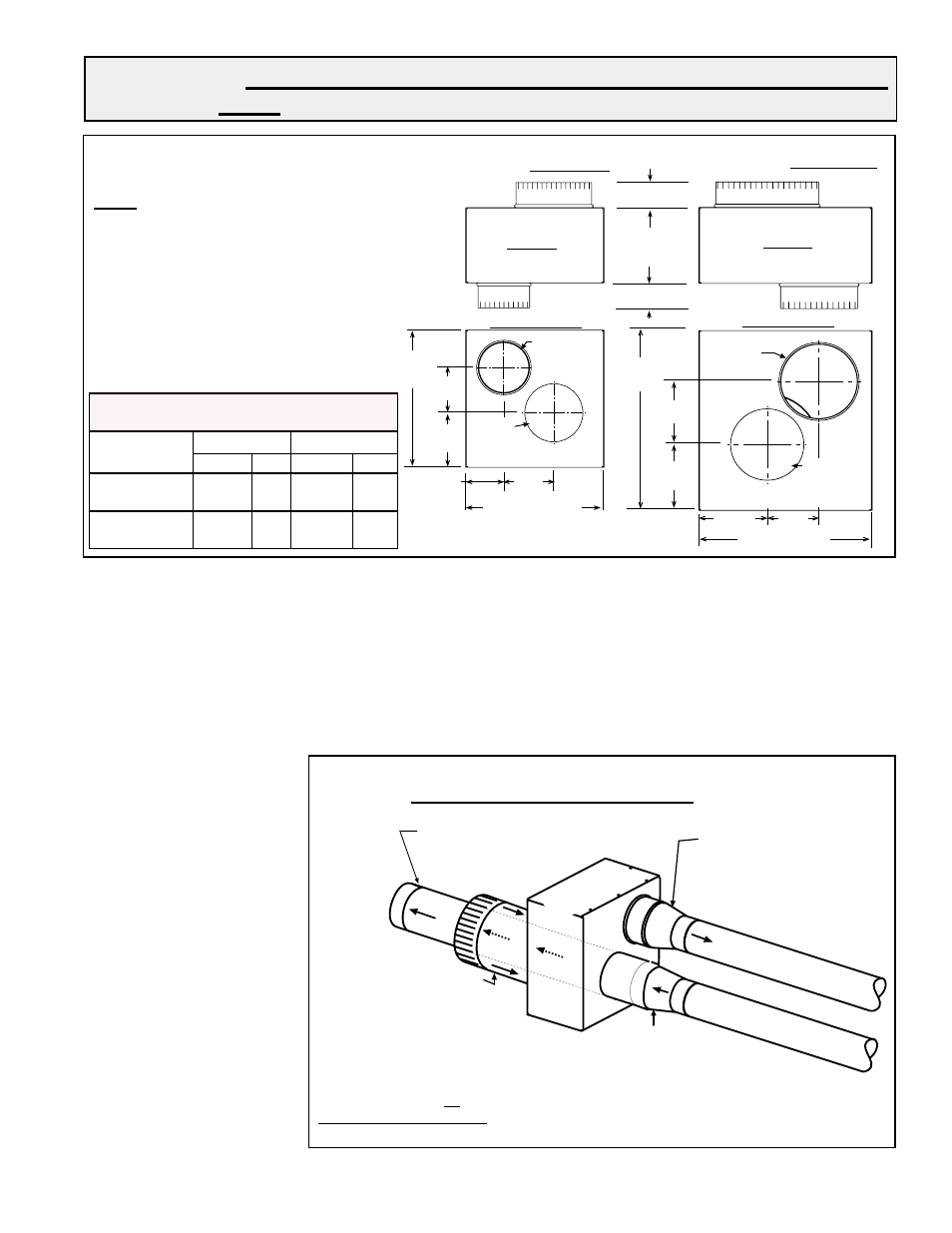

FIGURE 6 - Concentric

Adapter Box Dimensions

NOTE: Horizontal and vertical kits

do not use the same adapter box.

The only difference is the diameter

of the opening in the box for the

vent pipe. A vertical vent requires

double-wall pipe and a slightly

larger opening through the box.

See

TABLE 4 below and P/N list on

page 9 or page 12.

TABLE 4 - Diameter of Opening in the

Box for Vent Pipe to Pass Through

Vent Terminal

Configuration

Sizes 30-125 Sizes 150-400

inches mm inches mm

Horizontal

(Option CC6)

4-1/16 103 5-1/16 129

Vertical

(Option CC2) 4-21/32 118 5-21/32 144

Pipe Connections

at the Concentric

Adapter Box

When pipe diameters differ, depending on direction of airflow, join the pipes with either

a taper-type reducer or increaser. Requirements vary depending on the size of the

heater; refer to

FIGURE 7, 8, or 9 to determine whether or not pipe diameters differ. Do

NOT make actual connections until after reading the instructions and length require-

ments for installing the vent/combustion air kit (Paragraph 2.0 or 3.0).

The connec-

tion requirements are the same for both vertical and horizontal systems, but the

length of pipe required varies by installation.

• If using 3” (76mm)

diameter pipes, Sizes

30, 45, and 60 require a

3” to 4” (76 to 102mm)

taper-type increaser in

the vent pipe.

Concentric

Adapter Box

Install a 3 to 4 inch

(76 to 102mm) taper-type

pipe diameter increaser a

maximum of 6” (152mm)

from the concentric adapter box.

If using 3” (76mm) pipe,

install 4 to 3 inch (102 to

76mm) taper-type pipe

diameter reducer at the

inlet air collar on the

concentric adapter box.

Models UDAS and

UDBS 30, 45, and 60 -

Pipe Diameters and

Connections Required at

the Concentric Adapter

Box When Using 3”

(76mm) Diameter Pipes

4” (102mm) diameter vent pipe

(Type of vent pipe must comply with

requirements on page 3.)

6” (152mm) diameter

single-wall inlet air pipe

3” (76mm) diameter

single-wall inlet air pipe

3” (76mm) diameter

vent pipe *

* Type of vent pipe must comply with

requirements on page 3.

• If using 3” (76mm)

diameter pipes, Sizes

30, 45, and 60 require a

4” to 3” (102 to 76mm)

taper-type reducer on

the combustion air pipe

collar.

FIGURE 7 - Concentric Adapter Box Connections for Sizes 30,

45, and 60 using 3” (76mm) diameter pipes
