3.0 Dimensions

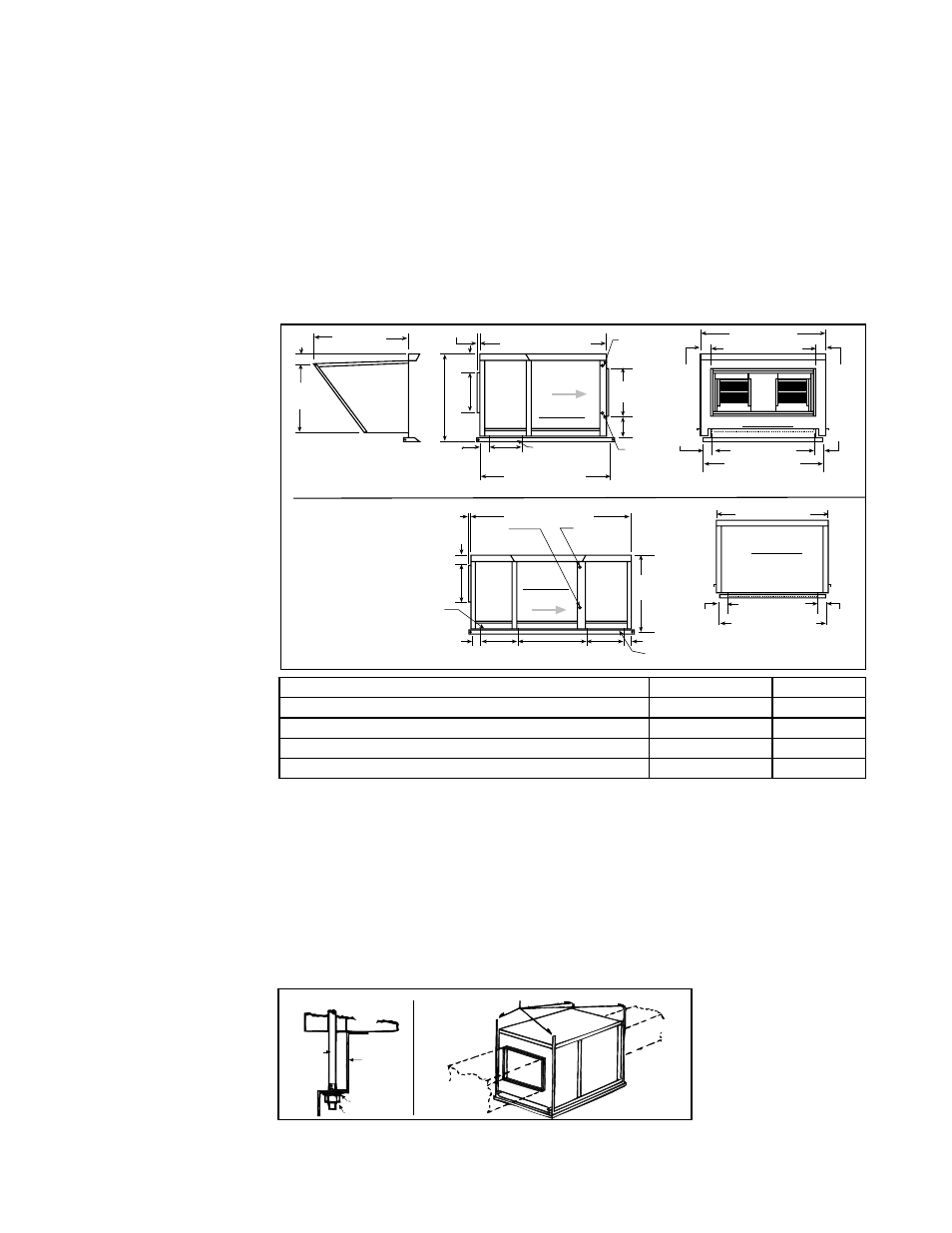

FIGURE 1 - Model RBL
Dimensions - inches
(mm)
2.0 Uncrating
Model RBL Air Openings (with duct flange) inches (mm)
Standard Horizontal Inlet Air Opening 19-1/2 x 47-5/8 495 x 1210
Optional Bottom Return Air Inlet Air Opening 19-1/2 x 47-5/8 495 x 1210
Standard Horizontal Discharge Air Opening 22-1/8 x 48-15/16 562 x 1243
Btm Discharge Air Opening w/Downturn Plenum Cabinet 19-1/2 x 47-5/8 495 x 1210
Optional
100% Outside
Air Inlet
Hood
43-17/32
1,106
31-11/32
(796)
4-5/8
(117)
19-1/2 (495
)
40-19/32 (1,031)
1-1/32 (26)
59-7/32 (1,504)
19-1/2
(495)
3-7/8
(98)
Optional Return
Air Opening
60-7/16 (1,535)
Inside Curb
9-15/16
(252)
22-1/8
(562)
Field
Line
Voltage
Connection
Field
Control
Connection
Airflow
4-31/32
(126)
4-31/32
(126)
48-15/16 (1,243)
58-7/8 (1,495)
4-5/32
(106)
4-5/32
(106)
47-5/8 (1,210)
55-15/16 (1,421)
Inside Curb
Airflow
19-1/2
(495)
1-1/32 (26)
5
(127)
5 (127)
19-1/2
(495)
19-1/2
(495)
4-3/32
(102)
4-3/32 (102)
36-5/16
(922)
Field
Line Voltage
Connection
Field
Control
Connection
Optional
Return Air
Opening
40-19/32
(1,031)
84-11/32 (2,142)
Optional Supply Air Opening
4-5/32
(106)
4-5/32
(106)
47-5/8 (1,210)
55-15/16 (1,421)
Inside Curb
58-7/8 (1,495)
Front View
Downturn Plenum
Cabinet
Side View
Side View
Front View
Dimensions -
Model RBL
with Optional
Downturn Plenum
Immediately upon uncrating the unit, check for any damage that may have been
incurred during shipment. If damage is found, document the damage with the trans-
porting agency and contact your Reznor Distributor. This unit was inspected at the
factory immediately prior to crating.
Check the blower cabinet plate to be sure that the electrical characteristics of the
blower cabinet are compatible with the installation site.
Be sure all shipped-separate options for the installation are available. Shipped-sep-
arate options could include a roof curb, an outside air hood, a disconnect switch, an
evaporative cooling module, and/or freeze protection kit for an evaporative cooling
module.
1.0 General
(cont'd)
Duct Opening
Dimensions
4.0 Suspending
and Mounting
FIGURE 2 -
Blower Cabinet
Suspended
by Four Rod
Hangers
Weight - Before installing the blower cabinet, check the supporting structure to verify
that it has sufficient load-carrying capacity to support the weight. Model RBL weighs
488 lbs (221 kg).
Depending on the building structure and its use, determine whether or not measures
should be taken to reduce the effect of blower vibration and/or noise. Determining the
need for and installing vibration isolation is the responsibility of the installer.
Suspending Indoor
Cabinet
Blower cabinets may be suspended using field-furnished rod hangers. Insert 1/2" rods
into the holes at the corners of the curb cap. Attach rods to the unit as illustrated in
FIGURE 2. Attach rods to the building structure. Proper suspension of this cabinet is
the responsibility of the installer.
(4) Rod Hangers
Discharge
Air
Return or
Outside Inlet
Air Duct
Unit
Unit Base
Lockwasher
1/2-13 Nut
1/2” Rod
Support Rod Detail Suspend
with
Four Rod
Hangers
Mounting Outdoor
Cabinet
Model RBL blower cabinet is equipped with a load bearing curb cap which forms an
integral part of the unit. This curb cap is welded at all joints and has a "skirt" which fits
over a roof curb to provide a weatherproof installation. Use the lifting lugs provided.
1.3 Warranty
Refer to the limited warranty information on the Warranty Form in the "Owner's Enve-
lope" shipped with the unit.
