Reznor VPT Unit Installation Manual - Manual (Page 3)

3
Structures, ANSI/NFPA 88A, or the
Standard for Repair Garages, ANSI/NFPA
88B, or the Canadian Natural Gas and
Propane Installation Code, CSA B149.1,
and are so marked.
Ensure that minimum clearances will be
maintained to vehicles parked below the
heater.
F. The standard heaters are approved for
installations between 0 - 2000ft (0 - 610m)
for the US and 0 - 4500 ft (1370m) for
Canada. Conversion kits are available for
installations above these heights in the
USA.
G.
H. Massachusetts Requirement: If the heater
is being installed in the Commonwealth of
Massachusetts, this unit must be installed
by a licensed plumber or licenced gas fitter.
1.2 Heater Suspension
Attachment to the heater support lugs should
be made by D shackle. The hanging
attachments to overhead steelwork etc. must
be purpose made to sound engineering
practice or supplied to others. They must be
adequately fixed and designed to carry the
whole weight of the heater. In the event of
suitable roof steelwork being unavailable,
additional steelwork should be fitted to enable
vertical hangers to be used for suspending the
heaters.
These methods are illustrated in Figure 1. If
there are any doubts as to the strength or
suitability of roof steelwork to which heaters are
to be suspended, please refer to a Consultant,
Architect or owner of the building.
It is recommended that the heater is raised to its
final position once the assembly of the tube/
bracket/reflector has been completed. Longer
tube assemblies may be raised in more than
one sub-assembly with final tube connection
made in the air.
Ensure that the installer uses the burner roof
support mounting bracket when suspending the
heater. This is situated on the front of the
burner. When packed the bracket is reversed
and must be turned to its correct state for
mounting. (ref page 15)

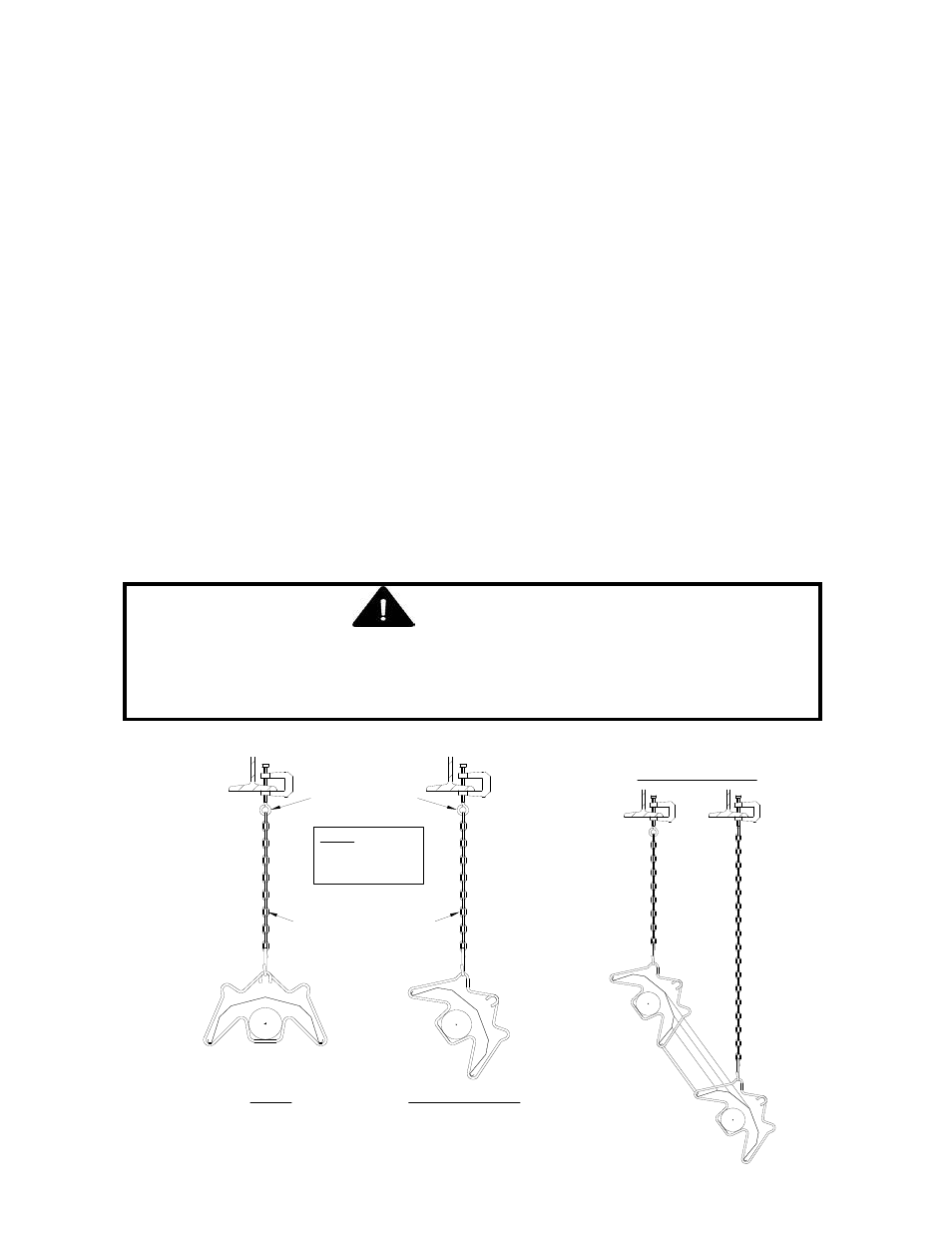

DROP ROD CHAIN 55° SUSPENSION
BEAM CLAMP
3/8"Ø ROD
TURNBUCKLE
(±3"ADJUSTMENT)
2/0 GA CHAIN
(TWISTED LINK, PLATED)
NOTE.
HOOKS ARE TO
BE CLOSED UP
AFTER ASSEMBLY
OPTIONAL
EYE HOOKS
TUBE
REFLECTOR
BRACKET
Figure 1. Recommended Methods of Heater Suspension.
WARNING:
If not installed, operated and maintained in accordance with the manufacturer’s
instructions, this product could expose you to substances in fuel or from fuel combustion
which are known to the state of California to cause cancer, birth defects or other
reproductive harm.
CHAIN 55° SUSPENSION
2/0 GA CHAIN
(TWISTED LINK, PLATED)
NOTE.
HOOKS ARE TO
BE CLOSED UP
AFTER ASSEMBLY
EYE HOOKS
EXHAUST
END
BURNER
END
U TUBE VARIANTS
Suitable Chain
Working Load Limit
