RED ROCKET-X INSTALLATION INSTRUCTIONS
COPYRIGHT © 2014 RED.COM, INC
955-0033, REV-B
|
7

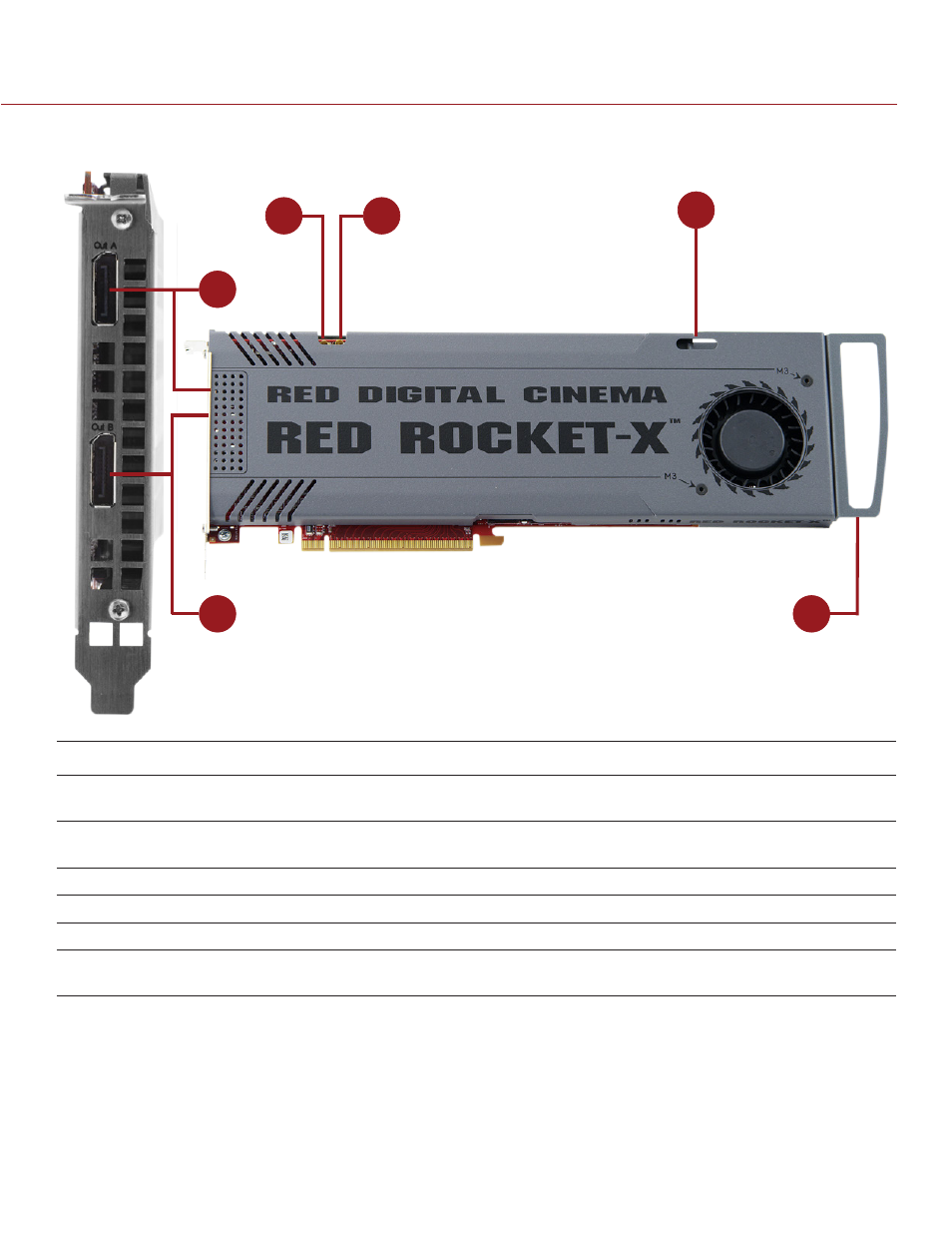

OVERVIEW OF THE RED ROCKET-X
2
3
4
5
1
6
#
ITEM
DESCRIPTION
1
SDI Out A
MCX connector for an output of digital video signals (serial digital interface, port
A); either output of YUV in single-link or first stream of RGB in dual-link mode
2
SDI Out B
MCX connector for an output of digital video signals (serial digital interface, port
B); output of the second stream of RGB in dual-link mode
3
Out A
Dual Mode DisplayPort (DP++) output connector
4
Out B
Dual Mode DisplayPort (DP++) output connector
5
Power
6-pin PCIe female connector
6
PC extender
PCIe slots in PCs are too long for the RED ROCKET-X; attach the PC extender to
ensure that the RED ROCKET-X fits securely in the PCIe slot and PCIe card holder
