RED ROCKET-X INSTALLATION INSTRUCTIONS
COPYRIGHT © 2014 RED.COM, INC
955-0033, REV-B
|
11

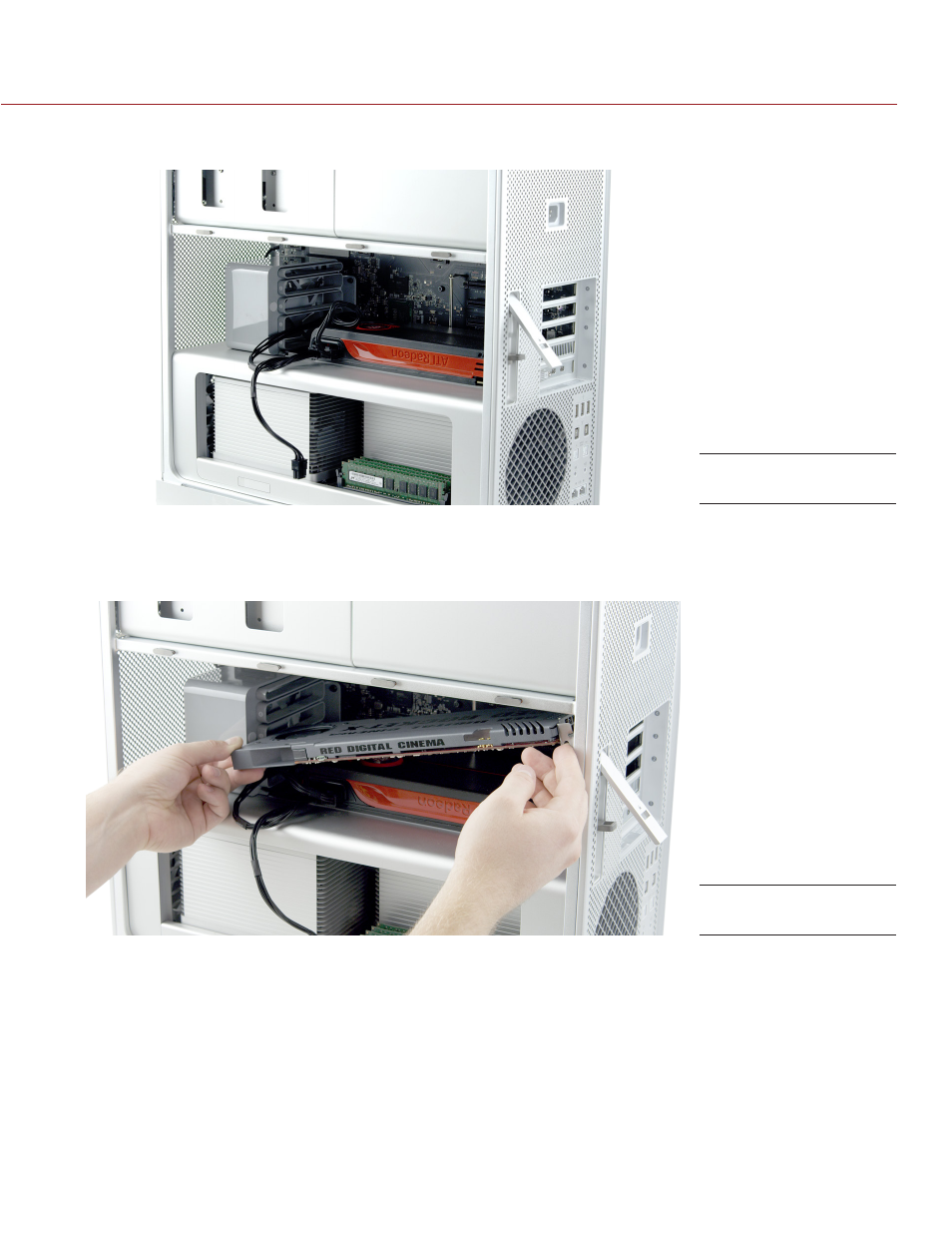

12. Feed the 6-pin PCIe power cable outside of the computer so that it’s not in your way when you install the
RED ROCKET-X.
13. Angle the RED ROCKET-X so that the end with the DisplayPort connections is angled toward the upper
right corner.
14. Insert the RED ROCKET-X into the system so that the metal bracket at the end with the DisplayPort con-
nections clears the top.
15. Straighten the RED ROCKET-X.
Connect Power
Angle RED ROCKET-X
