Page 17

RED ROCKET-X INSTALLATION INSTRUCTIONS

955-0033, REV-B

8. Plug your system’s 6-pin PCIe power cable into the RED ROCKET-X. Make sure that the latch of the power

cable aligns with the corresponding slot on the RED ROCKET-X. For more information, go to

9. If the chassis has any screws that are intended to secure the card to the chassis, install those screws.
10. If you’re using the HD-SDI slot filler, follow the instructions below to install and connect the HD-SDI slot

filler:

A. Remove one (1) free slot bracket from the system.
B. Slide the HD-SDI slot filler into the empty slot so that the SDI Out B connector is toward the back.

CAUTION: Ensure that the HD-SDI slot filler or connectors DO NOT contact other components inside the

chassis.

C. Hand-tighten the screw that attaches the HD-SDI slot filler to the chassis. If it is difficult to hand-tighten

the screw, use a Phillips #1 screwdriver.

D. Connect the SDI Out A cable on the HD-SDI slot filler to the SDI Out A connector on the RED ROCKET-X.

The SDI Out A connector is the right connector when the RED ROCKET-X is installed.

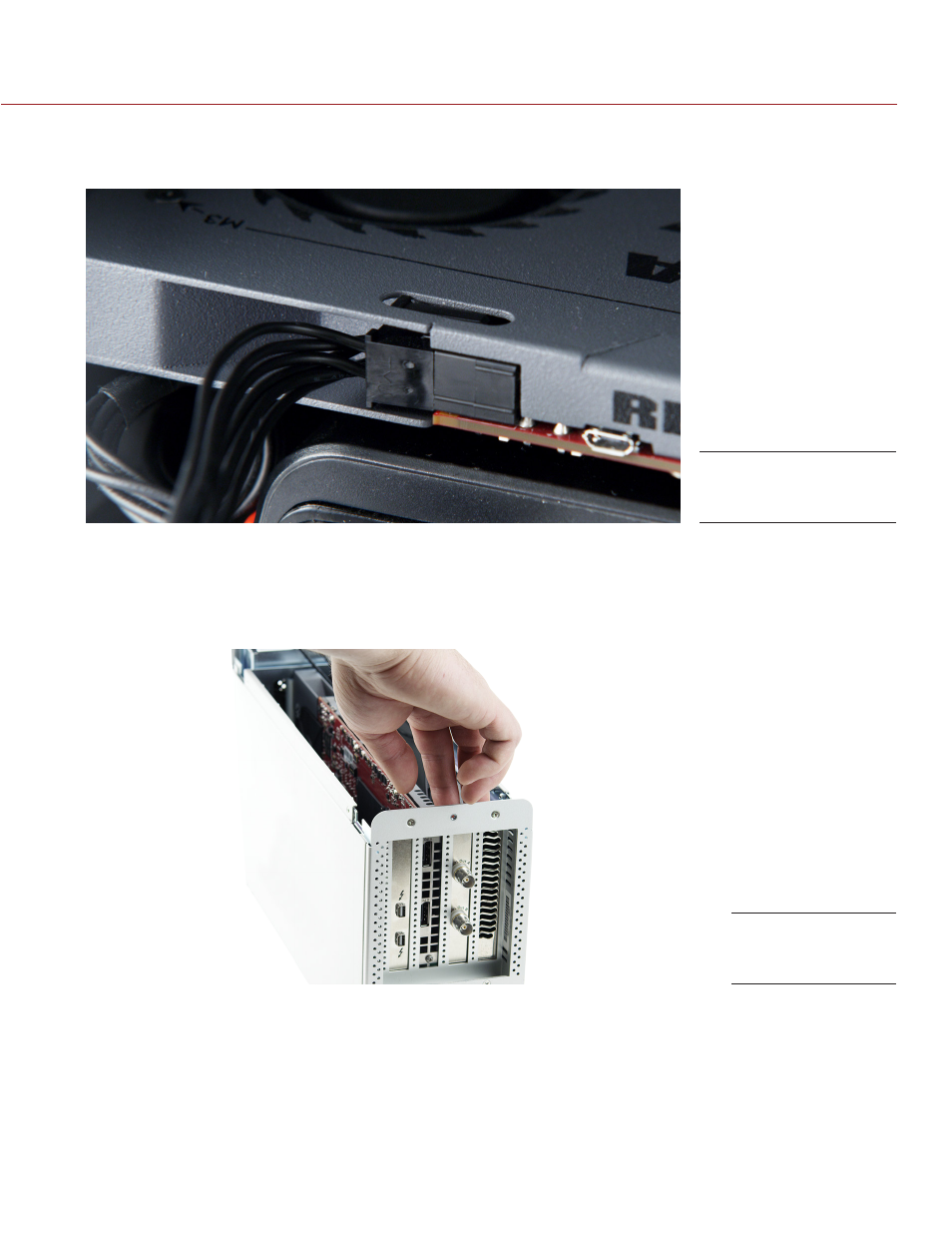

Connect Power to

RED ROCKET-X

Install HD-SDI

Slot Filler
