18
Polarity Reversal and City Tie Module (Model:PR-5100) Terminal Connections
See Appendix C on page 37 for module specifi cations. Wire as shown in Figure 15 below using proper wire gauges. Refer to
LT-877POT for more details.
Note that for use in the USA, the installer must add an Atlantic Scientifi c (Tel. 407-725-8000) Model #24544 Protective Device,
or similar ULI-Listed QVRG Secondary Protector, as shown. For use in Canada, the protective device is still recommended, but
the PR-5100 may be connected directly to polarity reversal and city tie wiring.
If UDACT-9100 and PR-5100 are used then
Protector not needed. UDACT-9100 has integral protector and PR-5100 is plugged into it.
Notes:
The terminal blocks are “depluggable” for ease of wiring. •
The city tie interface is •
not power limited.
Use either the PR-5100’s City Tie or Reverse Polarity Interface Module - not both. •

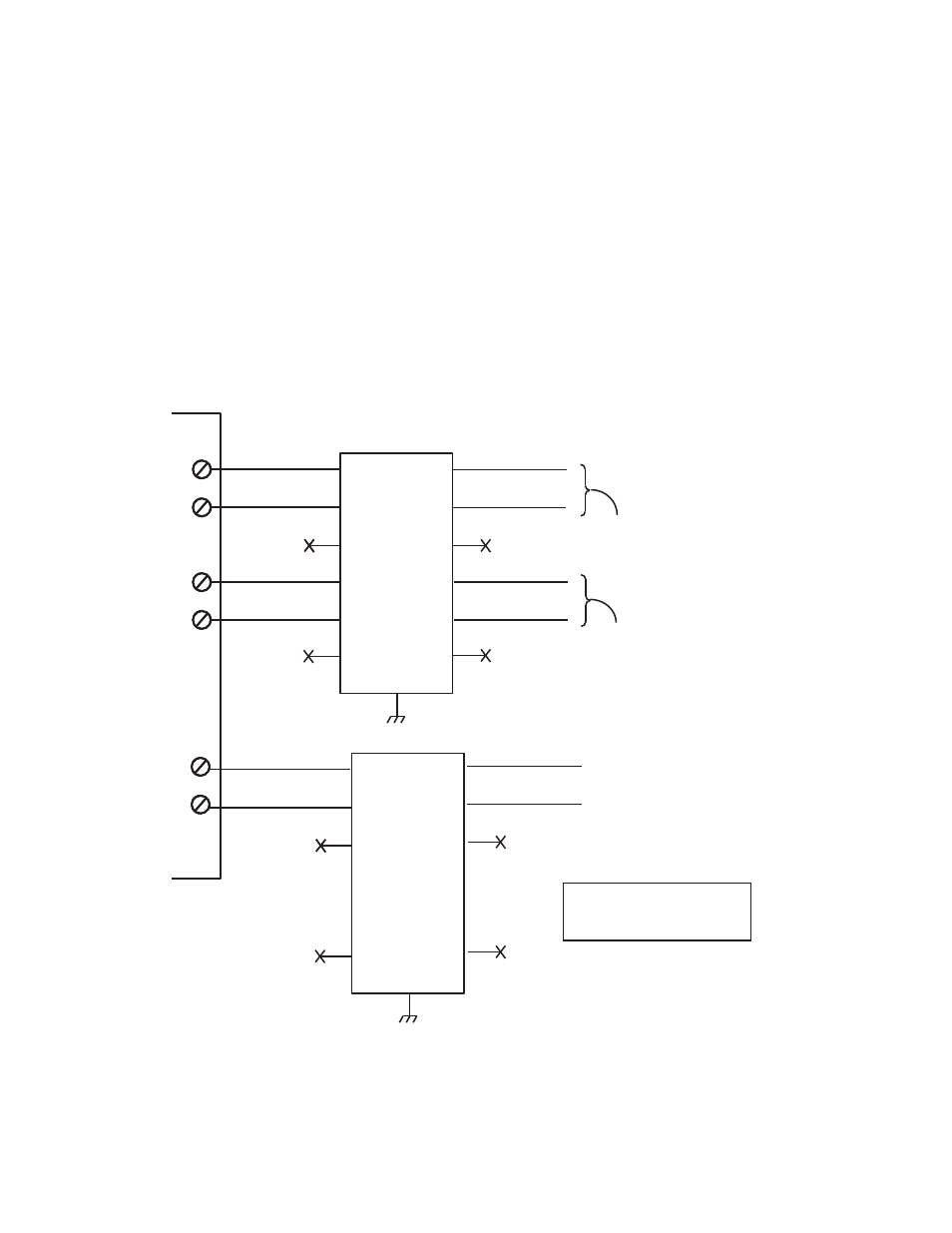

Figure 15: PR-5100 Polarity Reversal and City Tie Module Terminal Connections
When wiring devices, please keep in mind the following:
Plug PR-5100 ribbon cable (P1) into the main fi re alarm module. •
All circuits are power limited and must use type FPL, FPLR, or FPLP power limited cable. •
For polarity reversal operation, short the city tie connection. •
+
-
USE A SHORTING WIRE WHEN
THE CITY TIE IS NOT IN USE.
PROTECTED
+
-
2
1
S
1
2
S
1
1
2
2
S
S
POLARITY REVERSAL ALARM
24VDC OPEN
12VDC AT 3.5 mA
8 mA MAX SHORT
PR-5100
UNPROTECTED
+
+
-
-
DIN RAIL CONNECTION
TO EARTH GROUND
CITY TIE LOCAL ENERGY
RATED 24 VDC FILTERED
TRIP COIL 14 OHMS,
250mA, 5mV RIPPLE
CONFORMS TO NEMA STANDARD
SB3-1969 INTENDED FOR
CONNECTION TO POLARITY
REVERSAL CIRCUIT OF A REMOTE
STATION RECEIVING UNIT HAVING
COMPATIBLE RATINGS.
PROTECTOR
1
2
S
1
2
S
UNPROTECTED
PROTECTOR
PROTECTED
2
1
S
1
2
S
+
-
DIN RAIL CONNECTION
TO EARTH GROUND
POWER LIMITED
POWER LIMITED
+
POLARITY REVERSAL SUPV
24VDC OPEN
12VDC AT 3.5 mA
8 mA MAX SHORT
POWER LIMITED CABLE TYPE FPL,
FPLR OR FPLP MUST BE USED FROM
PR-5100 TO PROTECTORS
