Field Wiring
General Field Wiring Considerations
Because most of the Field Wiring on the PFC-5000’s is to the Main Boards on the swinging dead front, it is very important to
properly dress the wires so as not to place stress on either their connection to the boards, or runs to conduit. The Figure below
shows the required wiring techniques.

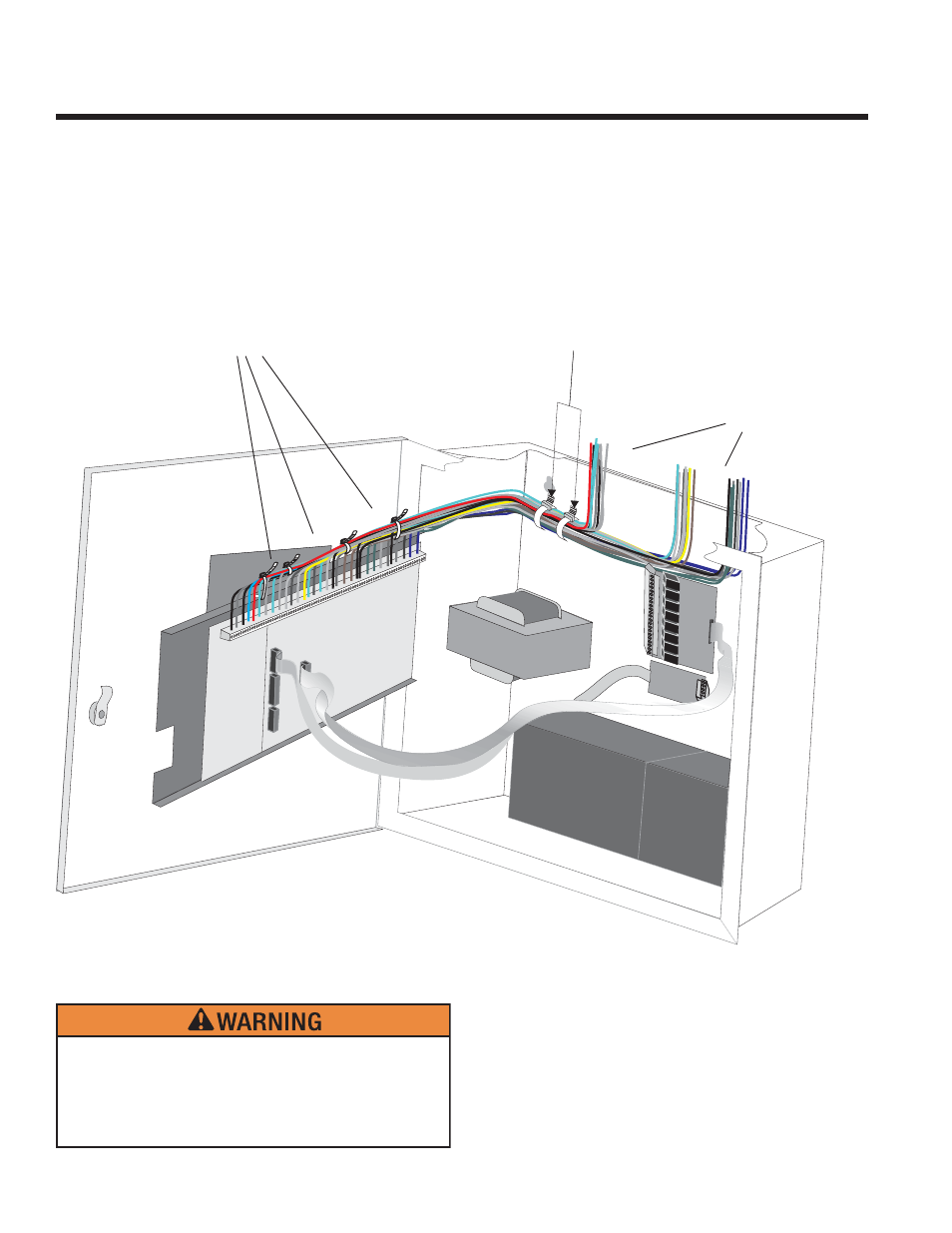

Figure 10: General Field Wiring Considerations
USE AT LEAST 3 WIRE TIES
AS SUPPLIED THROUGH
HOLES ON DEADFRONT
WIRE TIE IN 2 PLACES TO
BACK OF ENCLOSURE
DRESS WIRES NEAR TOP
OF ENCLOSURE CLEAR OF
ADDER MODULES
Do not run panel line voltage in the same conduit as
initiating circuits. Undesired transient voltage could
cause faults on initiating circuits.
