Modules mounting locations – Potter PFC-5000 Series User Manual
Page 11
7
Modules Mounting Locations
The PFC-5000 Series come pre-assembled with all components and boards, except for adder modules. Module installation locations
are shown below.
Be sure to connect a solid Earth Ground (from building system ground or cold water pipe) to the Chassis Earth Ground Mounting
Lug, and to connect the Earth Ground Wire Lugs from the Main Chassis to the ground screw on the backbox.

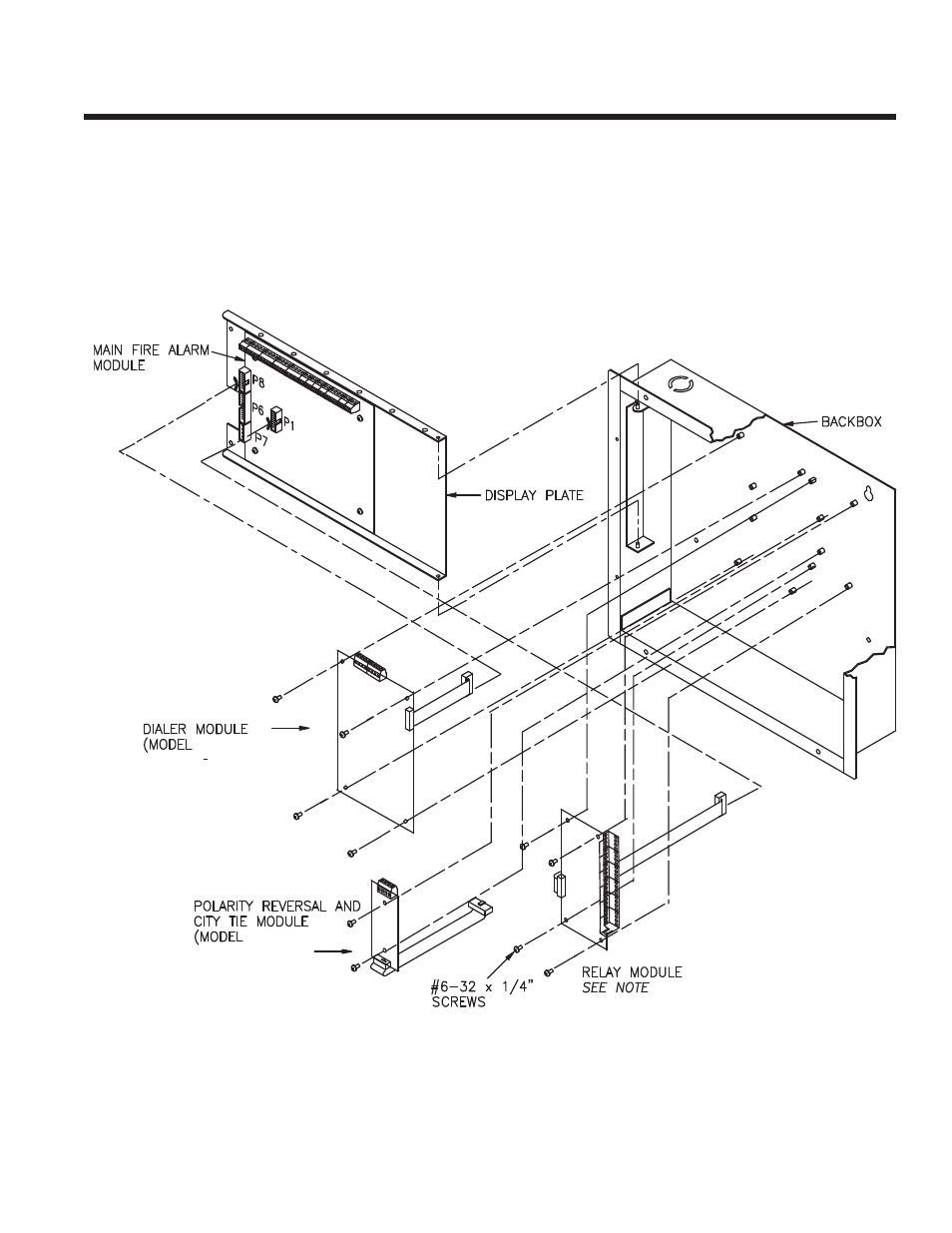

Figure 3: PFC-5002 and PFC-5004 Module Mounting Locations
Note:
1. Relay module may be Model ARM-4 or ARM-8.
2. Only two of PR-5100, UDACT-9100 or ARM-4/ARM-8 may be installed.
UDACT-9100)
PR-5100)
