Novak Atom and Cyclone ESC User Manual
Page 25
CYCLONE & ATOM INSTRUCTION MANUAL
25
MOUNTING THE BRAKE LIGHT BRACKETS
The brake light brackets can be mounted behind the taillight
section of the car body, or onto most any vertical or horizon-
tal surface on the chassis or body.
• To mount the brackets to the taillight section, insert the
screws through holes in the car body and into the screw
openings in the bracket.
• To mount the brackets to the chassis, either use Shoe-
Goo™, double-sided mounting tape, the existing screw
hole, or drill two holes at the proper spacing.
Congratulations!
You’ve just made your R/C car even hotter by adding real-
istic brake lights which will operate when your Cyclone is
in neutral or during braking. Have fun!
Twist or solder the two small
ESC brake light wires to wires
on JST harness(es). Seal
connection with shrink tubing.
Insert LED into mounting
bracket and connect the
LED’s metal leads to JST
connector harness.

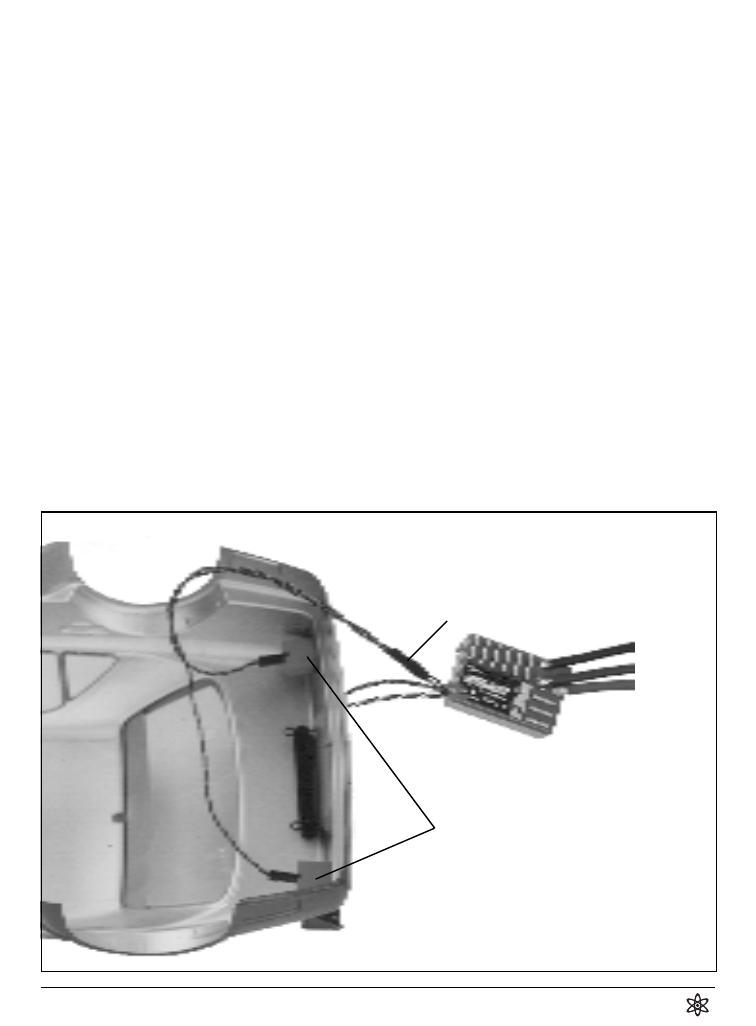

FIGURE 16 Brake Light Set-Up Photo
Installing Brake Lights (continued)
