CYCLONE & ATOM INSTRUCTION MANUAL 11
Make a small splice on the black and red power wires. Solder
the power capacitor’s negative lead to the splice on the black
power wire. Solder the power capacitor’s positive lead to the
splice on the red power wire.
Slide the included large heat shrink tubing over the capacitor
and connection. This will protect the capacitor from vibration
and the capacitor’s leads from short-circuiting.
4. INSTALL POWER WIRES
The Cyclone comes with Super-Flex 12™ gauge power wires
and the Atom comes with 14 gauge power wires which
solder onto low-resistance Solder Posts. With the use of
Solder Posts, you can change what gauge power wire is used,
the position of the wires, and replace the wires with ease.
Sets containing blue, red, and black pre-tinned wires are
available in Novak Kits #5507 for 14G, #5517 for 16G, and
#5537 for Super-Flex 12™.
Continued
STEP 3: Hook-Up Instructions (continued)
NOTE: Power Capacitor
should be attached where
it fits your car best (top or
bottom of power wires).

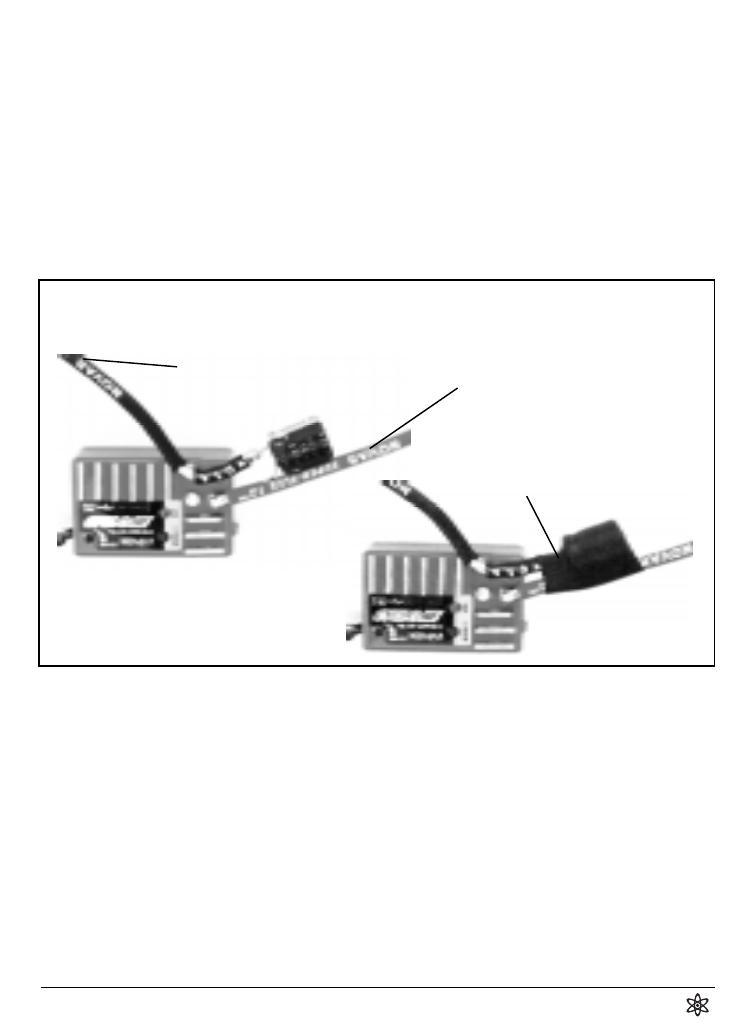

FIGURE 10 Example of Method Two, Power Capacitor soldered to
the Cyclone’s (or Atom’s) red & black Power Wires.
A
Red Power Wire
(to Battery & Motor Positive) Black Power Wire
(to Battery Negative)
B
Heat-Shrink Tubing will
protect the capacitor from
vibration and short-circuits.
