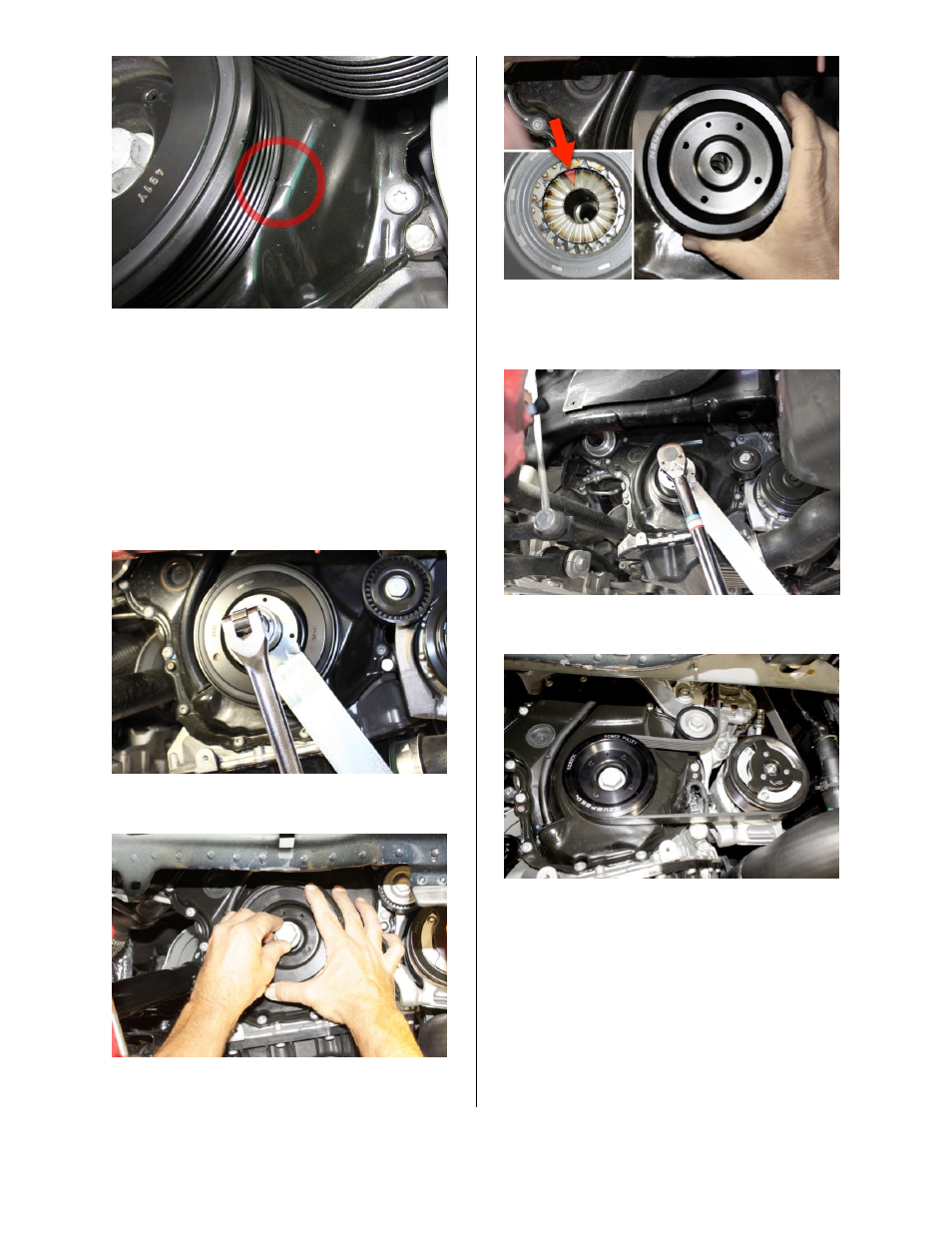

8. The notch on the pulley must line-up with the

arrow marking on the lower timing chain cover

located at the 4 o’clock position.

CAUTION: THE CRANKSHAFT MUST
NOT BE MOVED OUT OF THE “TDC”
POSITION WHEN THE PULLEY AND
BOLT IS REMOVED OR ENGINE
DAMAGE WILL RESULT. DO NOT LET
ENGINE TURN WHEN REMOVING OR
TIGHTENING PULLEY BOLT.

9. Loosen pulley bolt using 24mm socket with long

handle breaker bar and T10355 Counter Holder

tool to hold engine from turning.

10. Apply pressure on pulley to crankshaft to hold in

place when un-screwing bolt. Remove bolt and

pulley.

11. Use a little oil on timing cover seal and “O” ring

on bolt. Install NEUSPEED pulley matching up

tooth contour on pulley with crankshaft chain

sprocket, while holding against chain sprocket

install new bolt supplied and hand tighten.

12. Torque bolt to 150Nm (111 ft. lbs.) + 90° (¼)

turn with torque wrench and T10355 Counter

Holder tool. Then install supplied ribbed belt.

13. Re-install fender liner and lower engine splash

guard.

14. Re-install wheel and torque to manufactures

recommended specifications.

15. Carefully check complete installation to be sure

all fasteners are tight, the belt is correctly

seated in grooves of each pulley and that

nothing interferes with the pulleys or belt.

prohibited.
