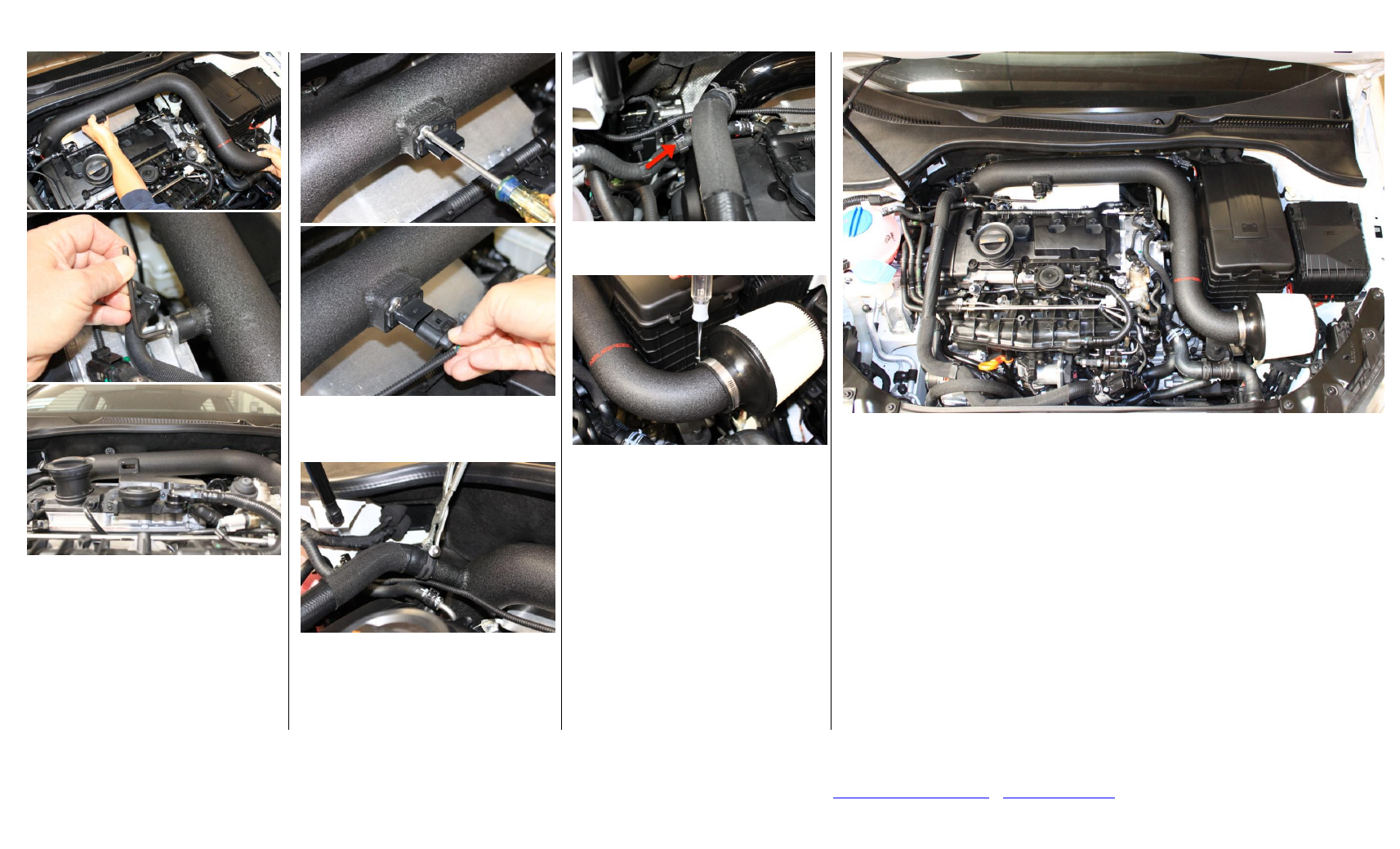

11. Install NEUSPEED intake pipe onto turbo

inlet with #44 clamp supplied and

attach rubber isolator mount to ear on

end of cylinder head with M6x10mm

screw. Intake pipe should be positioned
at an upward angle toward brake fluid

reservoir for engine torque clearance,

now tighten hose clamp and M6 screw.

NOTE: When tightening isolator

mount, do not over tighten – rubber

isolator should not have any

twisting force applied to it.

12. Install MAF sensor (screw holes match-

up one direction only) and tighten with

(2) M4x8mm Philips head screws

supplied. Attach electrical connector.

13. Reconnect Diverter Valve hose.

14. Move MAF sensor wire holder on

coolant hose down to next bend on

hose.

15. Install filter onto end of intake pipe.

16. Double check installation and tightness

of all connections. PLEASE TEST DRIVE

CAREFULLY.
